Website Service ​

Website Service is a service capability provided by Informat for site pages embedded in Informat. It supports communication with the system and provides convenient tools to organically integrate embedded site pages with the system to form a complete whole.

The communication principle is that site pages are embedded in the Informat system through iframe, using postMessage as the inter-page communication tool, and introducing postmessage-rpc.js and rpc.js on the page. In this way, site pages can use the RPC framework provided by Informat to call website services, ensuring seamless integration between site pages and the system, and realizing data interaction and function calls.

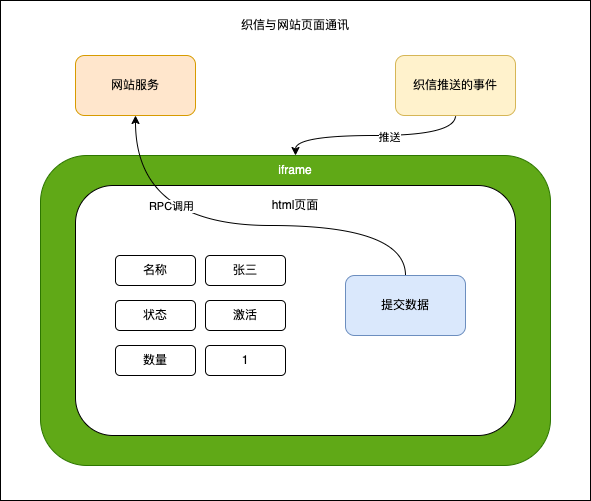

Page Communication

Website Service Call Timing

Since site pages call website services based on RPC channels, all website services must be called after the RPC channel is established.

If you want to call the website service immediately after the page loads, you need to listen for the rpc-ready event (RPC channel establishment success) on the page and call the website service in its callback.

javascript
eventService.onceEvent("rpc-ready", (e) => {
  console.log(e);
});

Available Service Interfaces ​

Quick Start ​

We will demonstrate calling the systemService.toast method immediately after the page rpc channel is established to pop up a prompt box

html
<script src="https://next.informat.cn/js/postmessage-rpc.js"></script>
<script src="https://next.informat.cn/js/rpc.js"></script>
<script>
  // Wait for the RPC communication channel to be established
  eventService.onceEvent("rpc-ready", (e) => {
    // Call website service
    systemService
      .toast("RPC communication channel established successfully")
      .then((result) => {
        // Call successful
      })
      .catch((e) => {
        // Call failed
      });
  });
</script>

Script Resource Reference

For the stability of website services and consistency with the current private deployment version, please use the domain name of the private deployment for the postmessage-rpc.js and rpc.js scripts. If the Informat service is currently deployed at https://test.example.com, the corresponding script addresses are:

html
<script src="https://test.example.com/js/postmessage-rpc.js"></script>
<script src="https://test.example.com/js/rpc.js"></script>

Notes ​

Interface service capabilities can only be used when website pages are embedded in the platform

Development Recommendations ​

  • When developing with tools like VsCode or WebStorm, you can download rpc.d.ts to get the description file for calling website services, and place it in the typings directory of the project to solve code error problems.

  • After importing the downloaded rpc.d.ts into the editor, if the rpc function call still reports an error, you can create an empty jsconfig.json file in the project root directory and restart the editor. The specific file content is as follows:

    json
    {}

  • If you want to debug website services during development, you can add an External Page module to the corresponding application and use the local link address for the embedded address.
