Relation Record Field

Relation Record Field represents displaying specific fields of target table records through field matching. Relation record fields are not stored; data is calculated at runtime. When matching data is empty, the Relation Record Field is also empty.

Description

Item	Content
Category	Association Relationships
Sortable	Same as the associated field
Filterable	Same as the associated field
Supported Filter Types	Same as the associated field

Settings

Setting	Description
Placeholder When Empty	Text displayed in the input box when the field is empty
Matching Method	Set the way to find related records when displaying content of the field. Supports Matching Using Related Record Fields and Matching Using Other Fields
Find from [Relation Record] Field in This Table	When the matching method is Matching Using Related Record Fields, you can establish a relationship with a [Relation Record] in this table
Target Table	When the matching method is Matching Using Other Fields, select the target data table for setting the matching relationship
Field Matching Relationship	When the matching method is Matching Using Other Fields, set the list of fields for matching records between the current table and the target table
Associated Field	Select a field in the form for establishing a relationship to store in this field

Database Storage Format

Not stored in the database

Structure Description

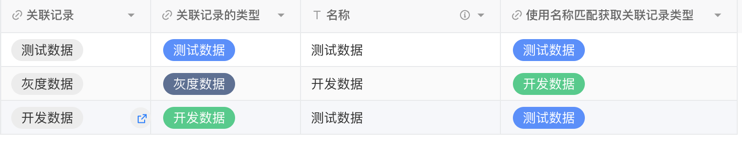

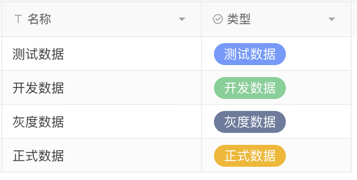

Suppose there are two tables Main Table and Sub Table with data as follows

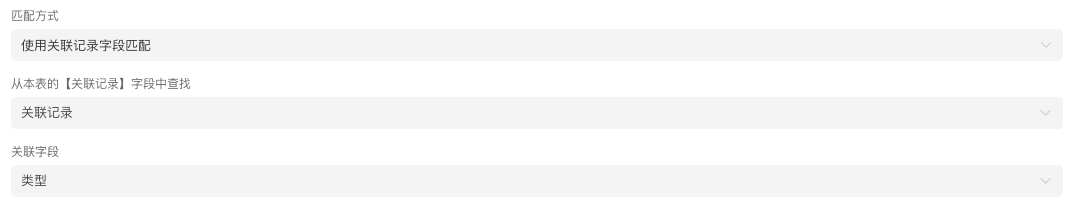

Matching Using Related Record Fields

Select a [Relation Record] in this table to establish a relationship

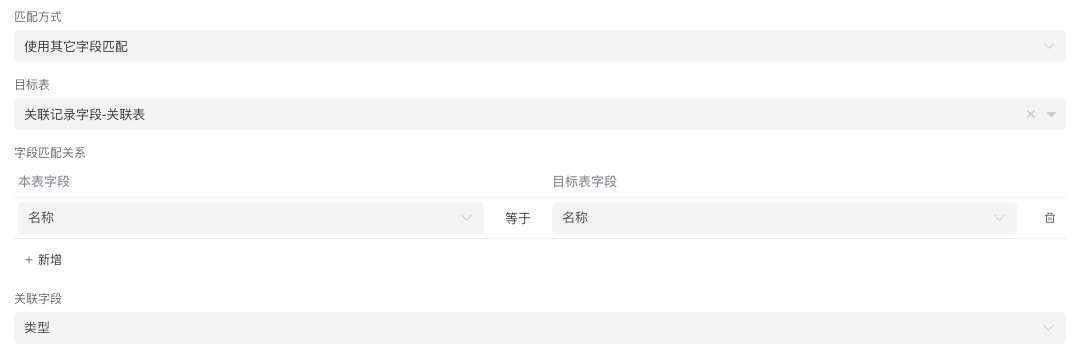

Matching Using Other Fields

After selecting the target table, select fields from the source data table and target table to associate, and multiple association relationships can be built (similar to associated query)

⚠️Note

Improper configuration of association relationships may return a huge Cartesian product.
