Custom Component Field

Use website module pages to customize display controls

Description

Item	Content
Category	Control Class
Sortable	No
Filterable	No
Supported Filter Types	None
Sorting Method	None

Database Storage Format

Not stored in database

Usage Scenarios

Personalized display methods. Such as displaying circular progress bars, transfer boxes, charts, video playback, maps, etc. in fields.
Fields with special interaction logic. Such as image material library, data formulas, etc.

Rendering Method

This field mainly has two rendering methods: Using website module page rendering and Using component rendering. Using website module page rendering is based on iframe for rendering, which requires setting the component height. When the content height is not fixed, there may be a disconnect with other space operations. Since elements inside iframe cannot be displayed in the parent window, it is not recommended to use it when there are tooltips or dropdown lists inside.

Using component rendering is based on shadowDOM rendering and directly injected into the form context, which is more user-friendly in terms of interaction and is more recommended for rendering.

Using Component Rendering

In the actual project development process, we found that in some scenarios, the form field types provided by the system cannot cover complete application scenarios. At this time, we can develop components through the component editor and use custom component fields for rendering.

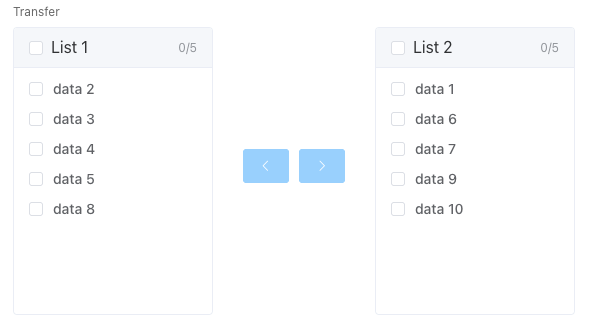

Effect Diagram

Transfer Box Component Definition

Create a component in the component designer, and paste the following definition into the corresponding section to complete the component definition

Component Library Dependencies

This component requires the ElementUI component library

TemplateScript

html

<div style="width:100%;height:100%;position:relative">
  <el-transfer :data="data" :value="value" v-on:change="change"></el-transfer>
  <div style="margin-top:20px">
    <el-button v-on:click="showLoading"> // [!code highlight] Set Form Loading </el-button>
  </div>
</div>

javascript

export default {
  // Component parameter definition
  props: {
    data: {
      type: Array,
      default: () => [],
    },
    value: {
      type: Array,
      default: () => [],
    },
  },
  methods: {
    showLoading() {
      // Form shows loading
      this.$emit("show-loading");
      setTimeout(() => {
        // Form hides loading
        this.$emit("hide-loading");
      }, 3000);
    },
    change(val) {
      // Set the value of the form field
      this.$emit("set-field-value", { field: "transferValue", value: JSON.stringify(val) });
    },
  },
};

Form Configuration Steps

After the component is defined, configure a data table with the following fields:

Identifier	Name	Type	Description
transfer	Custom Component Transfer Box	Custom Component
transferValue	Transfer Box Data	Rich Text	Used to store data from custom components, editor type is `Text Editor`

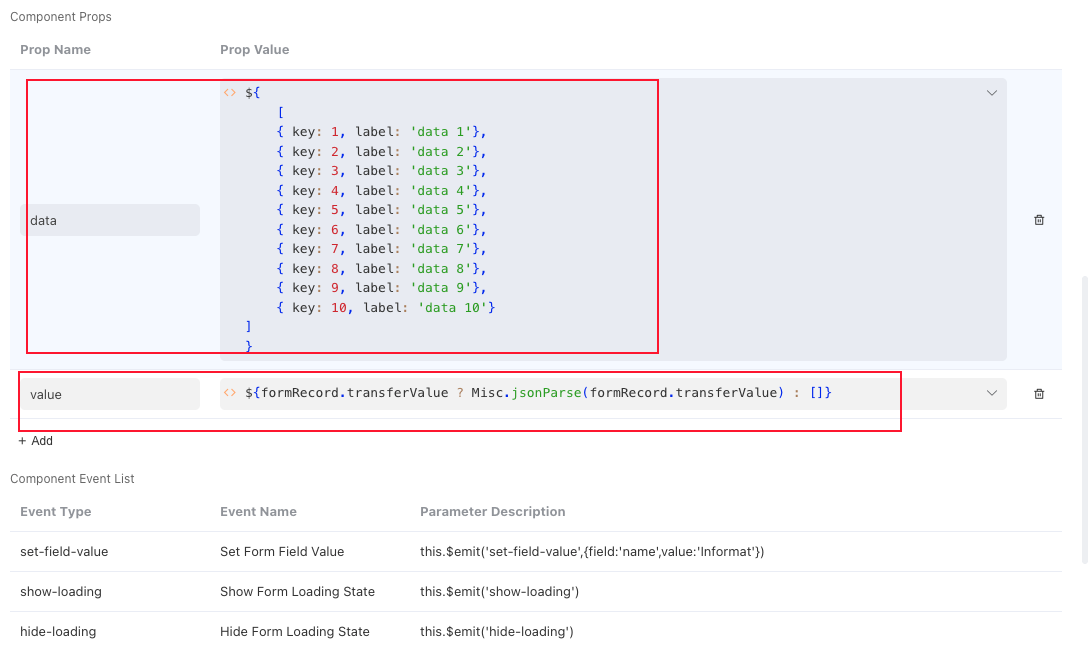

Custom Component Configuration:

Open the form page through create or edit page to experience it

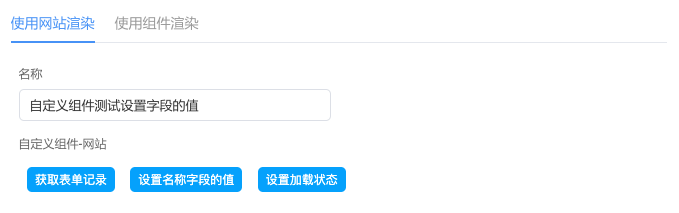

Using Website Module Page Rendering

For page data interaction, please refer to Website Service

html

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title>Custom Component</title>
    <script src="/js/postmessage-rpc.js"></script>
    <script src="/js/rpc.js"></script>
    <style>
      .button {
        outline: none;
        background: #409eff;
        padding: 4px 8px;
        font-size: 12px;
        border-radius: 5px;
        border: none;
        color: #fff;
        cursor: pointer;
      }

      .button + .button {
        margin-left: 10px;
      }
    </style>
  </head>
  <body>
    <script type="text/javascript">
      var ready = false;

      function isReady() {
        return new Promise((resolve) => {
          if (!ready) {
            eventService.onceEvent("rpc-ready", (e) => {
              ready = true;
              resolve();
            });
          } else {
            resolve();
          }
        });
      }

      function getRecord() {
        customFieldService.getRecord().then((record) => {
          console.log(record);
          systemService.callAutomatic({ automaticId: "showJsonString", args: [record] });
        });
      }

      function setFieldValue() {
        customFieldService.setFieldValue({
          field: "name",
          value: "Custom component test set field value",
        });
      }

      function showLoading() {
        customFieldService.showLoading();
        setTimeout(function () {
          customFieldService.hideLoading();
        }, 2000);
      }

      async function init() {
        await isReady();
        eventService.onEvent("automatic-event", (e) => {
          console.log("automatic-event------->", e);
        });
      }

      init();
    </script>
    <button class="button" type="button" onclick="getRecord()">Get Form Record</button>
    <button class="button" type="button" onclick="setFieldValue()">Set Name Field Value</button>
    <button class="button" type="button" onclick="showLoading()">Set Loading State</button>
  </body>
</html>

Component Form Validation

When creating a form page, when users submit the form, they expect to validate the form within the custom component field.

Using Website Module Page Rendering

Need to introduce Website Service in the website page and add a window.$customFieldFormValidate callback method in the page.

Using Component Rendering

Need to add a $customFieldFormValidate callback method in the blueprint or script within the component

// Use Promise to respond to validation results
export default {
  methods: {
    $customFieldFormValidate: function () {
      return Promise.resolve({
        valid: false,
        message: "XXX field validation failed",
      });
    },
  },
};

// Use Promise to respond to validation results, use system default validation prompt
export default {
  methods: {
    $customFieldFormValidate: function () {
      return Promise.resolve({
        valid: false,
      });
    },
  },
};

// Use Promise to respond to validation results, use system default validation prompt
export default {
  methods: {
    $customFieldFormValidate: function () {
      return Promise.resolve(false);
    },
  },
};

// Use Promise to respond to validation results
export default {
  methods: {
    $customFieldFormValidate: function () {
      return Promise.reject("XXX field validation failed");
    },
  },
};

// Use Promise to respond to validation results, use system default validation prompt
export default {
  methods: {
    $customFieldFormValidate: function () {
      return Promise.reject();
    },
  },
};

// Synchronously return validation results
export default {
  methods: {
    $customFieldFormValidate: function () {
      return {
        valid: false,
        message: "XXX field validation failed",
      };
    },
  },
};

// Synchronously return validation results, use system default validation prompt
export default {
  methods: {
    $customFieldFormValidate: function () {
      return false;
    },
  },
};

// Return validation failure by throwing an exception
export default {
  methods: {
    $customFieldFormValidate: function () {
      throw new Error("XXXX field validation failed");
    },
  },
};

Component Form Refresh

Using Page Rendering

Add eventService.onEvent listening event in the script of the page, refer to Events

//Listen to events from parent page
eventService.onEvent("rpc-reload", (e) => {
  console.log(e);
});

Using Component Rendering

Add $customFieldFormReload callback method in the script of the component

// Return validation failure by throwing an exception
export default {
  methods: {
    /**
     * Component form refresh
     * @param {string} data.type    Refresh type
     * @param {Object} data.field   Field information
     * @param {Object} data.record  Record information
     */
    $customFieldFormReload: function (data) {},
  },
};
