User Selection

Description

Item	Content
Category	Control Class
Storage Type	TableAccountSimple,Array<TableAccountSimple>
Sortable	Yes
Filterable	Yes
Supported Filter Types	Contains, Does Not Contain, Equal, Not Equal, Empty, Not Empty, In List, Not In List

Settings

Setting	Description
Allow empty	Set whether the field is required
Multiple selection	When enabled, the user selection will support multiple selection. Enabling multiple selection will change the field's storage type
Placeholder in form when not filled	Text information displayed in the input box when no information is entered in the field
Use current user as default value	When enabled, the current operating user will be used as the default value
Data source	Can set the data source for option values Options: Application Members、Team Members

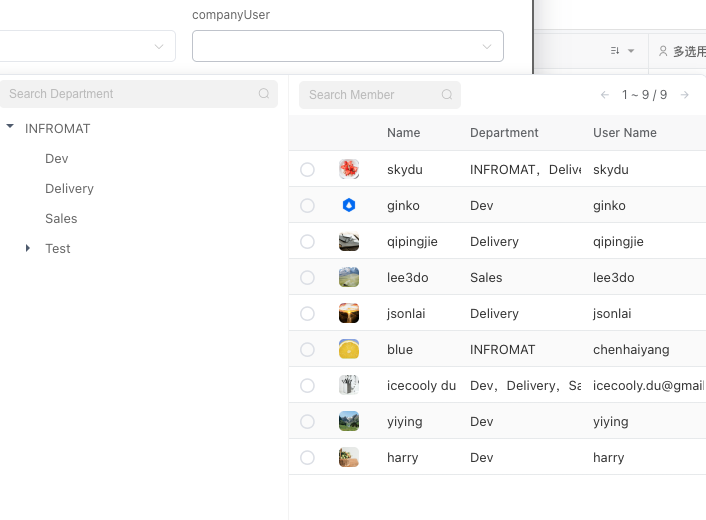

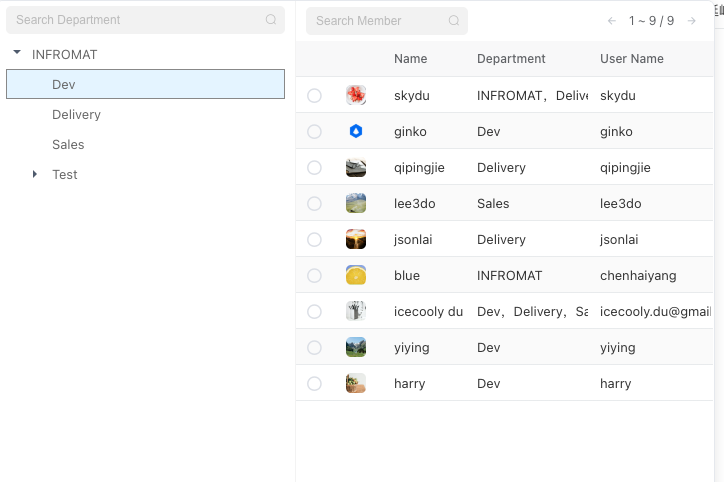

Selector style	Can set the style of the selector when displaying options, only displayed when the data source is Team Members Options: List、Department Tree and Member List
Select selection range	When the data source is Application Members, after enabling, you can limit the range of selected user members through Application Roles
Display style	Can set the display style of field content Options: Avatar and Name、Avatar、Name、Plain Text
Use automation to set candidate list	Support using automation to filter the set option values
Automation input parameters	Parameters that can be passed when calling automation to calculate candidate values

Note

Because single selection and multiple selection have different storage types, enabling/disabling multiple selection may cause data loss, so please operate with caution

Database Storage Format

Field Type	Description
jsonb	Stores JSON format data, JSON data structure is shown below

In the data table, user selection field data is stored in JSON format. If it is multiple selection, it is stored as a JSON array. The JSON structure is as follows:

interface TableAccountSimple {
  id: string; //ID
  name: string; //Name
  avatar: string; //Avatar
}

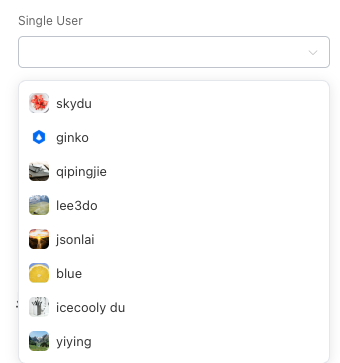

Use Automation to Set Candidate List (Application Members)

let users = [
  {
    avatar: "pic16.png",
    hint: "lisiming",
    id: "lisiming",
    name: "lisiming",
    remark: "mingsi.li",
  },
  {
    avatar: "pic17.png",
    hint: "wangmingjun",
    id: "wangmingjun",
    name: "wangmingjun",
    remark: "wangmingjun992",
  },
];
automatic.setReturnValue(users);

Use Automation to Set Candidate List (Team Members)

let userDepts = [
  {
    id: "900001",
    name: "Shenzhen XXX Technology Co., Ltd.",
    type: "department",
    children: [
      {
        avatar: "pic16.png",
        hint: "zhaosunfu",
        id: "zhaosunfu",
        name: "zhaosunfu",
        remark: "zhaosunfu001",
        type: "member",
        departmentIdList: ["900001", "900103"],
      },
      {
        id: "900103",
        name: "Total Office",
        type: "department",
        children: [
          {
            avatar: "pic16.png",
            hint: "zhaosunfu",
            id: "zhaosunfu",
            name: "zhaosunfu",
            remark: "zhaosunfu001",
            type: "member",
            departmentIdList: ["900001", "900103"],
          },
          {
            avatar: "pic16.png",
            hint: "lisiming",
            id: "lisiming",
            name: "lisiming",
            remark: "mingsi.li",
            type: "member",
            departmentIdList: ["900101", "900103"],
          },
        ],
      },
      {
        id: "900101",
        name: "R&D Department",
        type: "department",
        children: [
          {
            avatar: "pic16.png",
            hint: "lisiming",
            id: "lisiming",
            name: "lisiming",
            remark: "mingsi.li",
            type: "member",
            departmentIdList: ["900101"],
          },
          {
            avatar: "pic17.png",
            hint: "wangmingjun",
            id: "wangmingjun",
            name: "wangmingjun",
            remark: "wangmingjun992",
            type: "member",
            departmentIdList: ["900101"],
          },
        ],
      },
      {
        id: "900102",
        name: "Marketing Department",
        type: "department",
        children: [
          {
            id: "900111",
            name: "shenzhen",
            type: "department",
            children: [
              {
                avatar: "pic17.png",
                hint: "qiansijiang",
                id: "qiansijiang",
                name: "qiansijiang",
                remark: "qiansijiang003",
                type: "member",
                departmentIdList: ["900111"],
              },
            ],
          },
          {
            id: "900112",
            name: "shenzhen",
            type: "department",
            children: [
              {
                avatar: "pic17.png",
                hint: "sunming",
                id: "sunming",
                name: "sunming",
                remark: "sunming004",
                type: "member",
                departmentIdList: ["900112"],
              },
            ],
          },
          {
            id: "900113",
            name: "xian",
            type: "department",
            children: [
              {
                avatar: "pic17.png",
                hint: "zhangwu",
                id: "zhangwu",
                name: "zhangwu",
                remark: "zhangwu",
                type: "member",
                departmentIdList: ["900113"],
              },
            ],
          },
        ],
      },
    ],
  },
];
automatic.setReturnValue(userDepts);
