Tree Selection

Description

Item	Content
Control Class	Control Class
Sortable	Single Selection: Yes
Filterable	Single Selection: Yes
Supported Filter Types	Single Selection: Contains, Does Not Contain, Equal, Not Equal, Empty, Not Empty, In List, Not In List

Settings

Setting	Description
Allow empty	Set whether the field is required

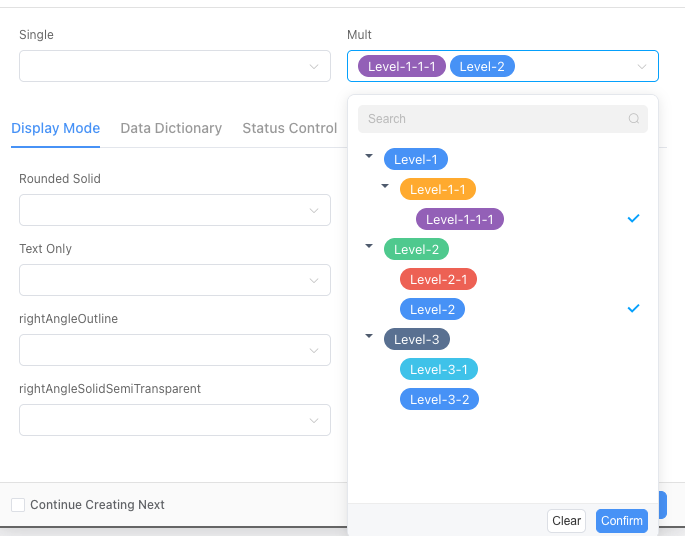

Multiple selection	When enabled, the tree selection will support multiple selection. Enabling/disabling multiple selection will change the field's storage type
Placeholder in form when not filled	Text information displayed in the input box when no information is entered in the field

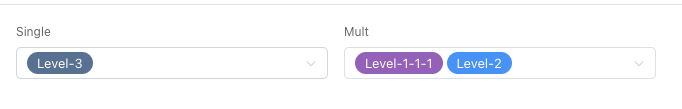

Display style	Set the display style after selecting an option Options: Rounded Solid Color、Rounded Wireframe、Plain Text、Right Angle Solid Color、Right Angle Wireframe、Semi-transparent Rounded Solid Color、Semi-transparent Right Angle Solid Color
Use option dictionary to get option values	Whether to use the data dictionary in application settings as options
Option dictionary category	When using the data dictionary in application settings as options, the data dictionary category used for list selection data
Option values	Can set the option values for this field Supported operations: Add、Copy from other fields、Add sub-options、Set as non-selectable、Delete option
Use automation to set candidate list	Support using automation to filter the set option values
Automation input parameters	Parameters passed to automation based on context when calling automation for candidate values

Note

• Single selection and multiple selection have different storage types. Enabling/disabling multiple selection may cause data loss, so please operate with caution. For conversion rules, refer to

• When adding option values, a random code will be automatically generated as the option ID. You must modify the option ID according to the usage scenario to facilitate subsequent calls.

• Use automation to set candidate list:

  • The automation return value only supports the ID list Array<String> of option values.
  • The ID list returned by automation must be within the scope of the Identifier in the option values or data dictionary.
  • When the ID list returned by automation is null, all option values will be displayed.

Database Storage Format

Selection Type	Field Type	Description
Single Selection	varchar(200)	Variable-length string, maximum 200 characters
Multiple Selection	text[]	Array

Usage Examples

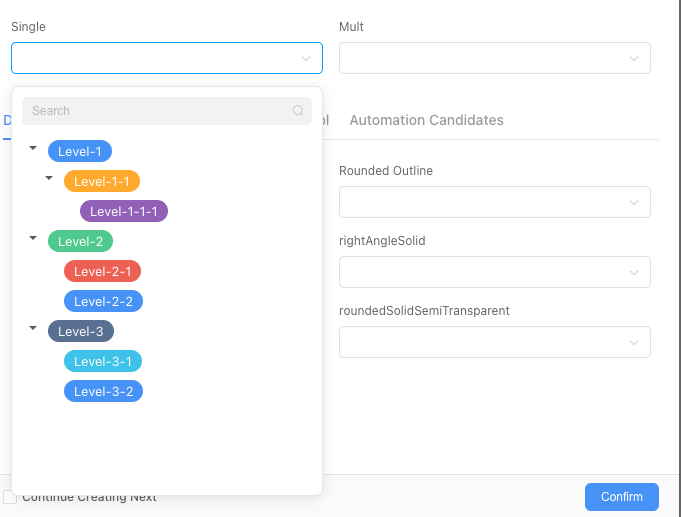

Basic Usage

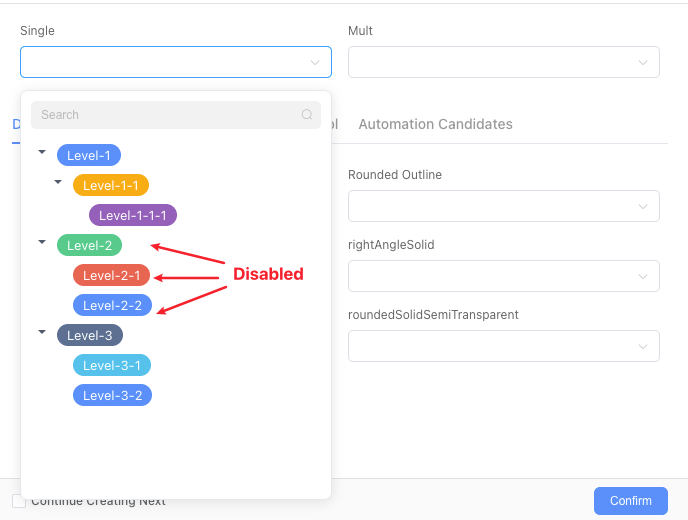

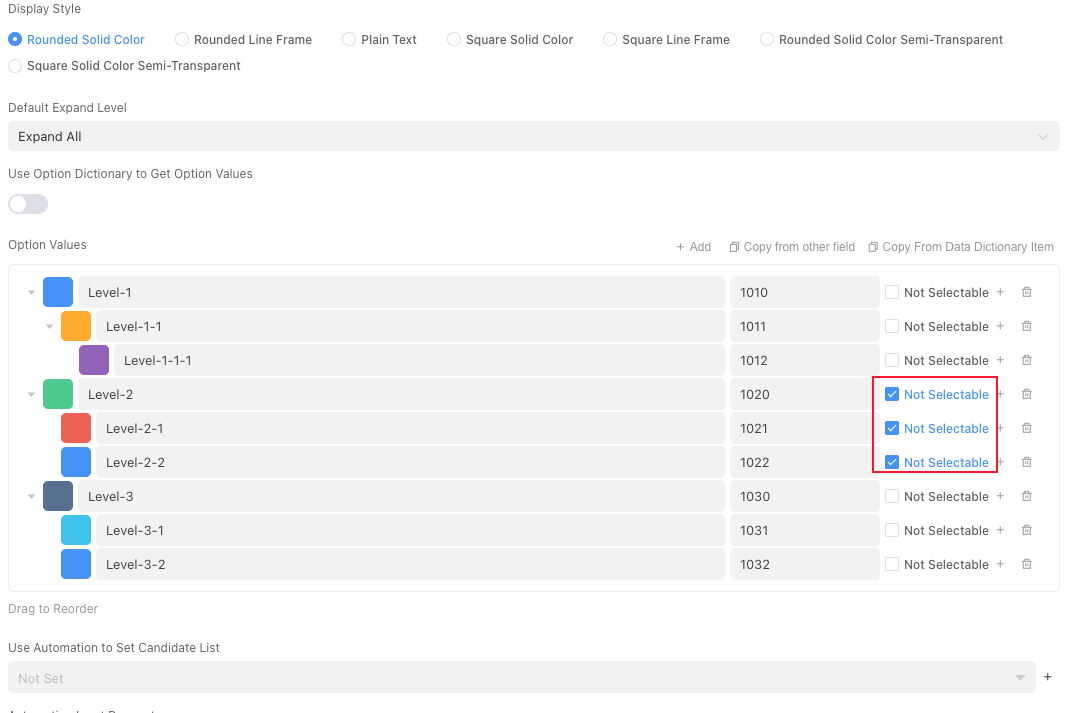

Status Control

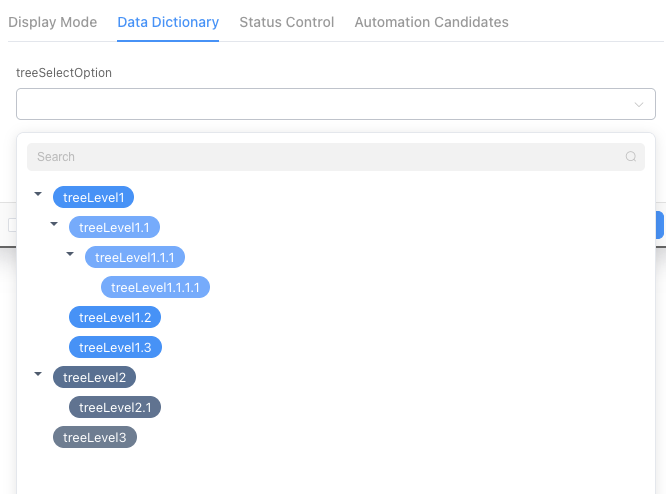

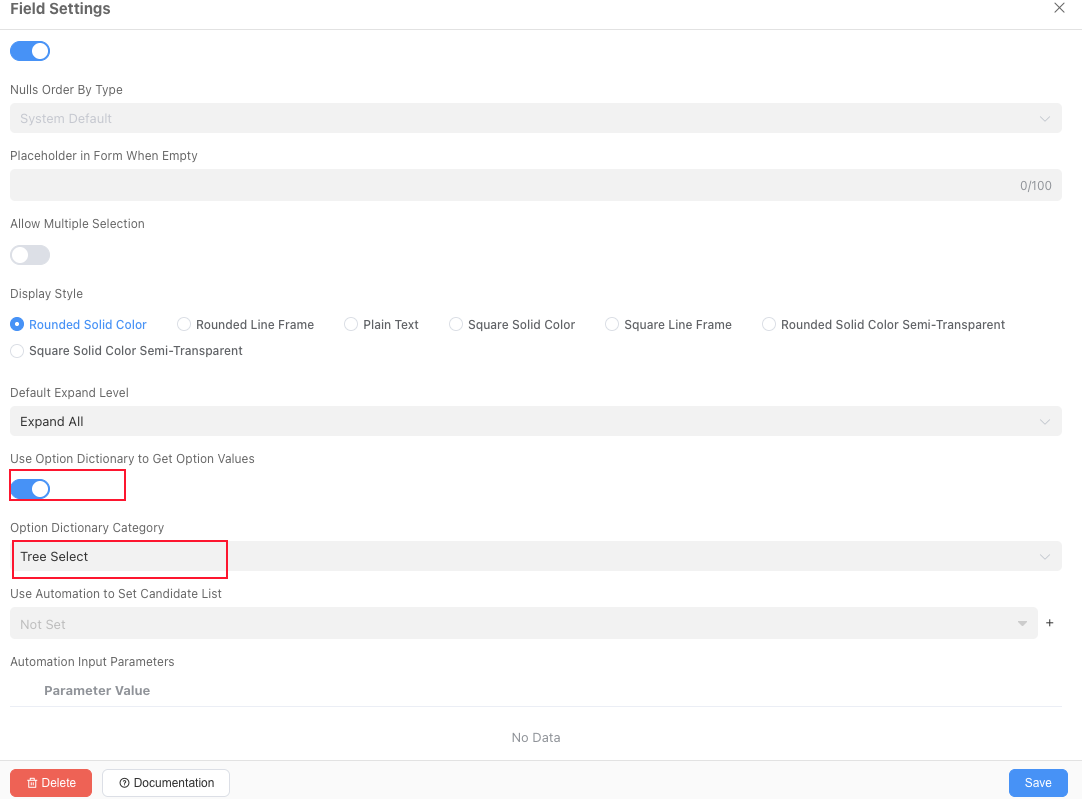

Use Option Dictionary to Get Option Values

For option value field configuration, refer to

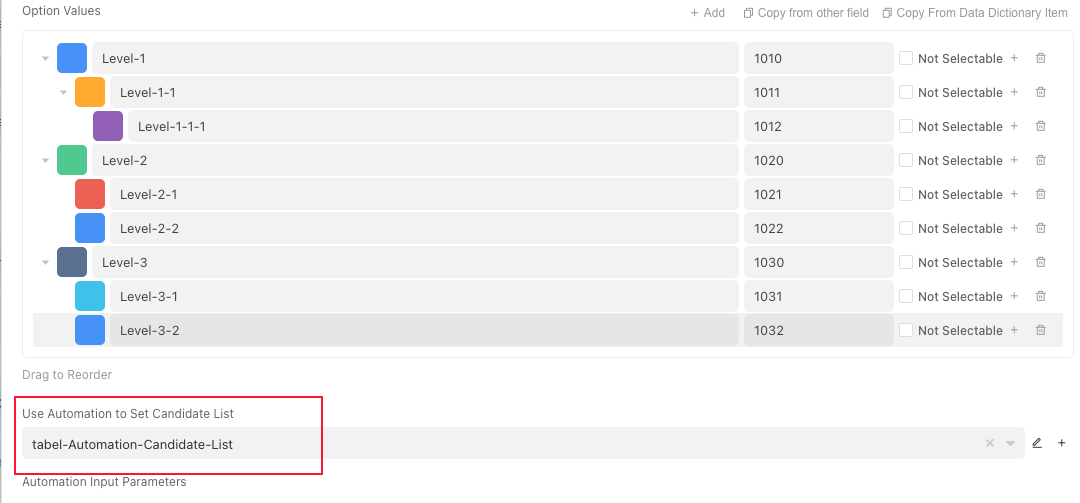

Use Automation to Set Candidate List

Option definitions:

Level	Option Value	Identifier
0	Hunan Province	1010
1	Changsha City	1011
1	Chenzhou City	1012
0	Hubei Province	1020
1	Wuhan City	1021
1	Xiangyang City	1022
0	Guangdong Province	2010
1	Guangzhou City	2011
1	Shenzhen City	2012

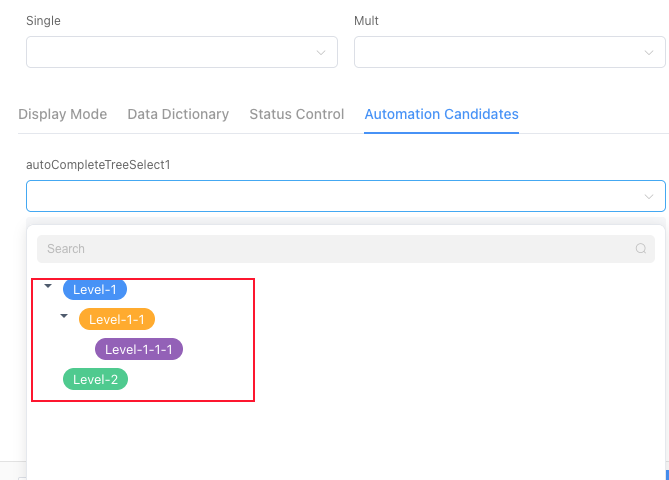

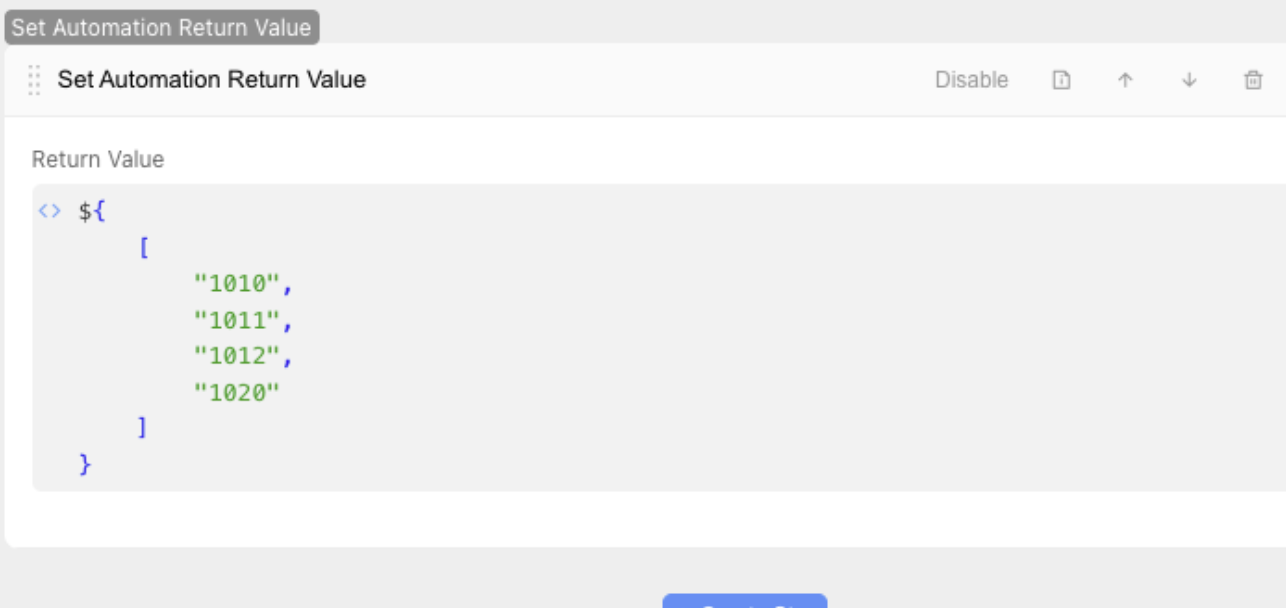

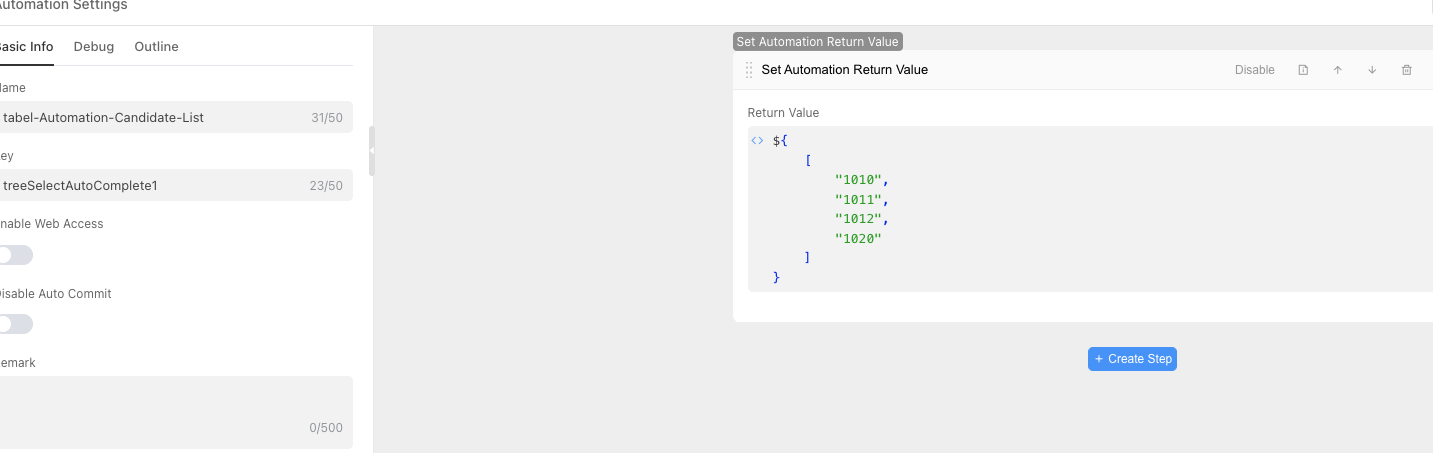

Return Only Parent Data

Data not in the range will not be displayed; only parent data is returned, and child data of the parent will not be displayed.

${
    [
        "1010",
        "1011",
        "1012",
        "1020"
    ]
}

Return Only Child Data

Data not in the range will not be displayed; only child data is returned, and parent data will not be displayed.

${
    [
      "1011",
      "1012",
      "1021",
      "1022",
      "2011",
      "2012"
    ]
}
