Cascader Selection

Description

Item	Content
Control Class	Control Class
Sortable	Yes
Filterable	Yes
Supported Filter Types	Single Selection: Contains, Does Not Contain, Equal, Not Equal, Empty, Not Empty, In List, Not In List

Settings

Setting	Description
Allow empty	Set whether the field is required
Multiple selection	When enabled, the cascader selection will support multiple selection. Enabling multiple selection will change the field's storage type
Allow selection at any level	When enabled, supports selecting intermediate nodes
Placeholder in form when not filled	Text information displayed in the input box when no information is entered in the field
Use option dictionary to get option values	Whether to use the data dictionary in application settings as options
Option dictionary category	When using the data dictionary in application settings as options, the data dictionary category used for list selection data
Option value type	Can use system preset option values Options: Default、Province、Province and City、Province, City and District
Option values	Can set the option values for this field. Only displayed when option value type is Default Supported operations: Add、Copy from other fields、Add sub-options、Delete option
Use automation to set candidate list	Support using automation to filter the set option values
Automation input parameters	Parameters passed to automation based on context when calling automation for candidate values

Note

• Single selection and multiple selection have different storage types. Enabling/disabling multiple selection may cause data loss, so please operate with caution. For conversion rules, refer to

• When adding option values, a random code will be automatically generated as the option ID. You must modify the option ID according to the usage scenario to facilitate subsequent calls

• Use automation to set candidate list:

  • The automation return value only supports the ID list Array<String> of option values.
  • The ID list returned by automation must be within the scope of the Identifier in the option values or data dictionary.
  • When the ID list returned by automation is null, all option values will be displayed.

Database Storage Format

Selection Type	Field Type	Description	Example
Single Selection	text[]	Array	{Guangdong,Shenzhen,Nanshan}
Multiple Selection	jsonb	Store JSON data structure	[["Shanghai", "City of Shanghai", "Huangpu District"], ["Shanghai", "City of Shanghai", "Pudong District"]]

Usage Examples

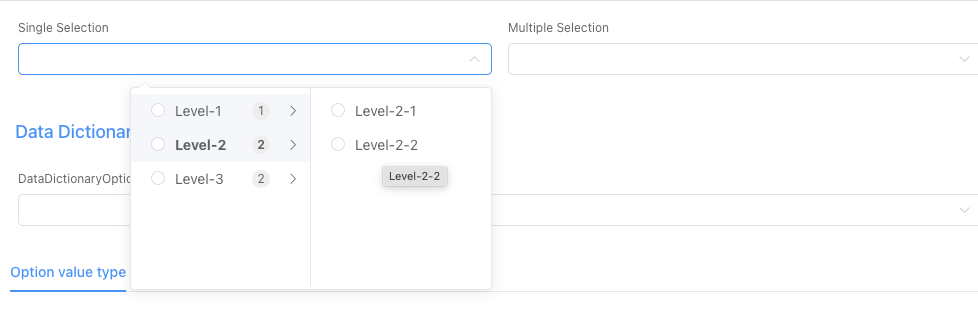

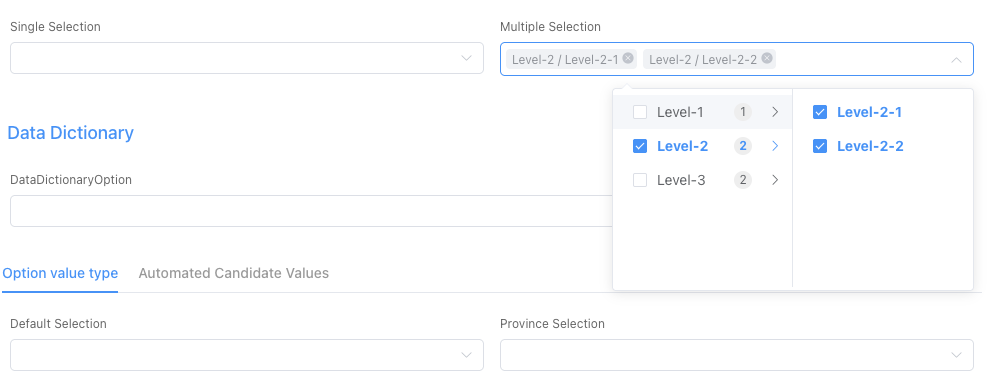

Basic Usage

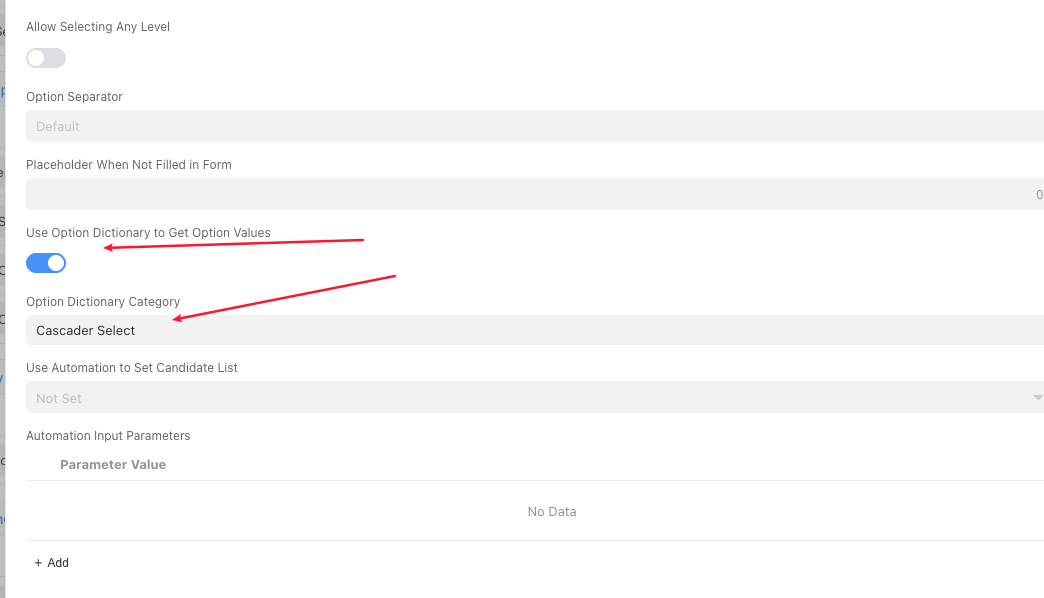

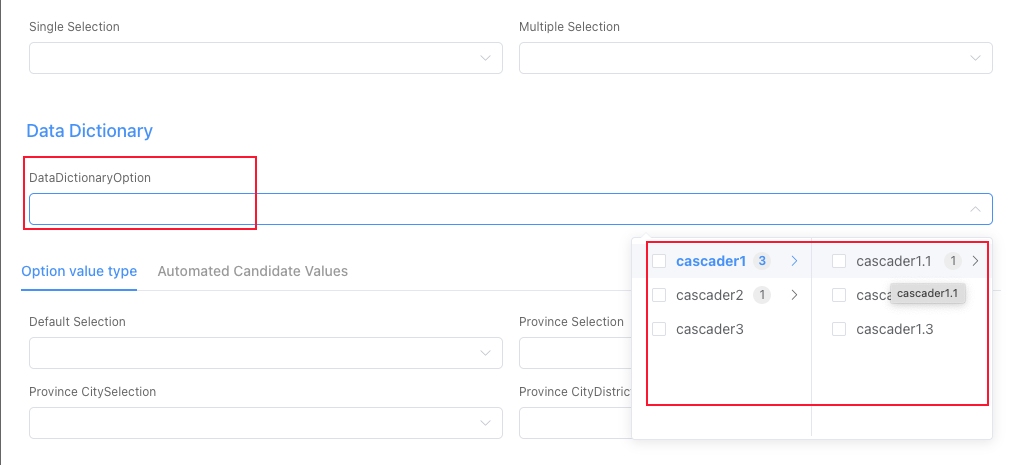

Use Option Dictionary to Get Option Values

For option value field configuration, refer to

Option Value Type

The system has built-in Province, Province and City, Province, City and District data, which can be quickly configured to implement province-city-district selection.

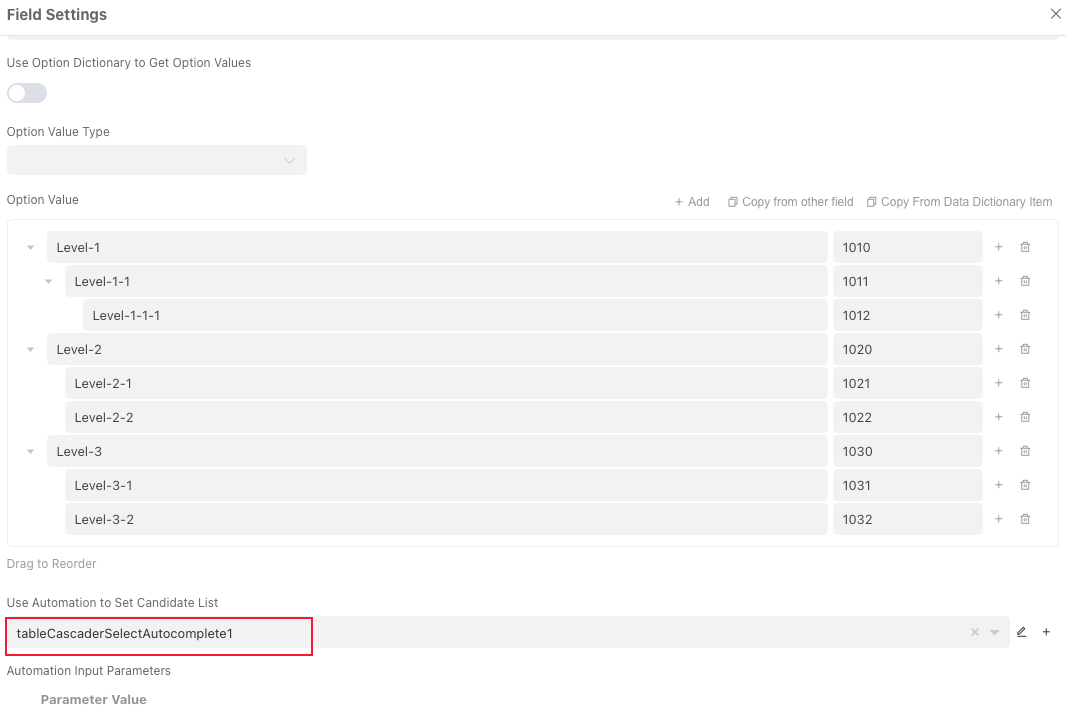

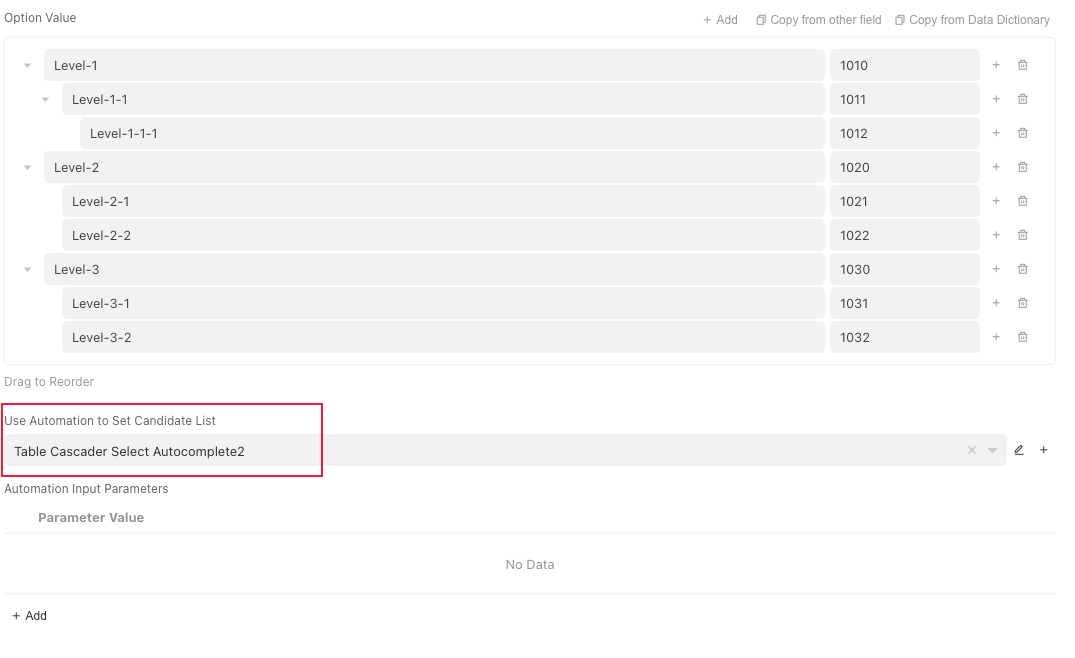

Use Automation to Set Candidate List

Option definitions:

Level	Option Value	Identifier
0	Hunan	1010
1	Changsha	1011
1	Cixi	1012
0	Hubei	1020
1	Wuhan	1021
1	Xiangyang	1022
0	Guangdong	2010
1	Guangzhou	2011
1	Shenzhen	2012

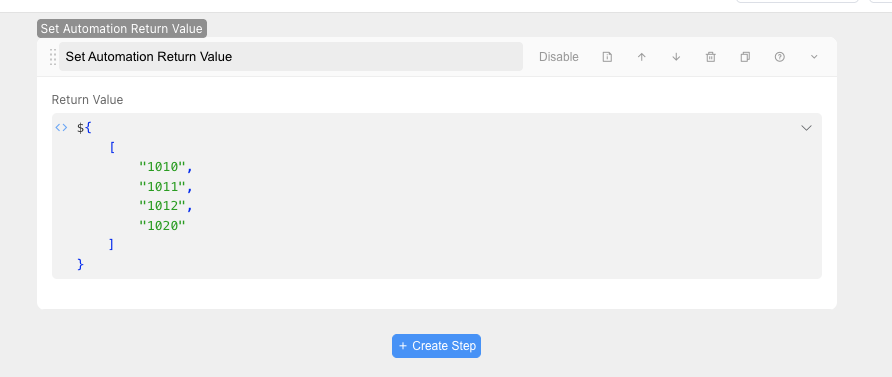

Return Only Parent Data

Data not in the range will not be displayed; only parent data is returned, and child data of the parent will not be displayed

${
    [
        "1010",
        "1011",
        "1012",
        "1020"
    ]
}

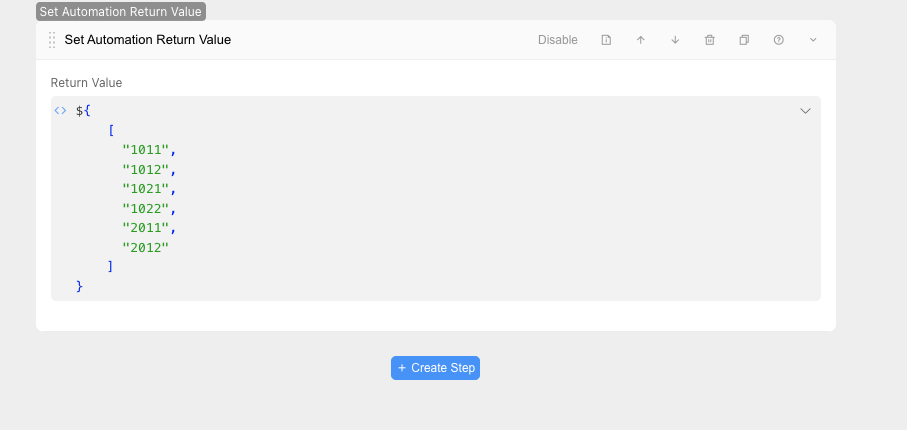

Return Only Child Data

Data not in the range will not be displayed; only child data is returned, and parent data will not be displayed

${
    [
      "1011",
      "1012",
      "1021",
      "1022",
      "2011",
      "2012"
    ]
}
