Example

Overview

This article will use the “Onboarding Application” workflow as an example to introduce the overall configuration of a BPMN workflow. Through this example, you will understand how the workflow operates during the onboarding process. As a typical business process, onboarding can help you better grasp the practical application of BPMN workflows. We will detail the definition and configuration of the process, explain the functions and interactions of each step, and guide you to a deeper understanding of how the workflow engine works and its role in interview and onboarding processes.

Process Overview

Overview of the On-boarding Process

1. The initiator submits an interview request.
2. After the department head or general manager approves, the interview process is completed. If the rank is less than or equal to 3, any department head can approve the interview. If the rank is greater than 3, the general manager must approve the interview.
3. After the interview is passed, HR communicates with the employee to detail the onboarding process.
4. Once the onboarding is confirmed, an onboarding notification is sent to the employee.
5. The employee must fill in the onboarding form and complete the onboarding process.

Process Flowchart

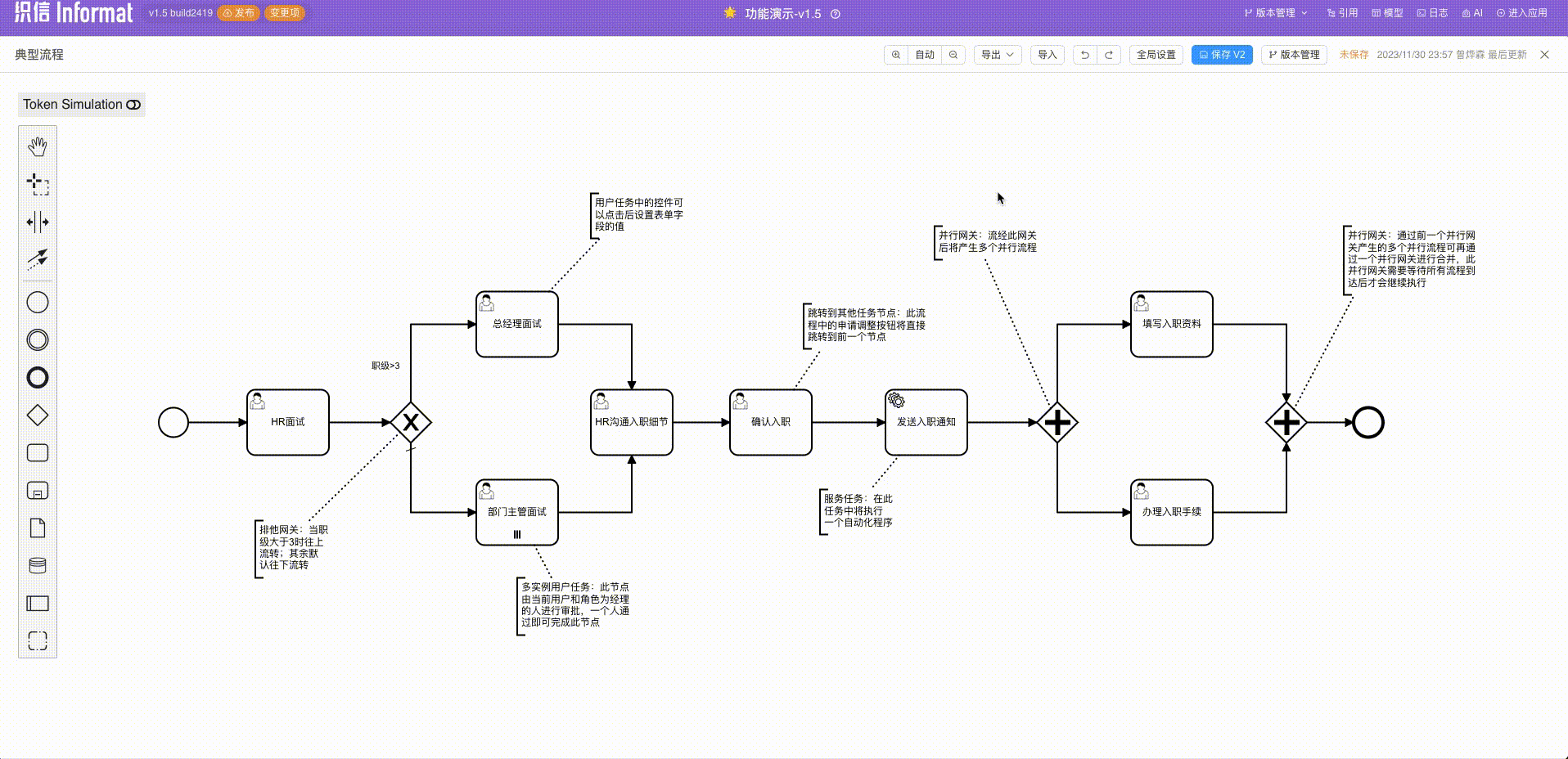

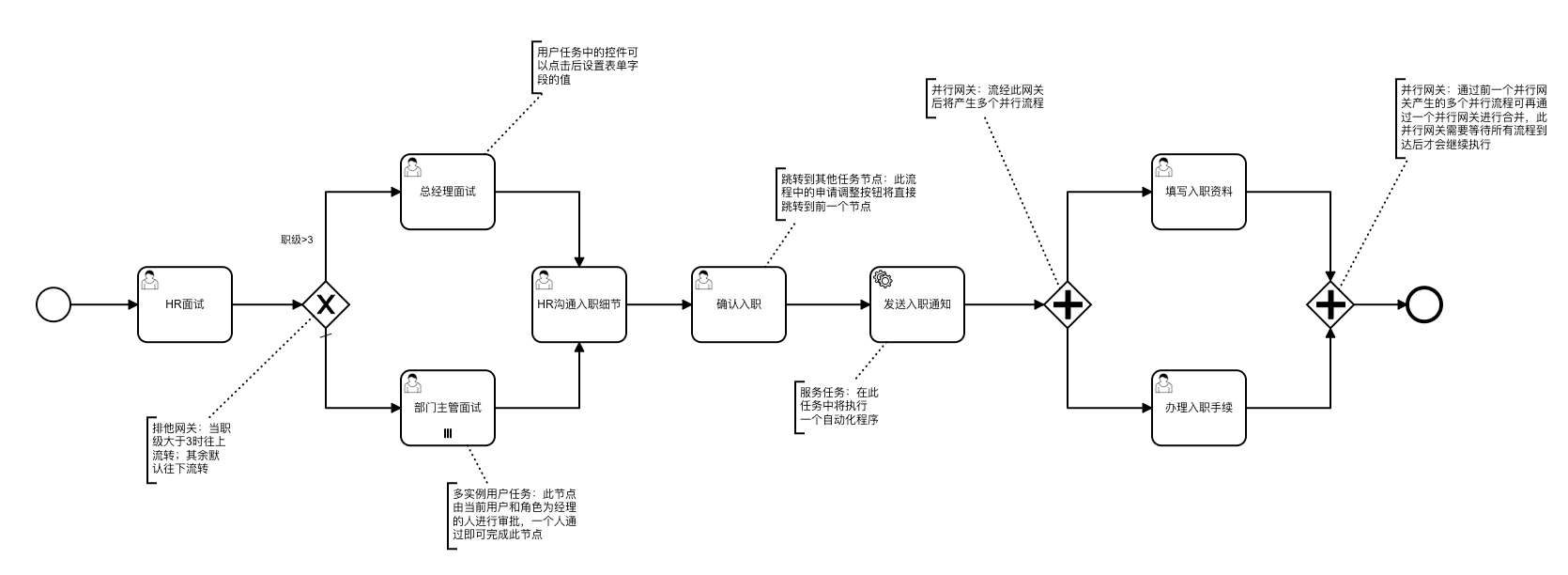

Flowchart of the On-boarding Process

Data Tables

Data Table Structure for Onboarding Application Forms

Field	Type	Description
code	Number	Interview code
name	Text	Employee name
sex	List	Gender; options: man-Male, woman-Female
idNo	Single-line text	ID card number
post	Single-line text	Position / Job title
level	Integer	Job grade / Level
salary	Decimal	Salary
status	List choice	Process status; options: wait-Not interviewed, atInterview-In interview, toBeEmployed-Pending onboarding, working-In progress, finish-Onboarded, eliminate-Eliminated
biographicalNote	Attachment	Résumé / CV
contract	Attachment	Labor contract

Serial-number calculation expression:

M${Misc.formatDate(Date.sysdate(),'yyyyMM')}${String.lpad(seq,3,'0')}

Workflow Configuration

In the Onboarding process, the initiator needs to fill out the application form and pass the interview approval from the department head or general manager. Below are the specific configurations of the workflow:

Global Settings

Start Settings

• Set the process instance name: 【${form.code}】${form.name}-Onboarding Process

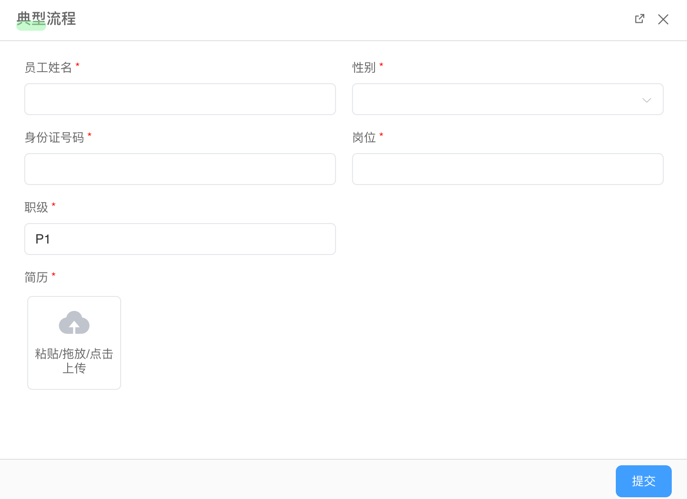

• Add a start form for the initiator to fill out the interview application information.

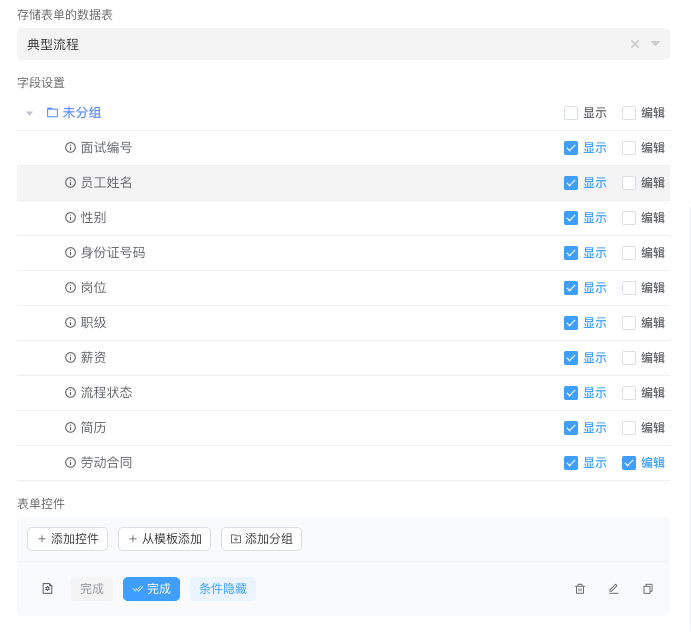

• Tick the fields that need to be filled out.
• After completion, set the form field values, status=atInterview

Event listening

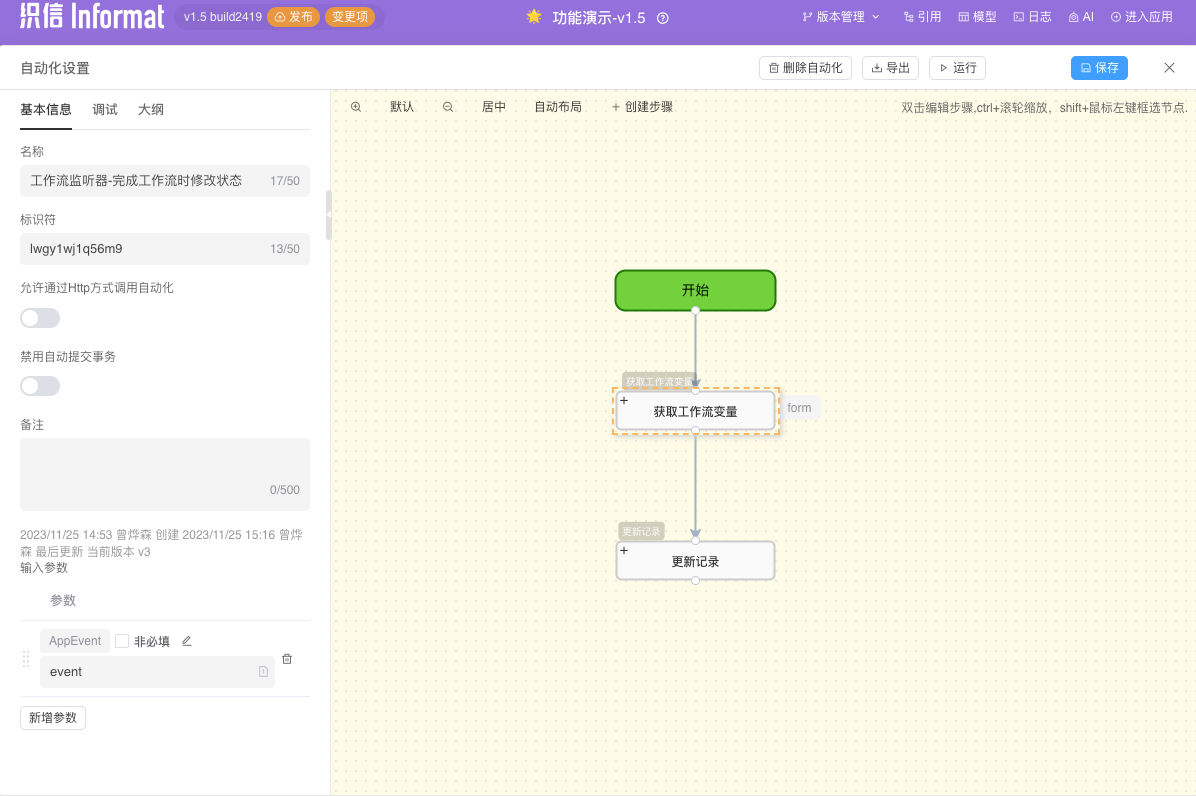

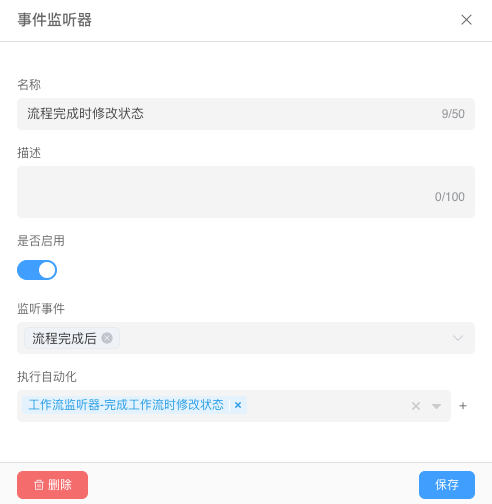

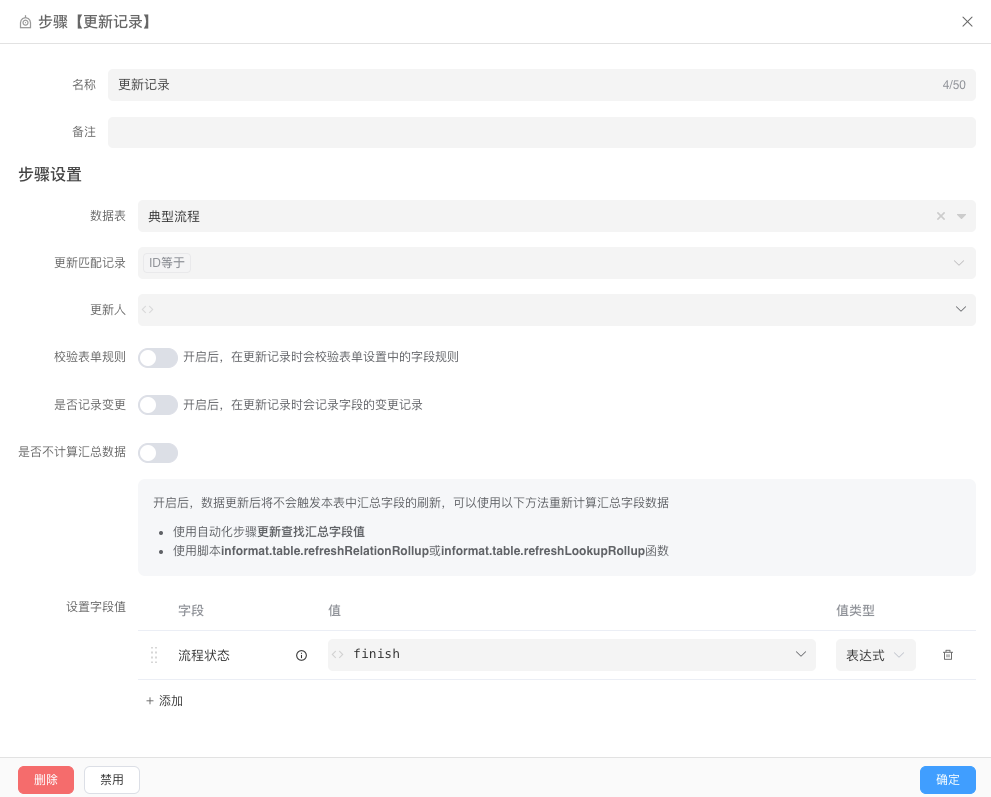

• Create an event listener to listen for the Process Completion event and call the update workflow status automation.

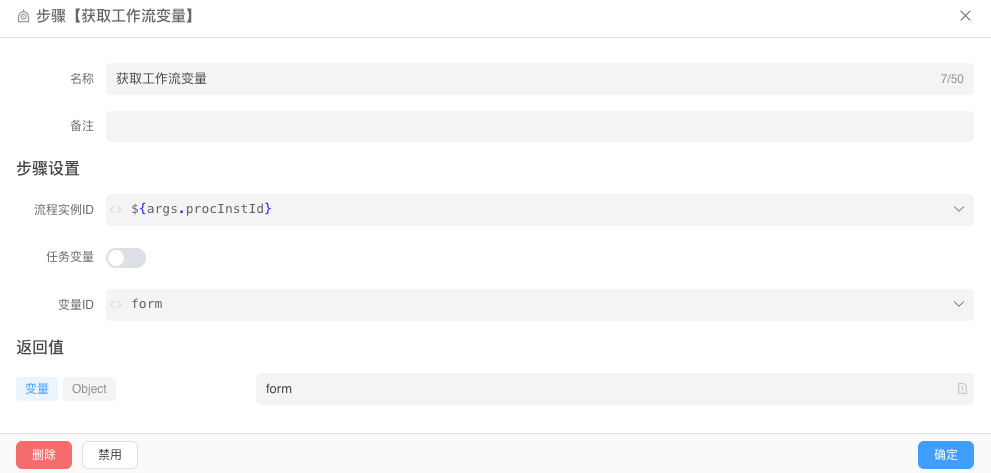

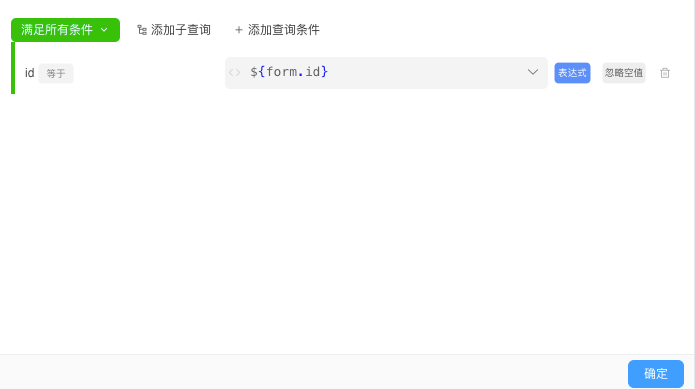

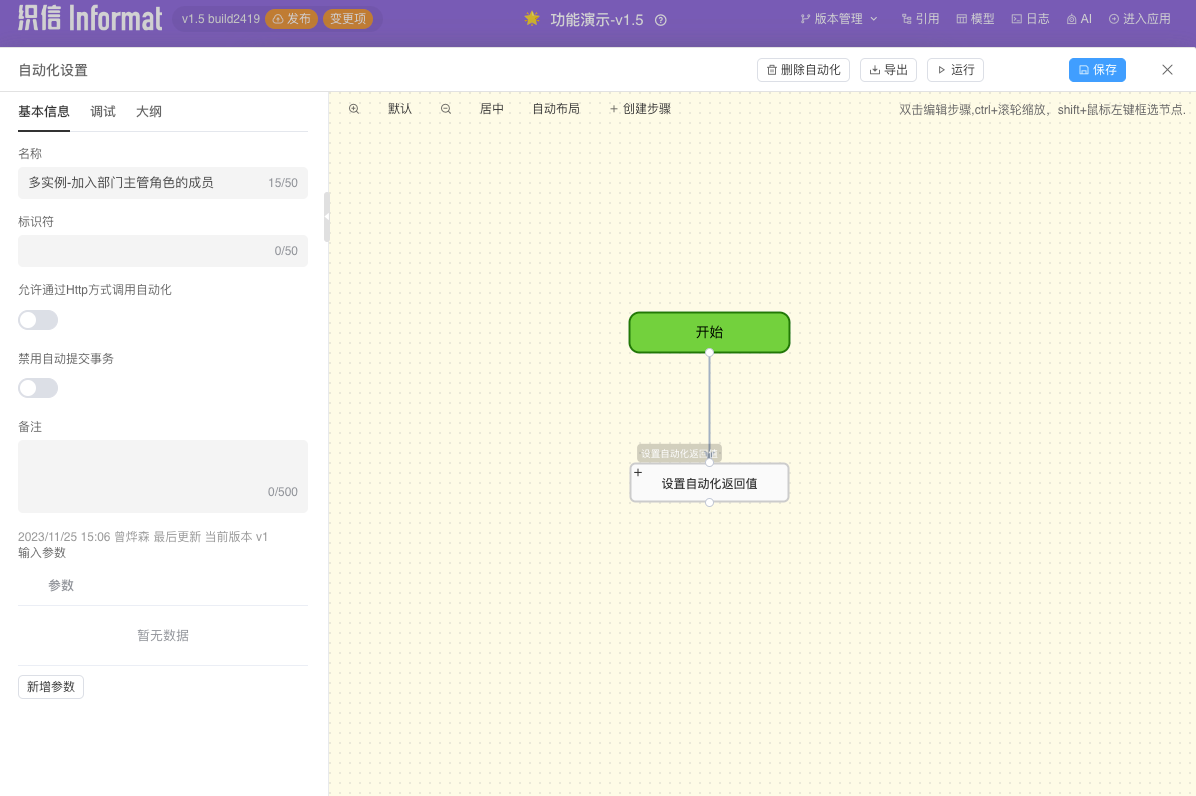

• Call the automation

HR Interview Node

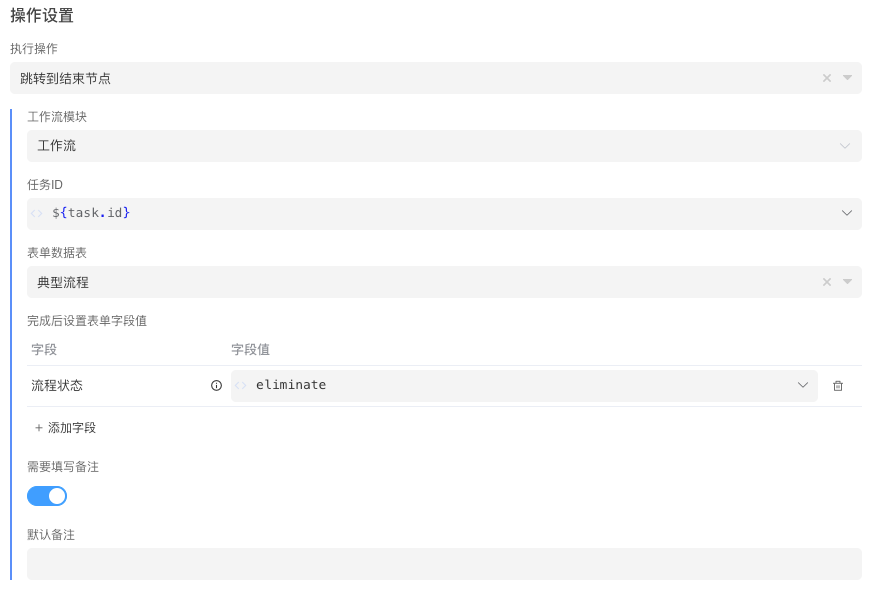

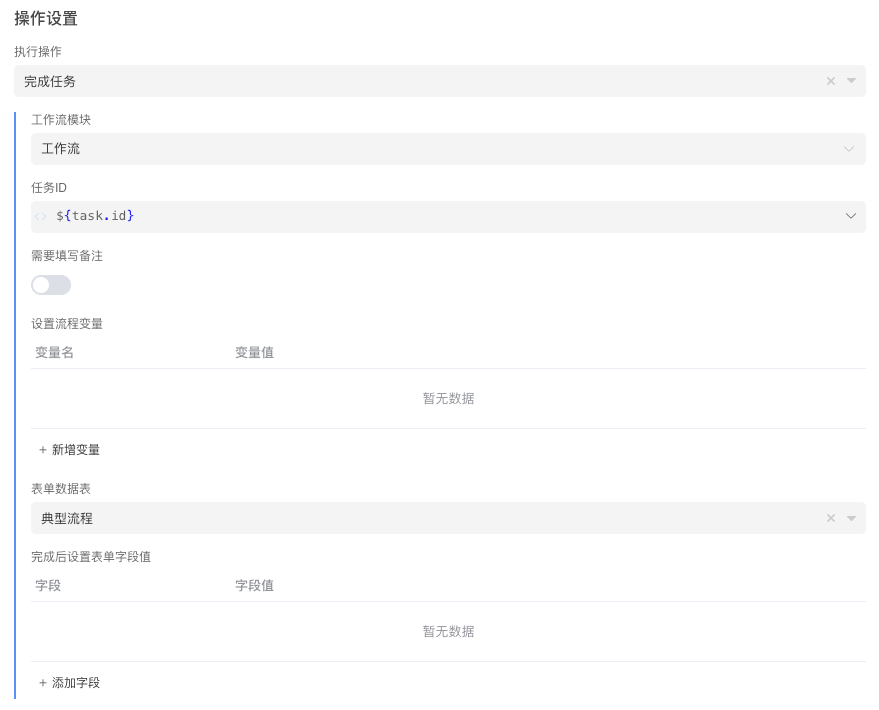

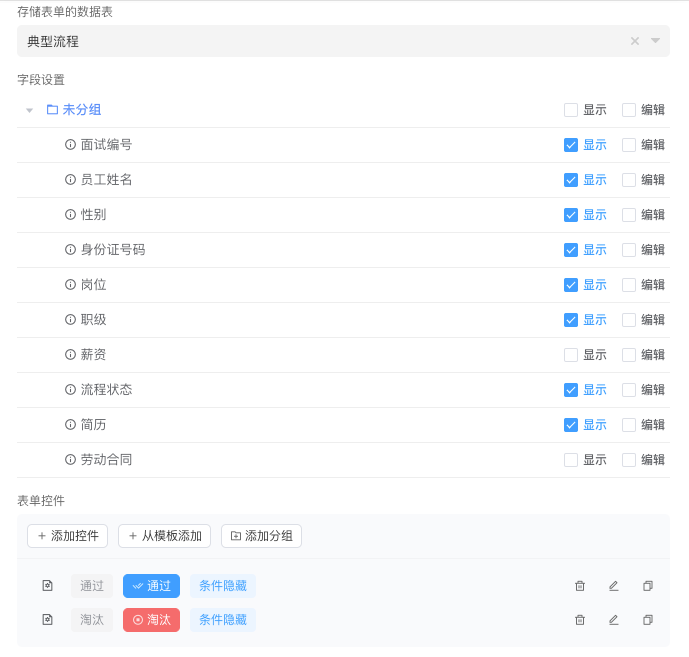

Task Settings:

Rank Judgment

Add an exclusive gateway and configure the transition rules. The system will determine the flow direction based on the transition rules.

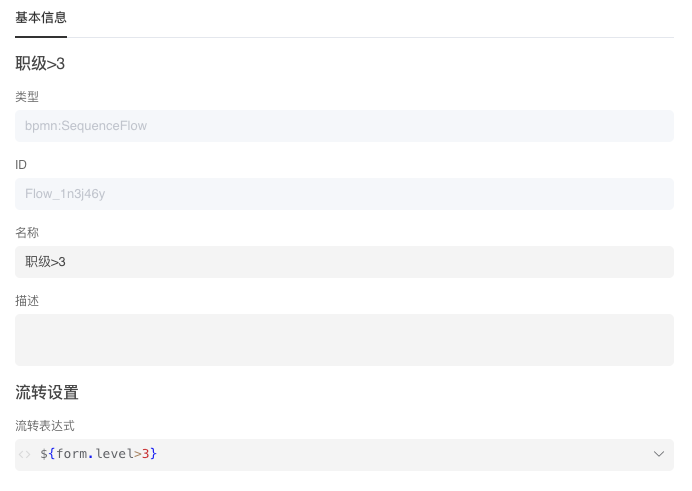

Transition Expression:

${form.level > 3}

Department Manager Interview Node

Use multi-instance configuration to handle or-signal behavior. Set the assignee to ${departmentManager}. The task settings are consistent with the HR interview node.

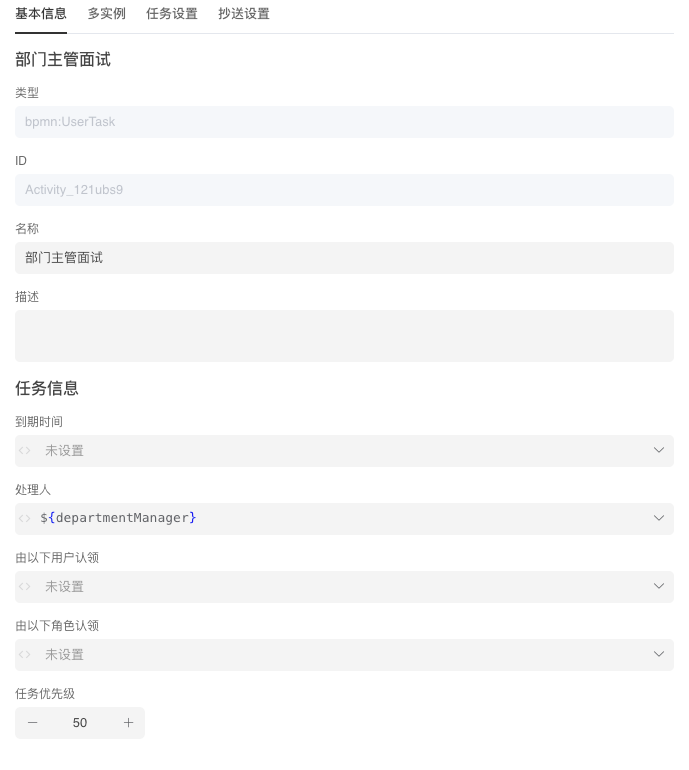

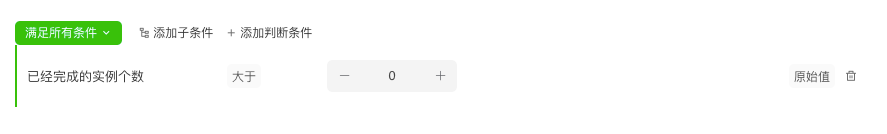

Basic Information: Multi-Instance:

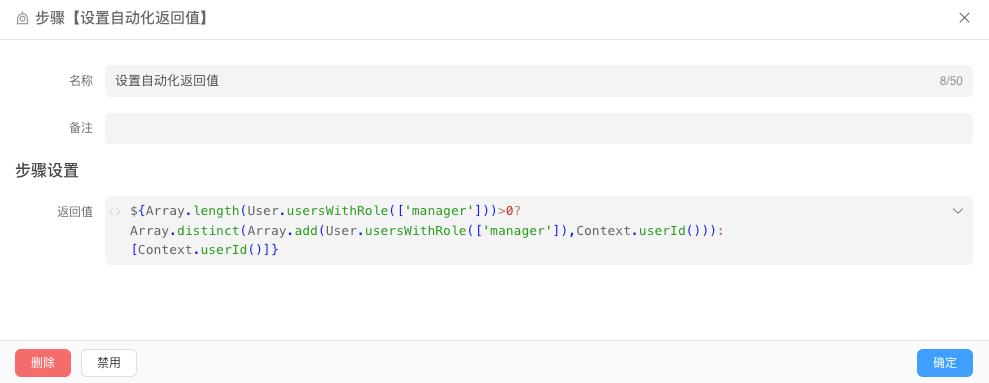

Automation Expression:

${Array.length(User.usersWithRole(['manager']))>0 ?
Array.distinct(Array.add(User.usersWithRole(['manager']),Context.userId())) : [Context.userId()]}

General Manager Interview Node

Similar to the HR interview node, simply select General Manager as the assignee.

HR Communication Hiring Details

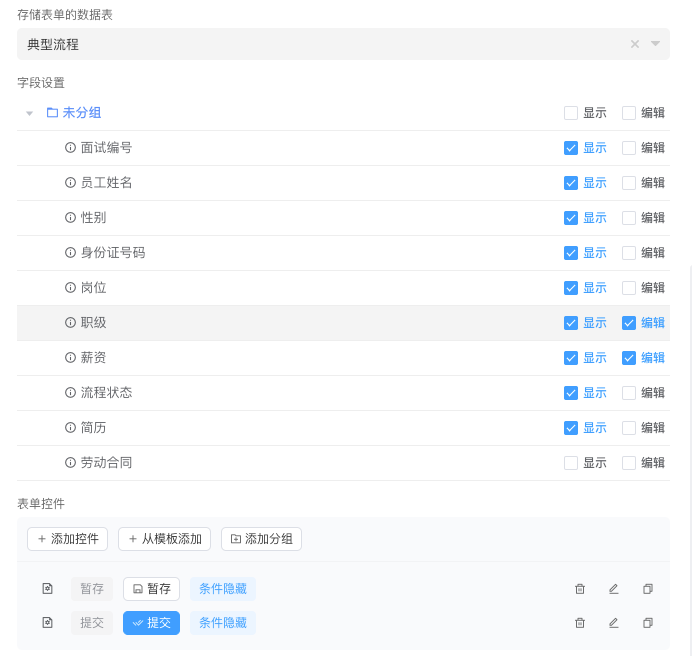

When communicating with the hired employee, you need to modify the employee's salary and rank. Task Settings:

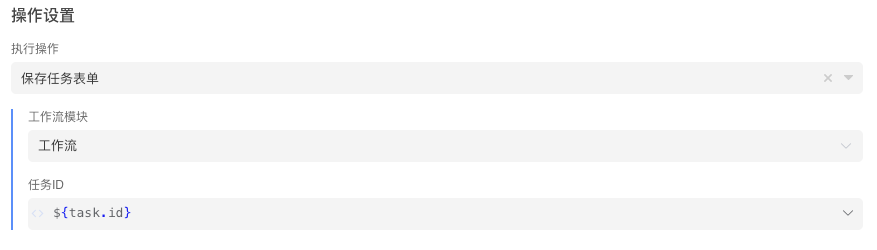

Save the task form without completing the task node

Confirm Hiring

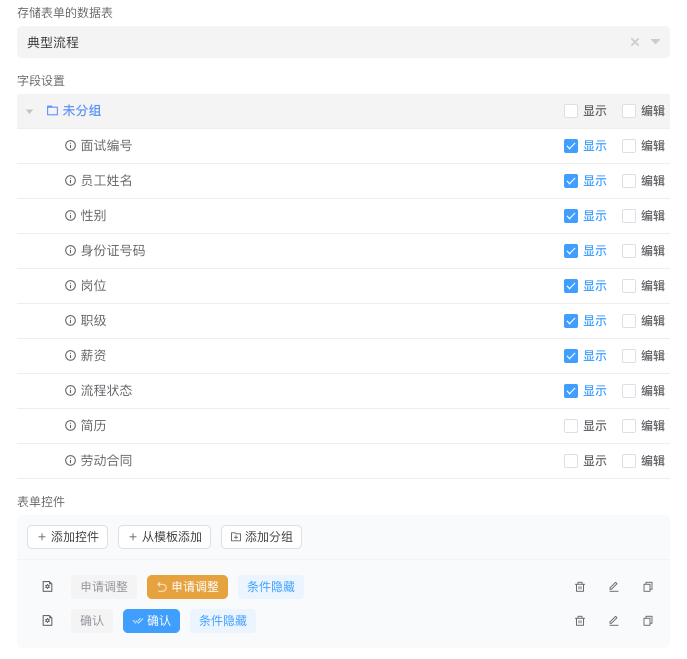

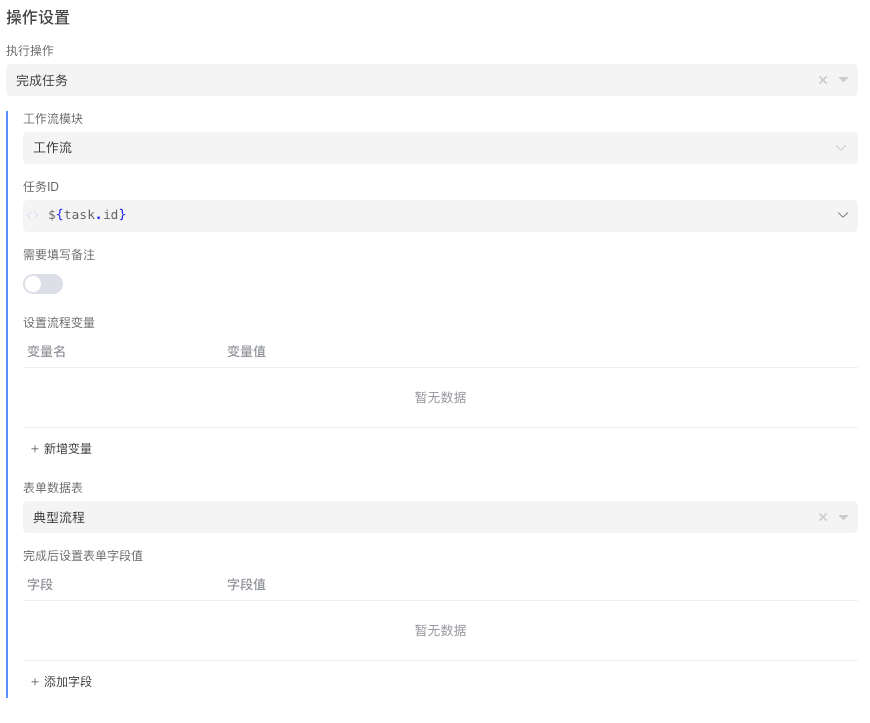

Task Settings:

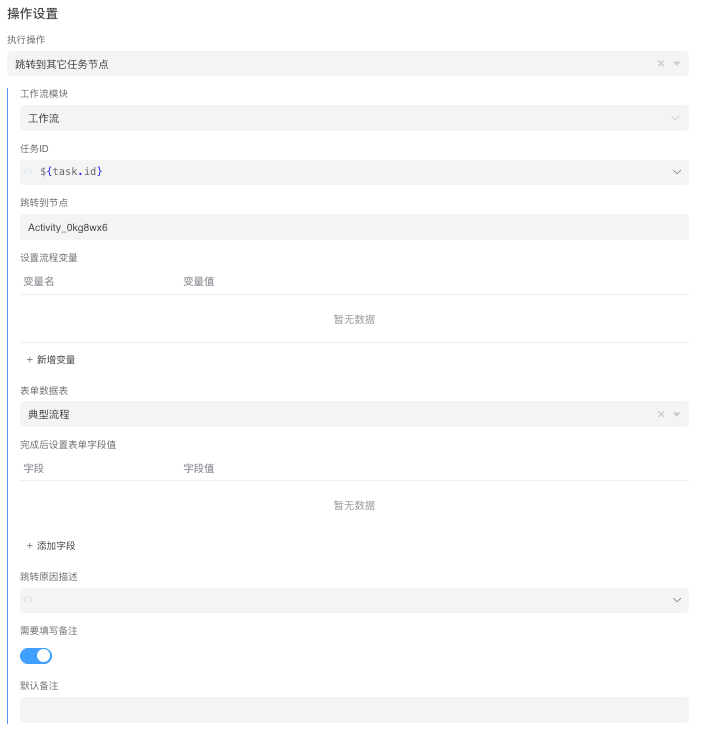

Node Activity_0kg8wx6 is HR Communication Hiring Details

Send Hiring Notification

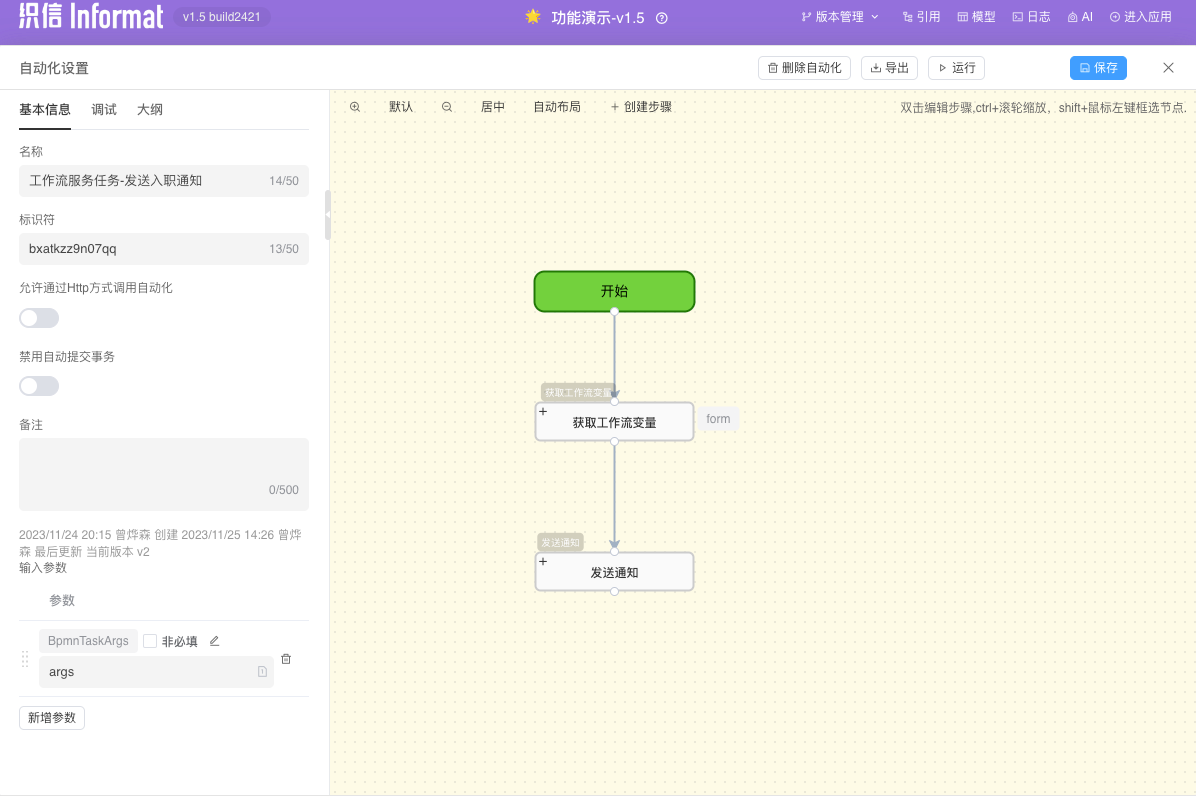

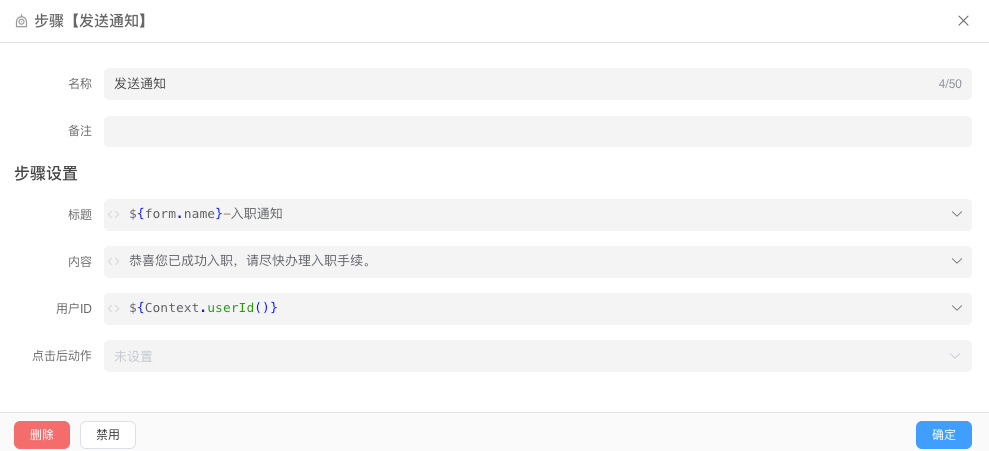

This node is a service task that will automatically call the automation, with the input parameter BpmnTaskArgs. No manual intervention is required. This example uses the built-in notification function in the Weixin system. If you need to use the SMS notification function, you can support it through third-party API services.

Fill in Hiring Details and Process Hiring Procedures

Use a parallel gateway to handle the nodes Fill in Hiring Details and Process Hiring Procedures in parallel. Task Settings:

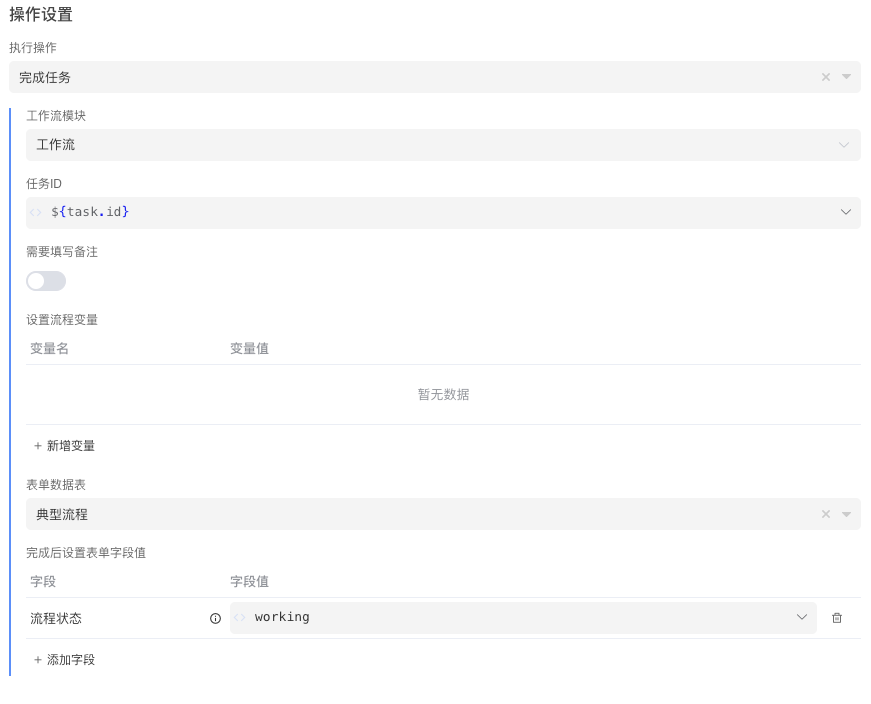

Effectiveness

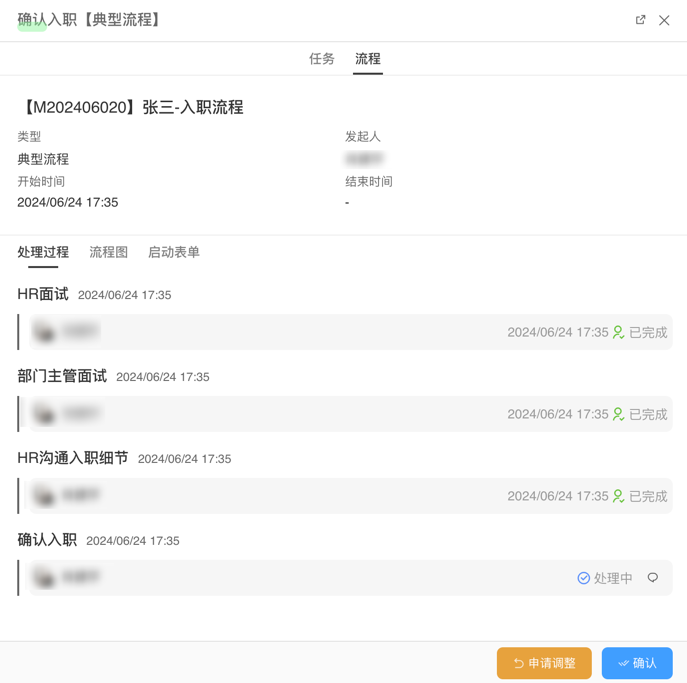

Application Form: Process Information:
