Handwritten Signature

Description

Item	Content
Category	Control
Storage Type	TableSignature
Sortable	No
Filterable	No

Settings

Setting	Description
Allow Empty	Set whether the field is required
Allow Multiple Signatures	When enabled, multiple signatures can be uploaded. Changing this will change the storage type of the field
Signature Color	Can set the color of the signature stroke
Signature Display - Width (pixels)	Can set the display width of the signature image, range: 32~10240
Signature Display - Height (pixels)	Can set the display height of the signature image, range: 32~10240

Notes

Because the storage types for single signature and multiple signatures are different, enabling/disabling "Allow Multiple Signatures" may result in partial data loss. Please operate with caution.

Storage Format in Database

Field Type	Description
jsonb	Stores JSON format data, JSON structure see below

In the data table, handwritten signature field data is stored in JSON format. If multiple signatures are allowed, it is stored as a JSON array. The JSON structure is as follows:

interface TableSignature {
  id: string; //ID
  accountId: string; //Account ID
  accountName: string; //Account Name
  uploadTime: Date; //Upload Time
  path: string; //Path
}

Example 1: Data stored when multiple signatures are not allowed (single selection)

{
  "accountId": "skydu2",
  "accountName": "skydu2",
  "id": "vyu0art5s0reflpad09v7.jpg",
  "path": "otxlyqyjacgnx/sr7gnmk90asb2/vyu0art5s0reflpad09v7.jpg",
  "uploadTime": 1721359223688
}

Example 2: Data stored when multiple signatures are allowed (multiple selection)

[
  {
    "accountId": "skydu2",
    "accountName": "skydu2",
    "id": "or3yjjhn0bf98f5uy6j6n.jpg",
    "path": "otxlyqyjacgnx/ffr7s7spbxb76/or3yjjhn0bf98f5uy6j6n.jpg",
    "uploadTime": 1721295355794
  },
  {
    "accountId": "skydu2",
    "accountName": "skydu2",
    "id": "ng326htx6ob2ci2c8e7zv.jpg",
    "path": "otxlyqyjacgnx/ffr7s7spbxb76/ng326htx6ob2ci2c8e7zv.jpg",
    "uploadTime": 1721295370334
  }
]

File Storage Method

After a handwritten signature is uploaded, it is saved using the shared storage service. The system creates folders for different fields based on the application, data table, and field. The folder naming rules are as follows:

companyId/appId/tableId/fieldId

• companyId Team ID
• appId Application ID
• tableId Data Table ID
• fieldId Field ID

Note

The above IDs are all internally generated system IDs, not identifiers.

Access Path

The access path rules for handwritten signature images are as follows. A user token needs to be passed.

Access via handwritten signature path

https://host:port/web${cluster}/file/field/${appId}/${path}?token=${token}

Access via handwritten signature ID

https://host:port/web${cluster}/file/field/${appId}/${tableId}/${fieldId}/${fileId}?token=${token}

Access via module, field identifier, and handwritten signature ID

https://host:port/web${cluster}/file/fieldkey/${appId}/${tableKey}/${fieldKey}/${fileId}?token=${token}

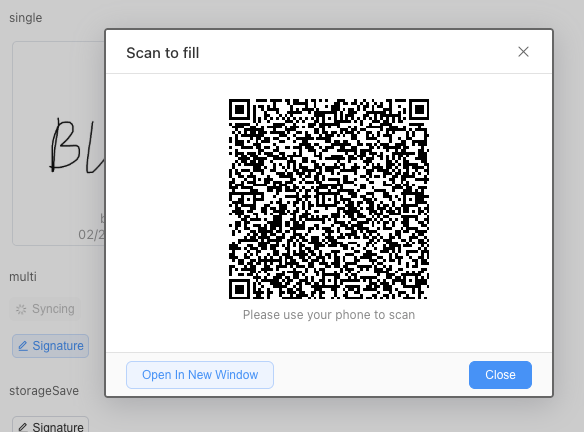

Display Effect
