Data Table View

A data table view is a form of data presentation that provides features like pagination and search. By selecting the appropriate data view, the usability of the system can be enhanced. The Zhixin platform includes multiple built-in view types, including but not limited to the following

View Type	Description	PC Display	Mobile Display
Table View	Displays data in table format	✓	✓
Card View	Displays data in card format	✓	✓
Calendar View	Displays data in calendar format	✓	✓
Gantt Chart View	Displays data in Gantt chart format	✓	–
Kanban View	Displays data in Kanban board format	✓	–
Tree View	Displays data in hierarchical tree format	✓	–
Resource Calendar	Displays data in resource calendar format	✓	–
Timeline View	Displays data in timeline format	✓	–
Map View	Displays data on a map	✓	–
Folder View	Tree-structured folder-style display	✓	–
Custom View	Displays data via custom web page	✓	✓

TIP

Each data table will have a default table view associated with it.

View Page Structure

A view page is mainly composed of a common area (which includes the combined filter conditions, toolbar, and filter conditions) and a view display area. The common area is shared across all views; the difference between views lies in the view display area.

• Combined Filter Conditions：Displays the combined filter conditions label
• View Toolbar：Sets multiple controls, such as create button, delete button, etc.
• Filter Conditions：Filters data based on fields. Multiple filter conditions are connected with AND logic.
• View Display Area：Displays different content based on the view type.

Filter Conditions

View filters support three main types: Field Filter, Combined Filter, and URL (address-bar) Filter, and also allow pagination style settings.

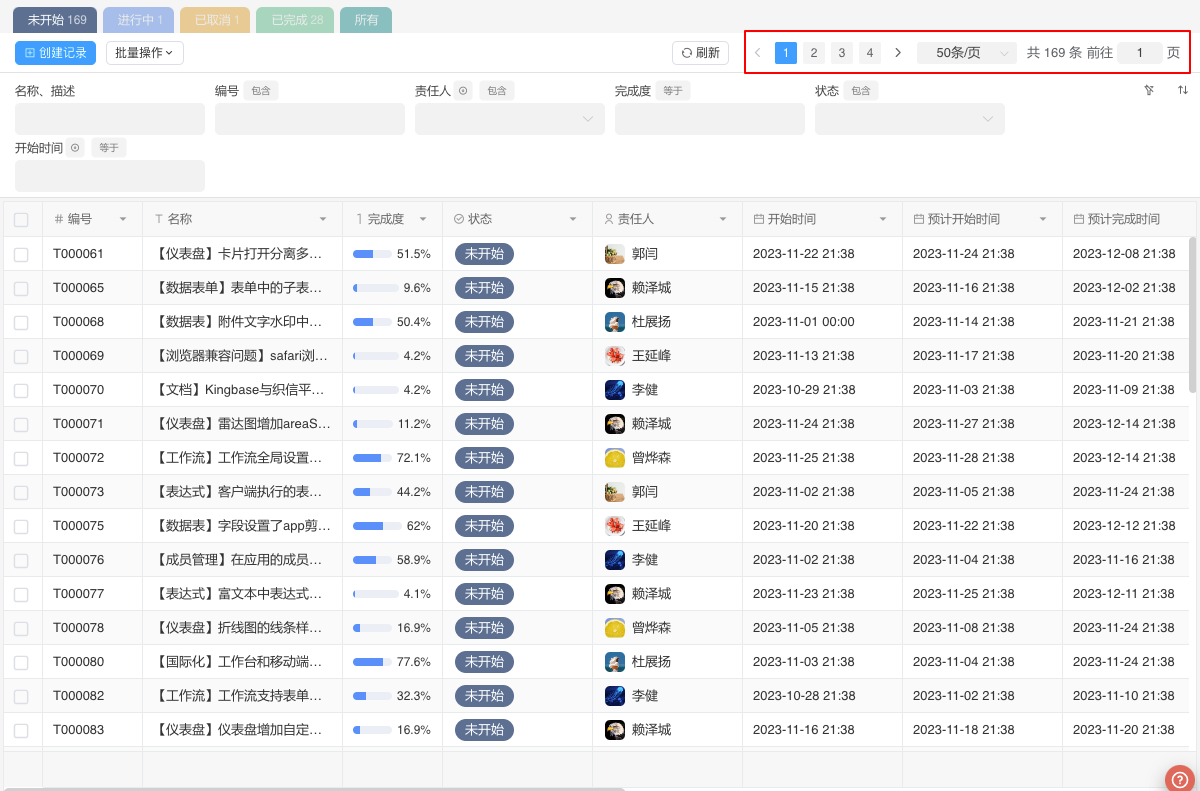

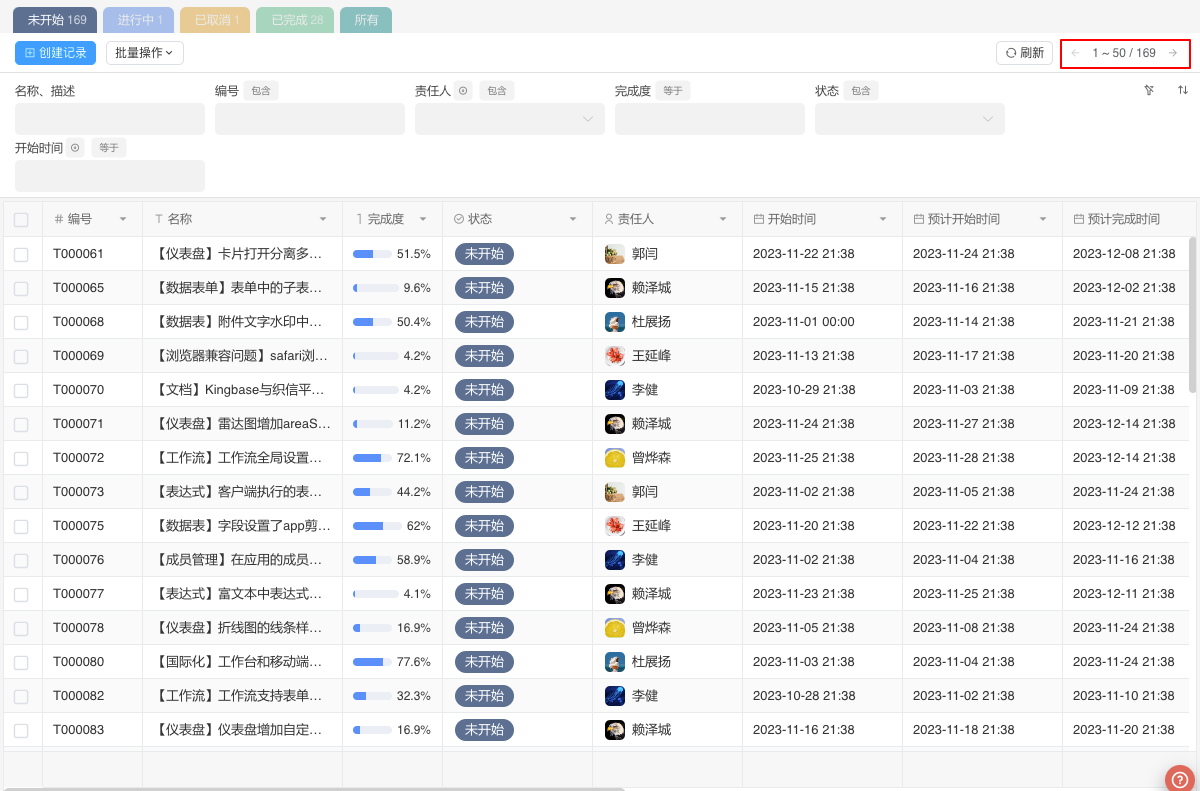

Pagination Style

Pagination style supports simple and classic modes.

Field Filters

Field filters are mainly used for self-filtering of data.

Disable Filter Condition Caching

By default, the system records the last filter conditions for each view, allowing users to preserve the last filter conditions when revisiting the module. Enabling this setting will initialize the filter conditions every time the module is accessed.

Use the Following Fields as Filters

Set multiple field-based filters or combined "fuzzy search" filters for text-type fields. The configured fields will appear in the view's Filter Conditions area after the app is published.

Filter Condition Logic

Multiple filter conditions are connected with AND logic.

If you set name and gender as filter fields, and the user inputs zhangsan in the name filter box and sex in the gender filter box, the actual filtered data will be name is zhangsan and gender is man. :::

Dynamic Filter Values

The list of candidate values for filter conditions can be configured by invoking an automation, enabling fine-grained control over the visible data permissions for field filters in personalized scenarios. Within the automation, simply use the “Set Automation Return Value” step to return the list data that will serve as the dynamic candidate values.

The data structure for dynamic candidate values of each field type is as follows:

Member-type fields include “User Selection,” “Created By,” “Last Updated By,” and similar field types; the returned structure is Array"User". Example:：

[
  {
    // Avatar
    "avatar": "pic16.png",
    // User Name Pinyin - Quick Search Input Box
    "hint": "wangyanfeng",
    // User ID
    "id": "lwfwqr67xsvup",
    // User Name - Quick Search Input Box
    "name": "mr.li",
    // User Remark - Quick Search Input Box
    "remark": "mingsi.li"
  }
]

List-select fields include “List Selection” and similar types; the returned structure is Array<String>, with each array element being the identifier of a list option. Example:

List-select Option Values：

Option Value	Identifier
Not Started	unstart
In Progress	progress
Completed	complete
Canceled	cancel

Using Automation to Return Option ID List：

["unstart", "progress"]

Then the drop-down list will only displayNot Started、In Progress

For more detailed information, please refer toList SelectionField example

Related type fields include Related Records and Related Lists types; when users click the search button, the system will default to passing QueryCondition type data to the automation.

QueryCondition The structure is as follows：

Attribute	Type	Description
pageIndex	Integer	Current page number
pageSize	Integer	Number of records per page
searchTableId	String	ID of the data table to query
searchFilterId	String	ID of the filter applied to the queried table field
childrenFieldId	String	Field used to build the tree structure
childrenShowFullPath	Boolean	Whether the tree structure returns full-path data
childrenLevel	Integer	Depth level of data returned in the tree structure
orderByList	Array	Sorting fields
filter	ViewFilter	Filter conditions
filterVars	Object	Context variables available for the filter conditions

The structure returned by the automation is as follows:

/**
 * Pagination result
 */
interface PagedResult {
  // Total number of records
  count: Number;
  // List of displayed data records
  list: Array<Record>;
}

For more detailed information, please refer toRelated RecordsField example

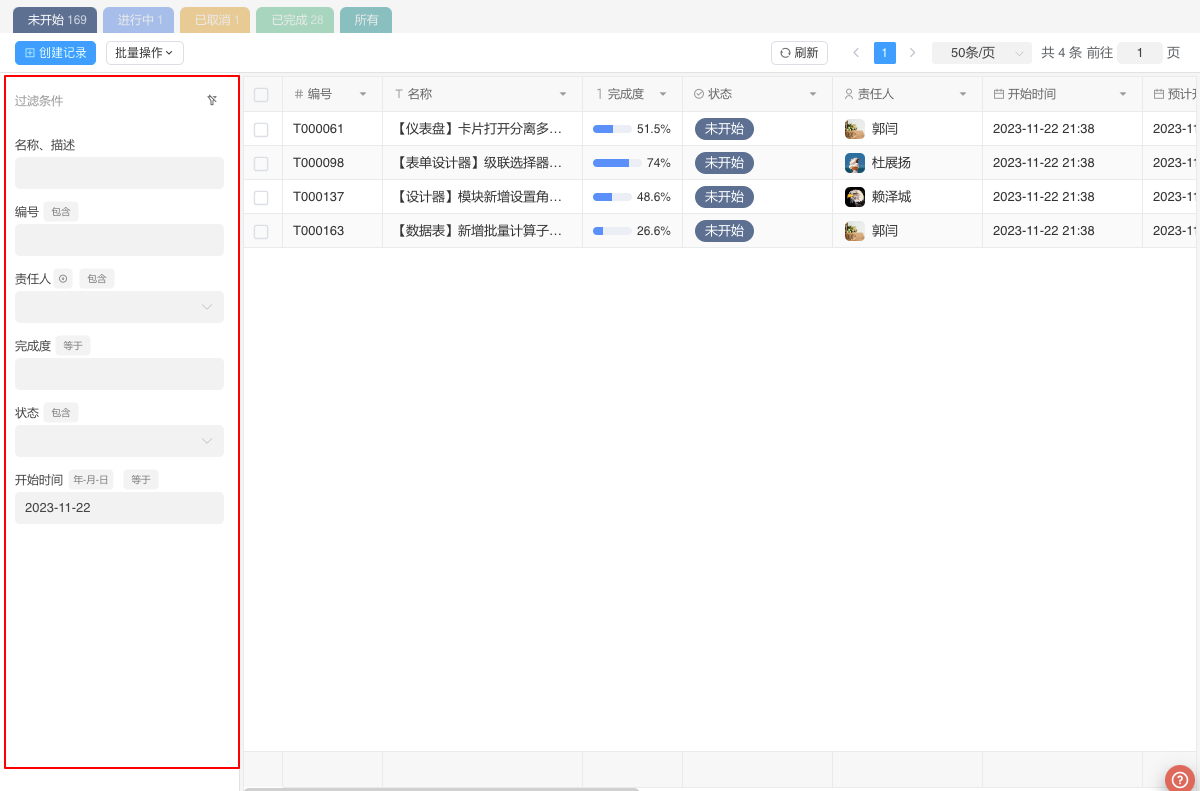

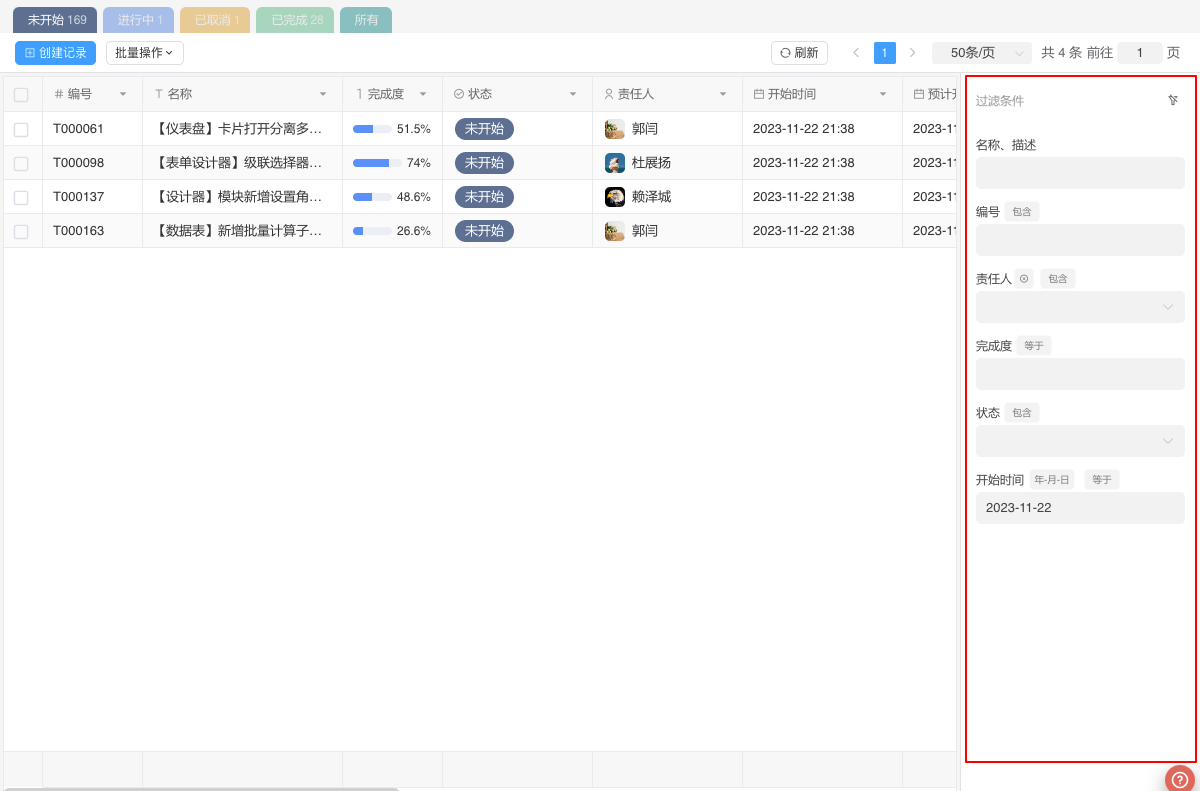

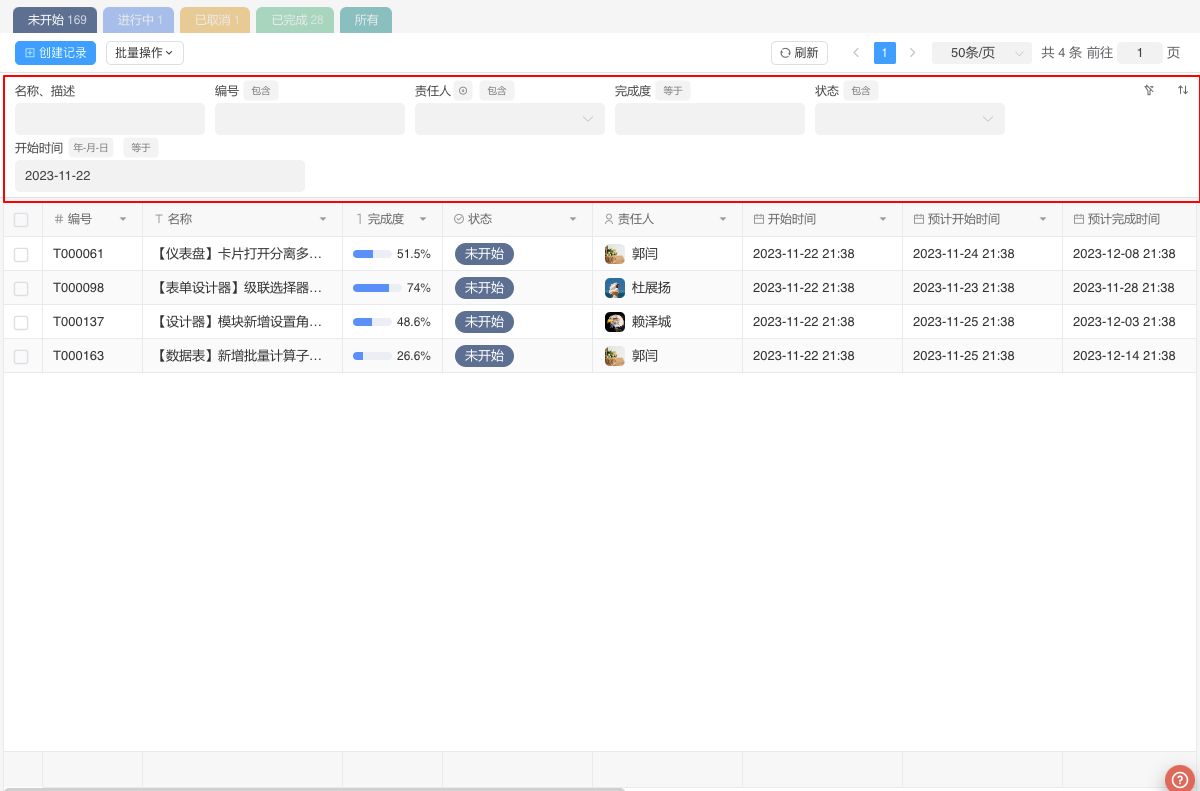

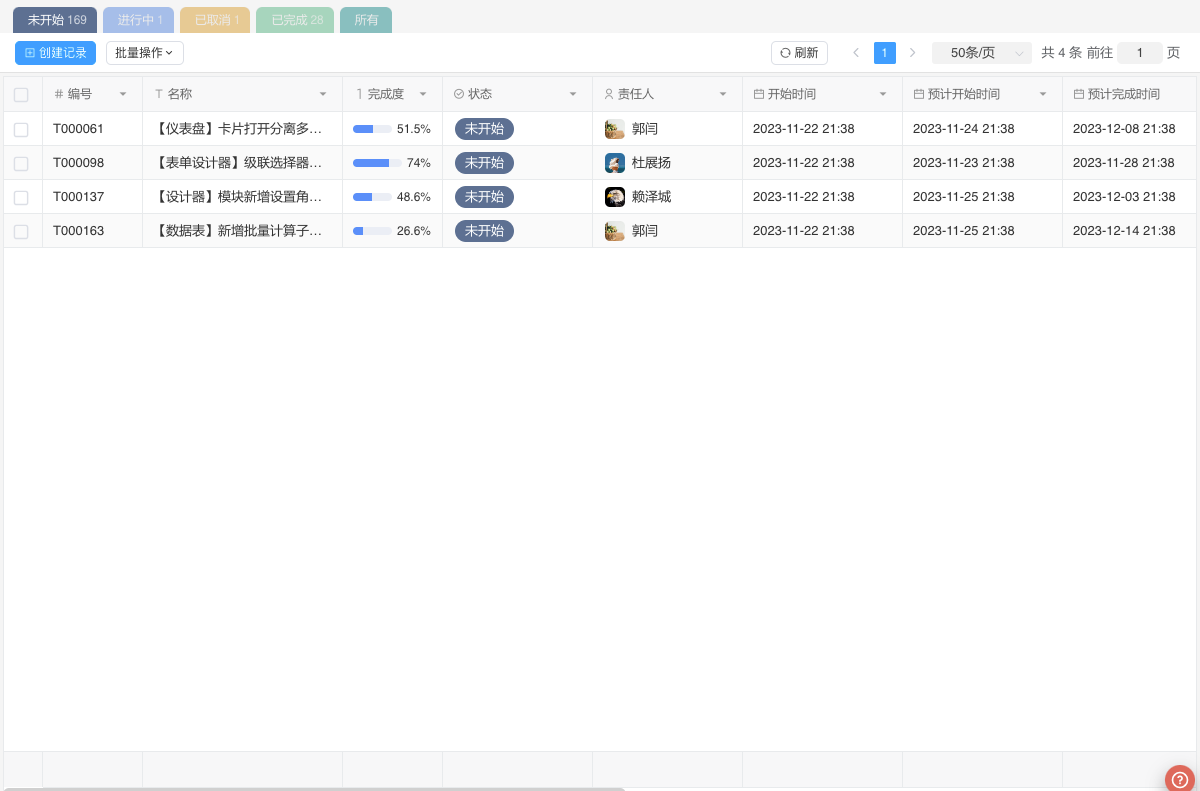

Filter Condition Display Position

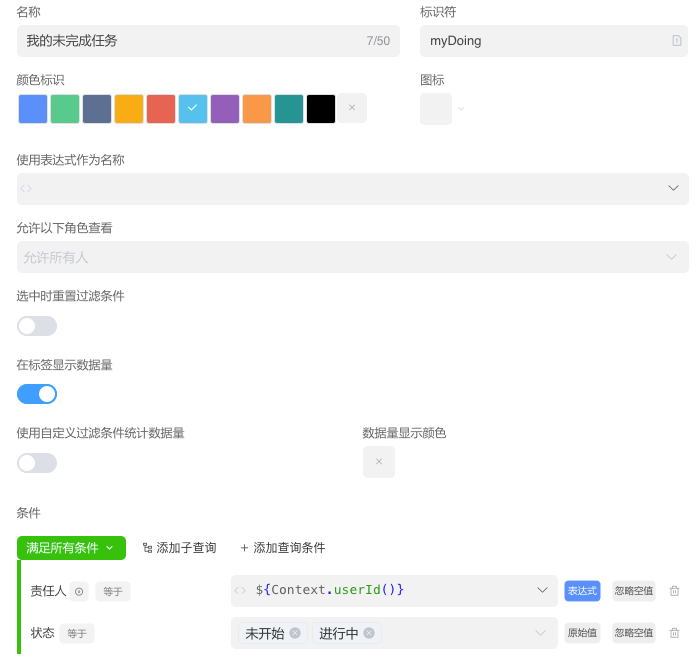

Combined Filter Conditions

Combine filtering rules from one or more fields into a single filter condition. For example, in a task-management scenario the filter “My Unfinished Tasks” is created by combining: Task Status equals “Not Started” or “In Progress” Assignee equals current user Settings for configuring such combined filter conditions:

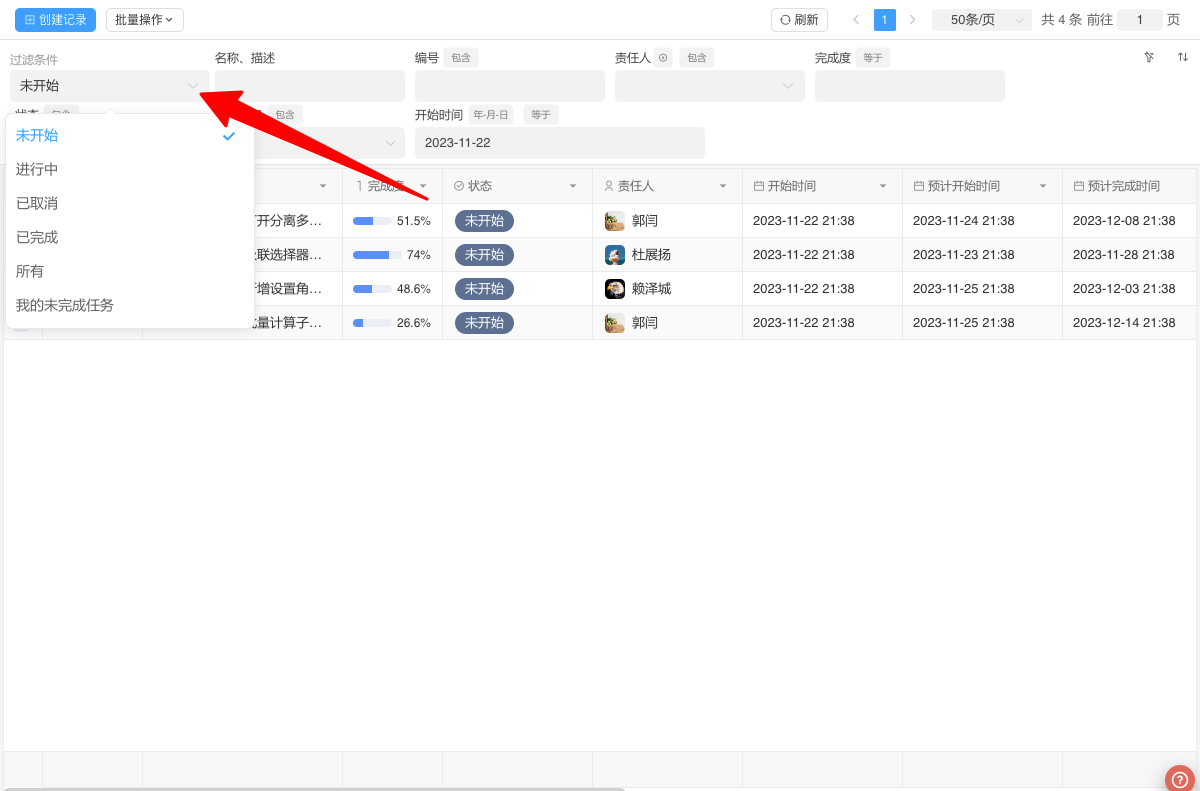

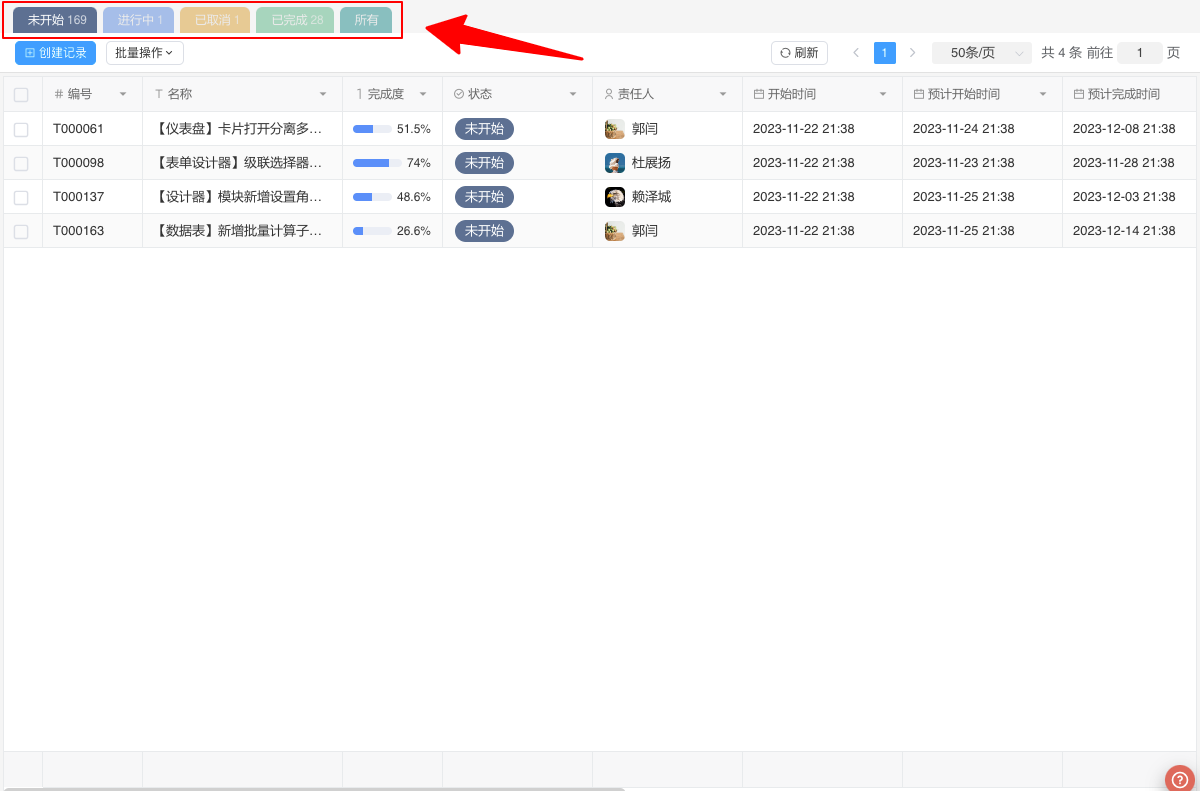

Combined Filter Condition Display Position

URL Filter Conditions

If you want to control the page filter through the page URL, you need to set up URL filter conditions. The process of URL filtering is as follows:

1. Pass it in the address-bar parametersfilter={filterId}&c1=1&c2=abc

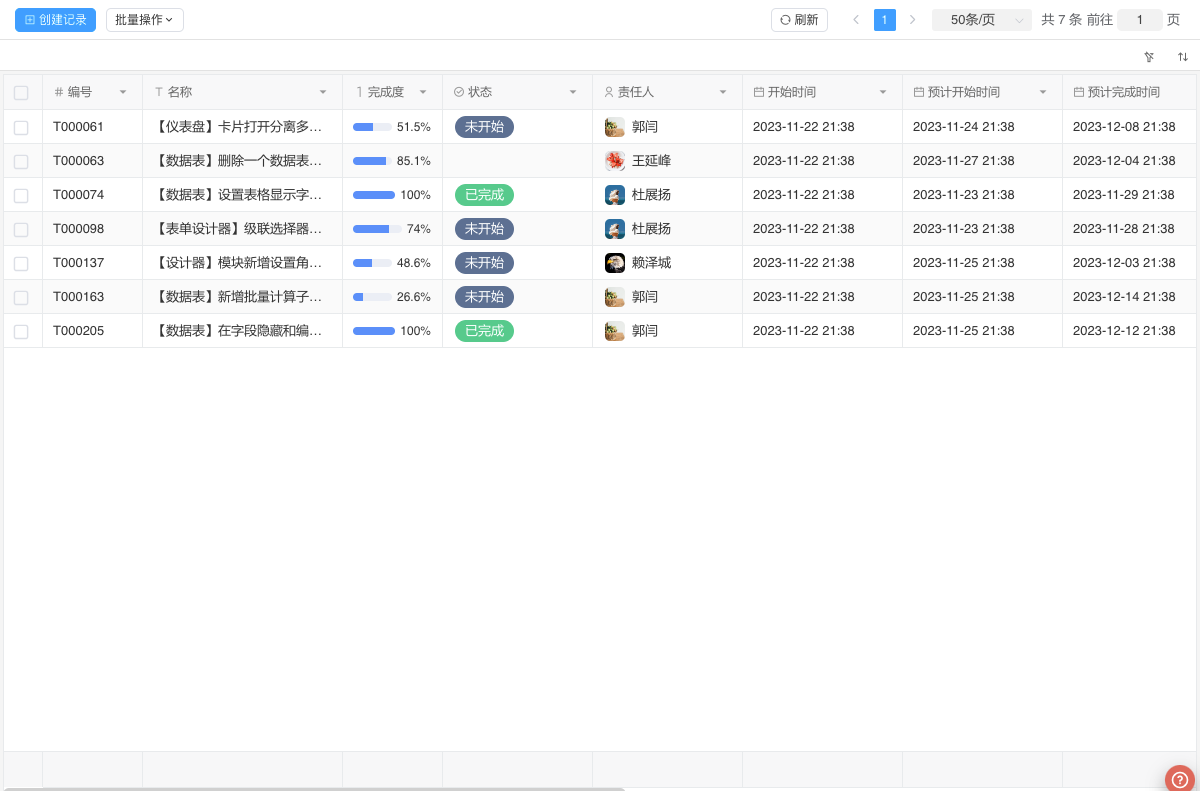

2. The returned data will be filtered by the address-bar combined condition whose identifier is filterId; the parameter is converted into a JSON object and passed to the filter of the filtering condition, and its value can be retrieved in the filter expression via ${query.c1}.

const query = {
  c1: "1",
  c2: "abc",
};

WARNING

All values in the passed parameter object are of String type; if they do not match the type of the field to be filtered, perform the necessary type conversion yourself.

Example

To filter tasks whose "Progress" is greater than or equal to the address-bar parameter minComplete, this example requires type conversion because the "Progress" field is of decimal type. When the user enters filter=min&minComplete=20 in the address bar, tasks with "Progress >= 20" will be filtered.

Relationship between Multiple Filter Conditions

If you set Address-bar Filter Conditions, Combined Filter Conditions, and Field Filter Conditions on the page, the relationship between these conditions is all conditions must be met. For example, in a task-management scenario:

• Address-bar Filter Conditions set Progress >= 20
• Combined Filter Conditions set Status = Not Started or In Progress and Assignee = Current User
• Field Filter Conditions set Start Date > Today

Return resultProgress >= 20 and Assignee = Current User and Status = Not Started or In Progress and Start Date > Today tasks.

Tree Structure

For data tables with a hierarchical structure, the relationship between records can be described through a Children field. After enabling tree display, the view will query data in tree form and pagination will be disabled. You can configure both the default load level and the default expand level for the tree.

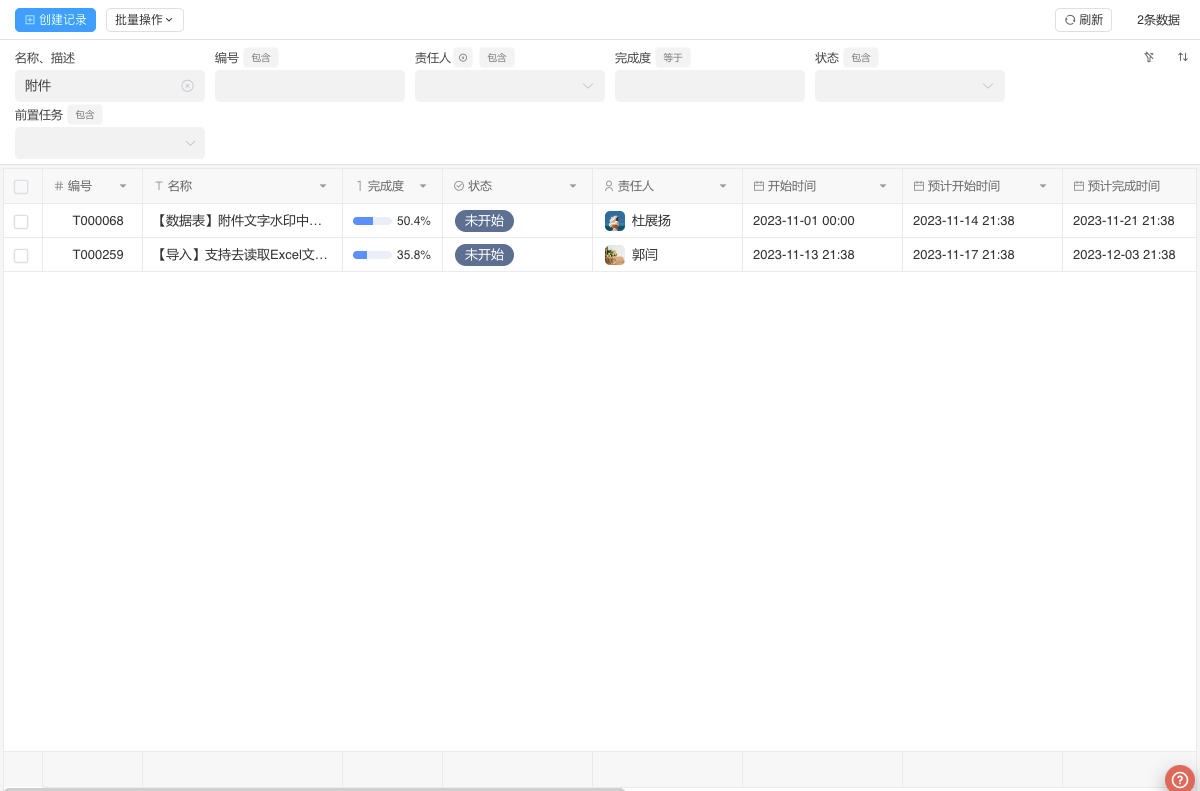

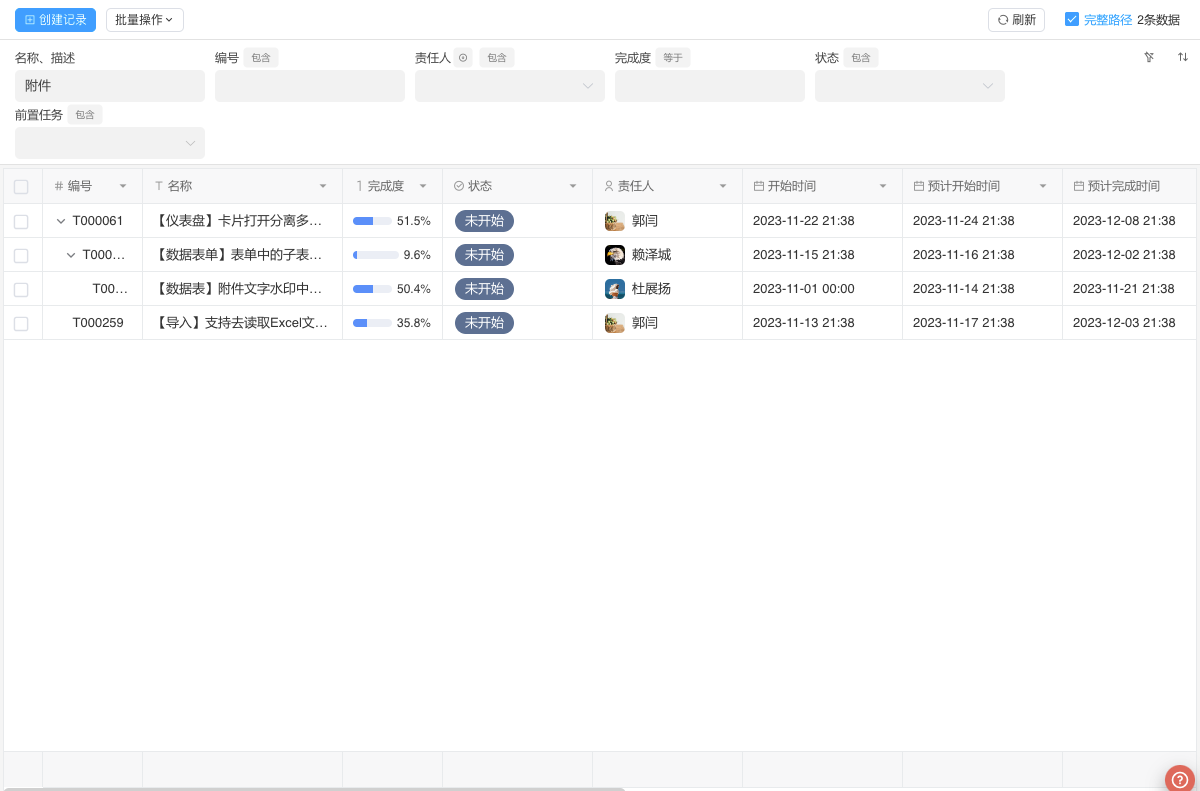

Allow Search Results to Include Parent Nodes

After enabling the tree structure, if you want the query results to always show the parent nodes—i.e., the results will contain the complete tree starting from the root node—turn on this option. Once enabled, users can control whether the full structure is displayed via a checkbox in the view toolbar.

Example

The example below illustrates the difference between including and excluding parent nodes after a user performs a search.

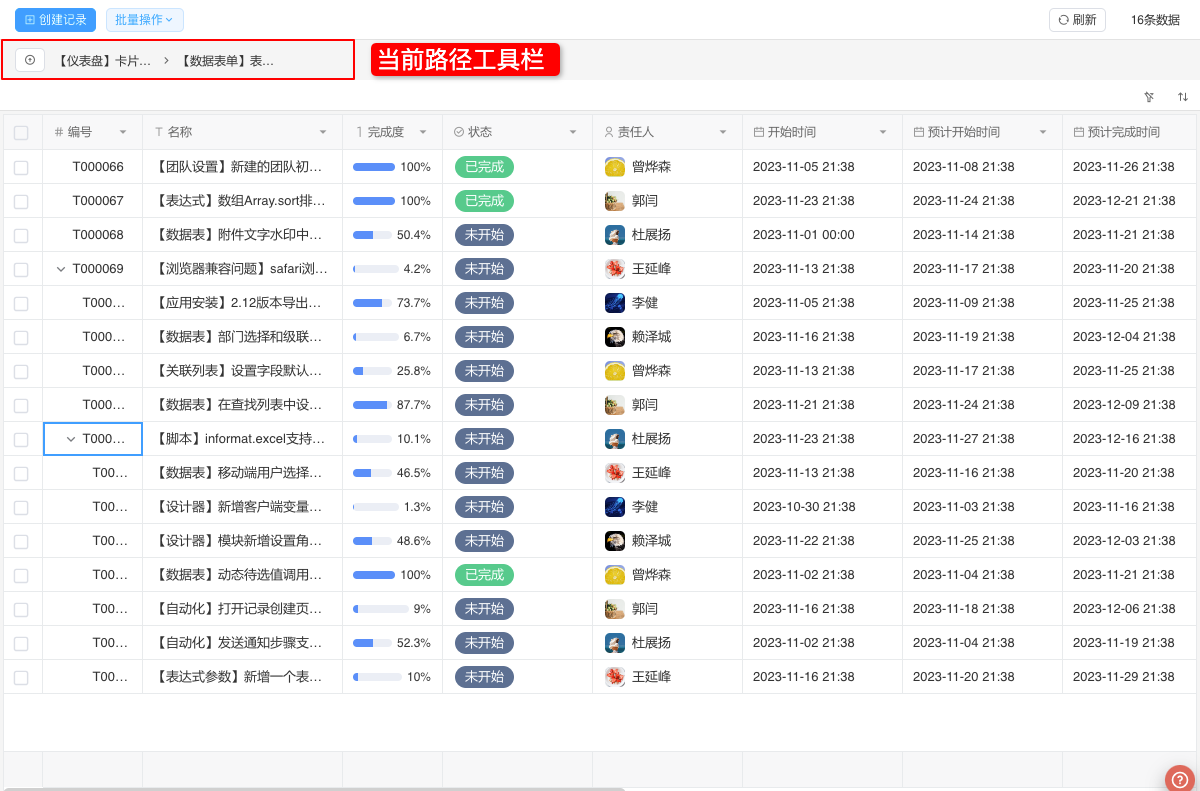

Show Current Path Toolbar

After enabling the tree structure, turn on this option if you want breadcrumb navigation to appear when you descend into a child node. Once enabled, a breadcrumb bar is generated below the view toolbar using the configured “path-toolbar display name field,” letting users jump quickly to any parent node.

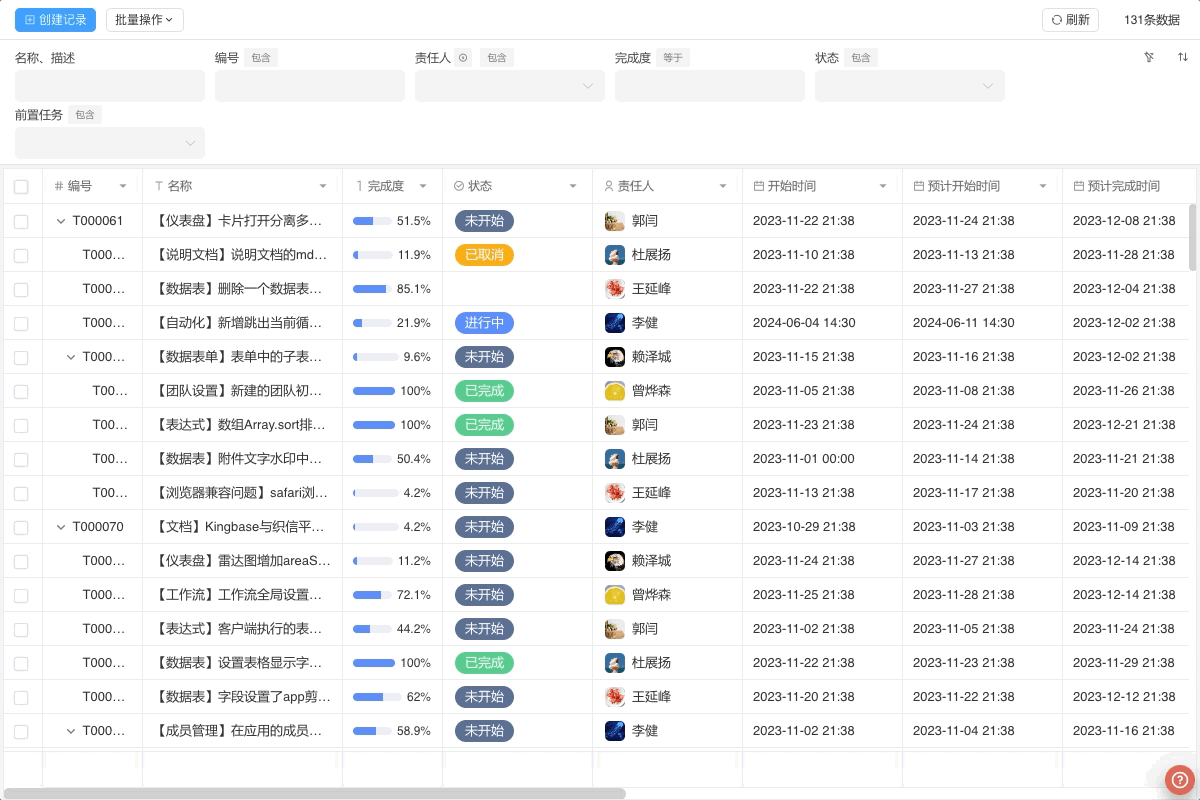

Show Subordinate Button When Conditions Met

By default, the system displays a subordinate button for each record. Users can click this button to view the subordinate data of the current record. You can use an expression to control whether this button is shown or hidden. The example below demonstrates the effect when the user clicks the subordinate button.

Enable Asynchronous Loading of Subordinate Data

After enabling this option, the system will load the subordinate data of the current node asynchronously. The level of loading is determined by the Default Load Level setting.

Show Async Load Button When Conditions Met

You can use a context expression to determine whether the current node should display the async load button. Only when the condition is met will the button be shown.

Call Automation to Return Subordinate Data

After calling the automation, you can use the Set Automation Return Value step in the automation to return the subordinate data list. The data type is Array<Object>.

TIP

For automations whose runtime environment is set to Client, you can use the Interactive Output step within the automation to drive user-interaction behaviors.

Attention When Returning Subordinate Data

• The sub-item attributes of the returned subordinate data must match the field identifiers of the columns in the current view's data table.
• The returned subordinate data will be automatically appended to the current node, even if the parent of the returned records is not the current record. Therefore, when building a tree structure, you need to pay special attention.
• The returned subordinate data does not support tree structure internally. If the returned data is in tree structure format, the system will not render the subordinate data of the child nodes.

Example

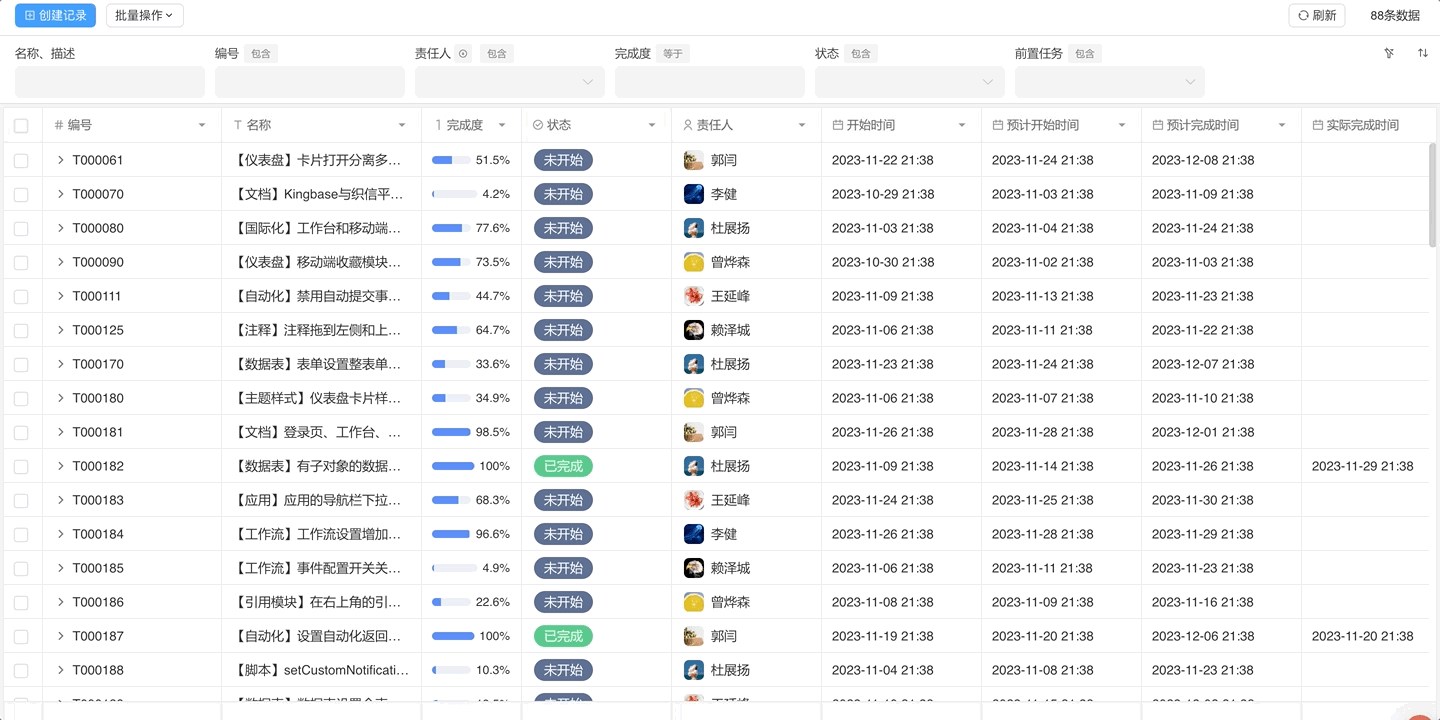

We will demonstrate how to configure a tree-table that loads child objects asynchronously.

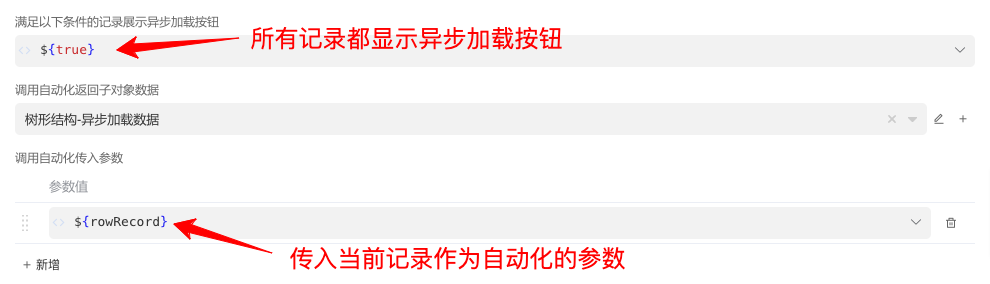

Basic Settings

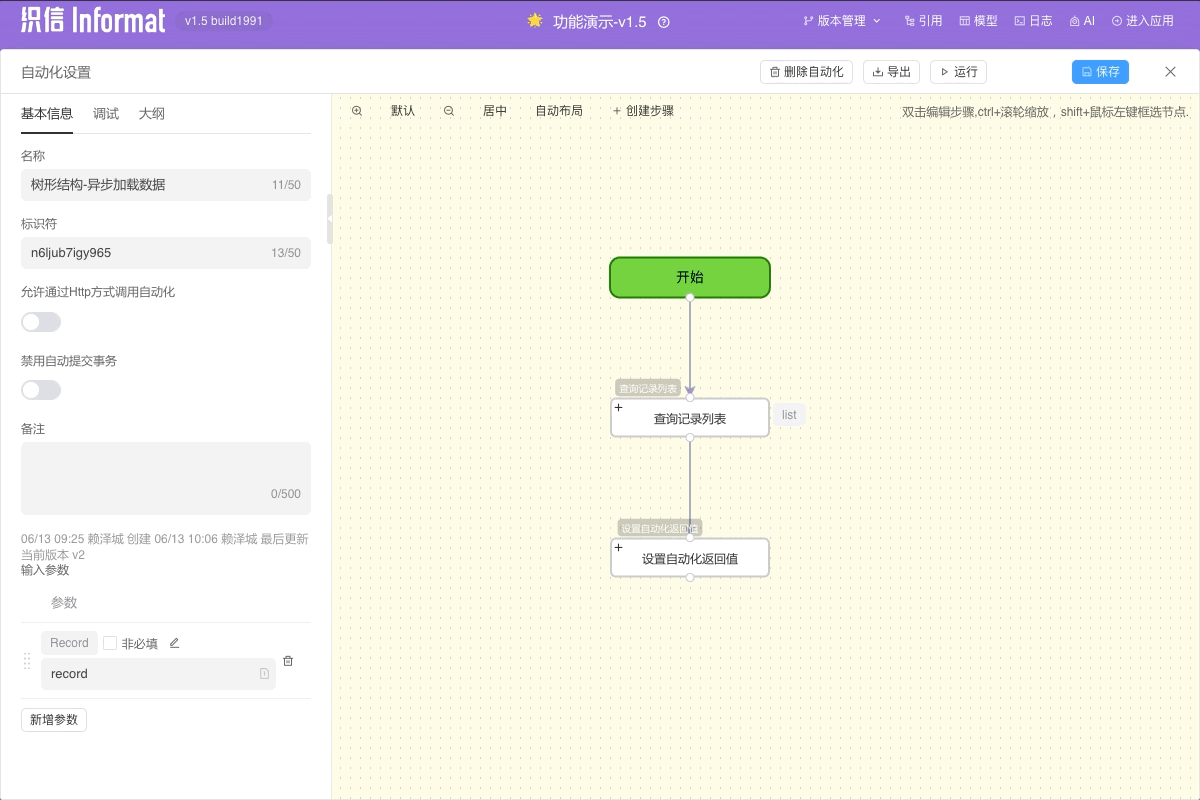

【Tree Structure – Async Data Loading】Automation

By passing in the record parameterrecord，QuerySubtaskParent object equals${record.id}records，Set Automation Return Valuereturns the data

Data Filtering and Sorting

By default, a view loads all records. You can restrict the data shown in the view by setting a filter under “Only display data that meets the following conditions.” For example, to show only unfinished tasks in task management, add a filter condition where Task Status equals “Unfinished.”

TIP

Only display data that meets the following conditions is a logical AND operation. All filter conditions must be met for a record to be included in the view.

Return the Following Fields

For systems with high data-security requirements, you can define a field-return list to restrict exactly which columns the server sends back to the client. This prevents data leakage at the API level and also optimizes query performance.

By default, the system returns only the data fields specified in the Return Field List. You can also enable Use Expression to Set Return Field List to determine that list dynamically at runtime.

Use Expression to Set Return Field List

This expression runs in the Server environment. The form-style result must be a list of field identifiers. You can either: keep it simple and return the list directly from the expression, or make the expression invoke a script or automation for more flexible control of the returned data. Below is a concrete example.

staffSalaryStructure

Identifier	Type	Description	Field ID
name	Single Line Text	Name	tzyjhya8xv32j
mobileNo	Single Line Text	Contact Phone	m0e2wkyo2cklu
salary	Decimal	Salary	qo43drhw00fmr

According to the settings, the salary field must not be returned.

Return

${['name', 'mobileNo']}

Use an expression to compute and incorporate logical operations.

${
    Array.containsAny(user.roleList, ['hr'])
    ?
    ['name', 'mobileNo', 'salary']
    :
    ['name', 'mobileNo']
}

Invoke an automation to return the field list.

${Misc.invokeAutomatic('getStaffSalaryFieldListByUser', user)}

Example

By using the “Use expression to set return field list” option and setting the returned fields to ${['name', 'mobileNo']}, if the salary column is still shown on the front-end, the result will look like this:

TIP

All data-table data returned by system APIs is keyed by field ID, as illustrated in this example with the “query data-table record list” endpoint.（TableAction.queryModuleRecordList） API

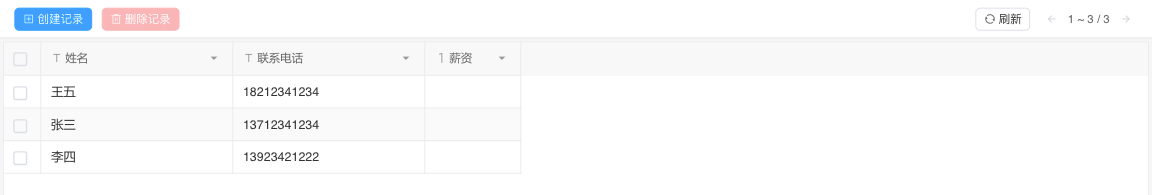

Since the salary field is not returned, the salary column is empty in the view.

The system API call to query the data-table record list (TableAction.queryModuleRecordList) does not include the salary field (field ID: qo43drhw00fmr).

{
  "count": 3,
  "list": [
    {
      "m0e2wkyo2cklu": "18212341234",
      "id": "fzc08h71woz81",
      "seq": 1,
      "tzyjhya8xv32j": "wang"
    },
    {
      "m0e2wkyo2cklu": "13712341234",
      "id": "xyq992g13oprm",
      "seq": 2,
      "tzyjhya8xv32j": "zhang"
    },
    {
      "m0e2wkyo2cklu": "13923421222",
      "id": "j3ba3sqwets7n",
      "seq": 3,
      "tzyjhya8xv32j": "li"
    }
  ]
}

Only display data that meets the following conditions

This field controls which records are shown in the current data-table view and is typically used for data segregation. For example, when “My Tasks” exists as a view in task management, you can set Assignee equals ${Context.userId()} here to achieve view-level data isolation.

TIP

Only display data that meets the following conditions with other filter conditions has a logical relationship of satisfy all conditions.

Default Sorting Order

By default, the system sorts data by the record creation time in ascending order. You can change this behavior by setting Default Sorting Order.

Allow Sorting by the Following Fields controls which columns users can sort the data by. If users set multiple sorting fields in the view, the system sorts the data by the fields in the order they are displayed in the view.

Sorting Relationship

If both Default Sorting Order and Allow Sorting by the Following Fields are set, users can sort the data by the fields specified in Allow Sorting by the Following Fields.

If users set multiple sorting fields in the view, the system sorts the data by the fields in the order they are displayed in the view.

Example

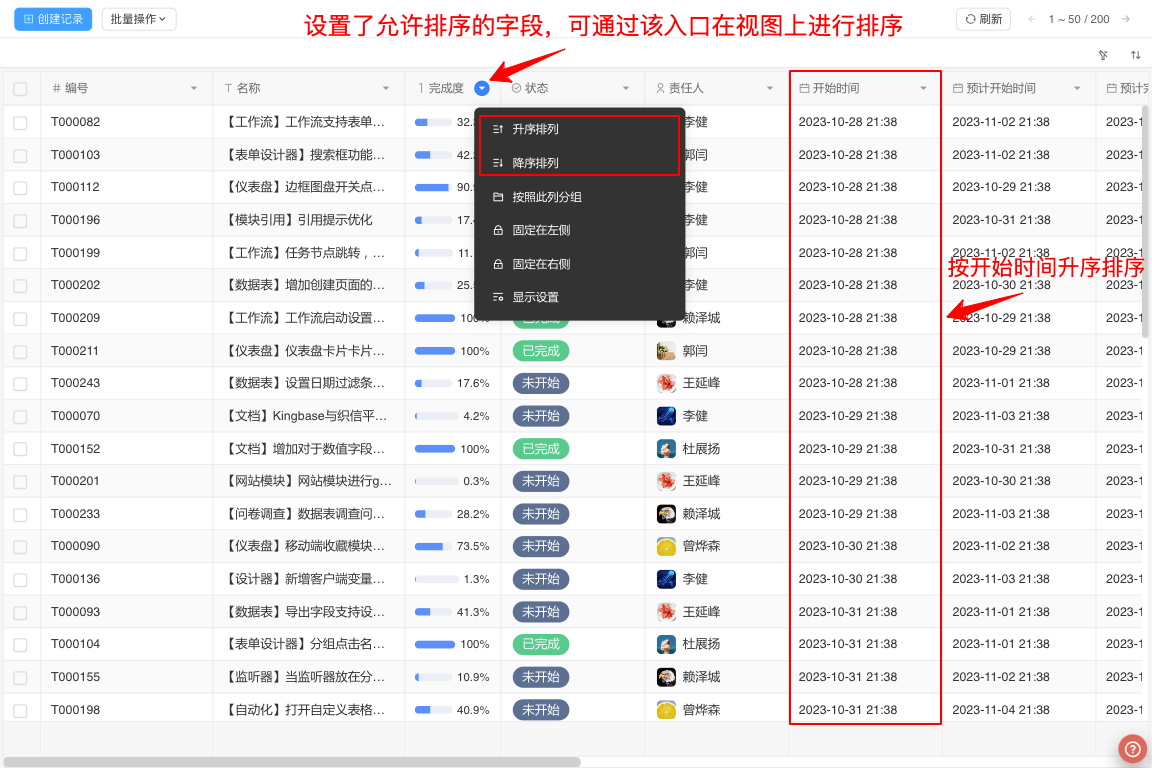

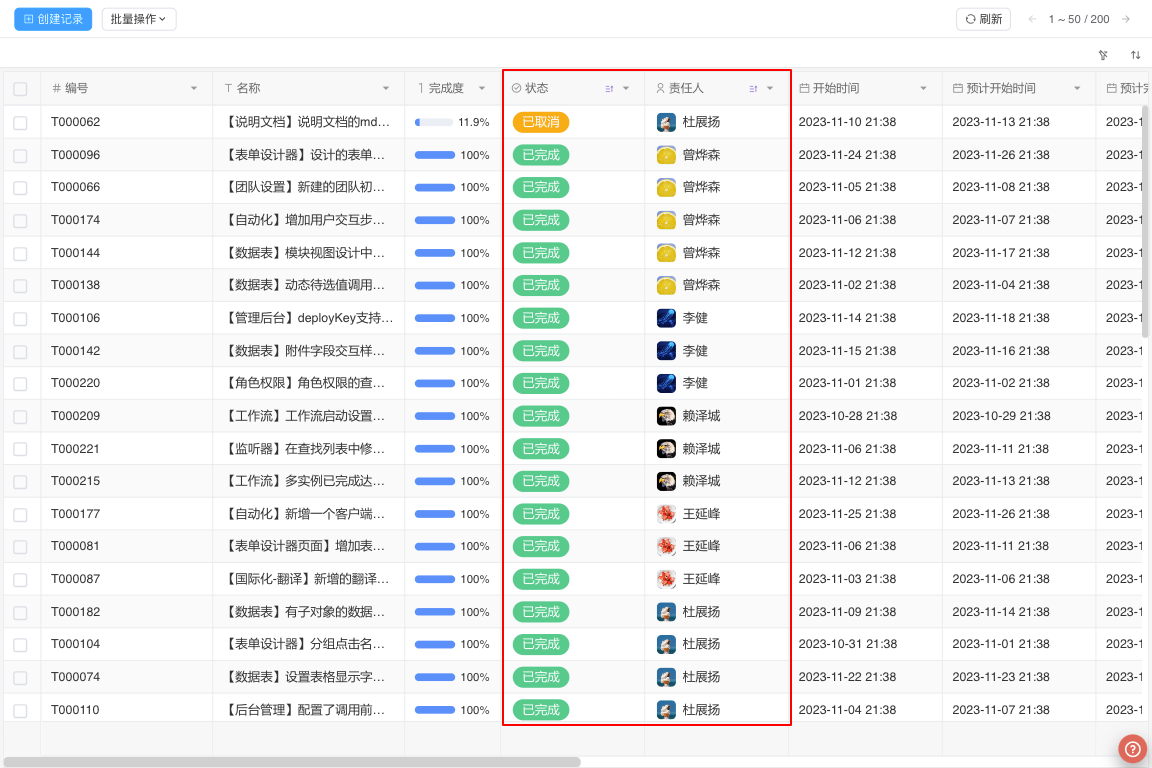

In the example, “Start Time Ascending” is set as the default sort order, and sorting is also allowed by Status, Progress, Assignee, etc. We’ll use this example to explain the sorting logic within the system.

Although the user first set “Assignee Ascending” and then “Status Ascending”, the system always uses the column display order in the view as the sort-priority order. Since the Status column is positioned before the Assignee column, the final sort rule is: Status ascending Assignee ascending

Query Data Pre-Processing

If we need to perform unified data permission control before querying data, we can use Query Data Pre-Processing to dynamically set the data table's filter conditions based on the context.

In the process of querying view data, the system will first call the set automation and pass a parameter of type TableQueryEvent to the automation. If the automation or script throws an exception, the query action will be terminated.

If a TableQueryBeforeResult type automation returns a value, the system will append or replace the original filter conditions based on the return value.

TableQueryBeforeResult structure:

Name	Description
mode	Filter-condition merge mode append – add to existing filters replace – overwrite existing filters
filter	Filter condition, type InformatFilter

mode Options

Mode	Description
append	Adds the new filter conditions (default).
replace	Replaces the original filter conditions with the new ones.

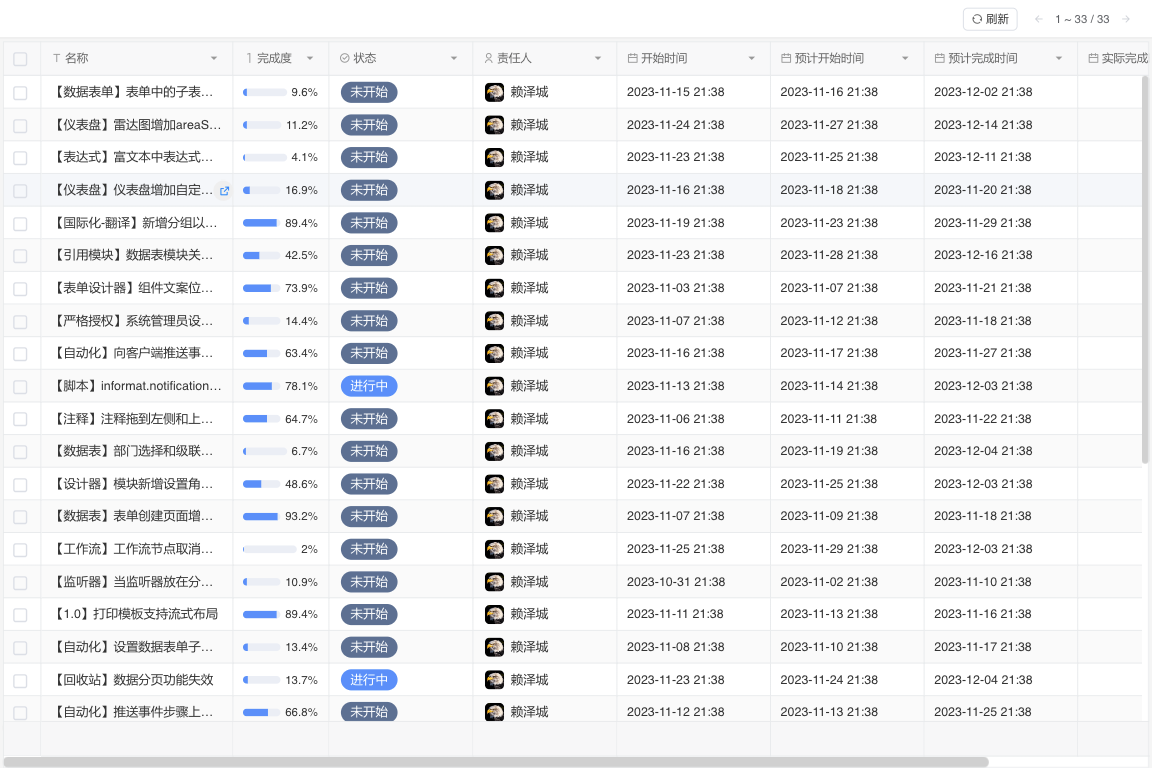

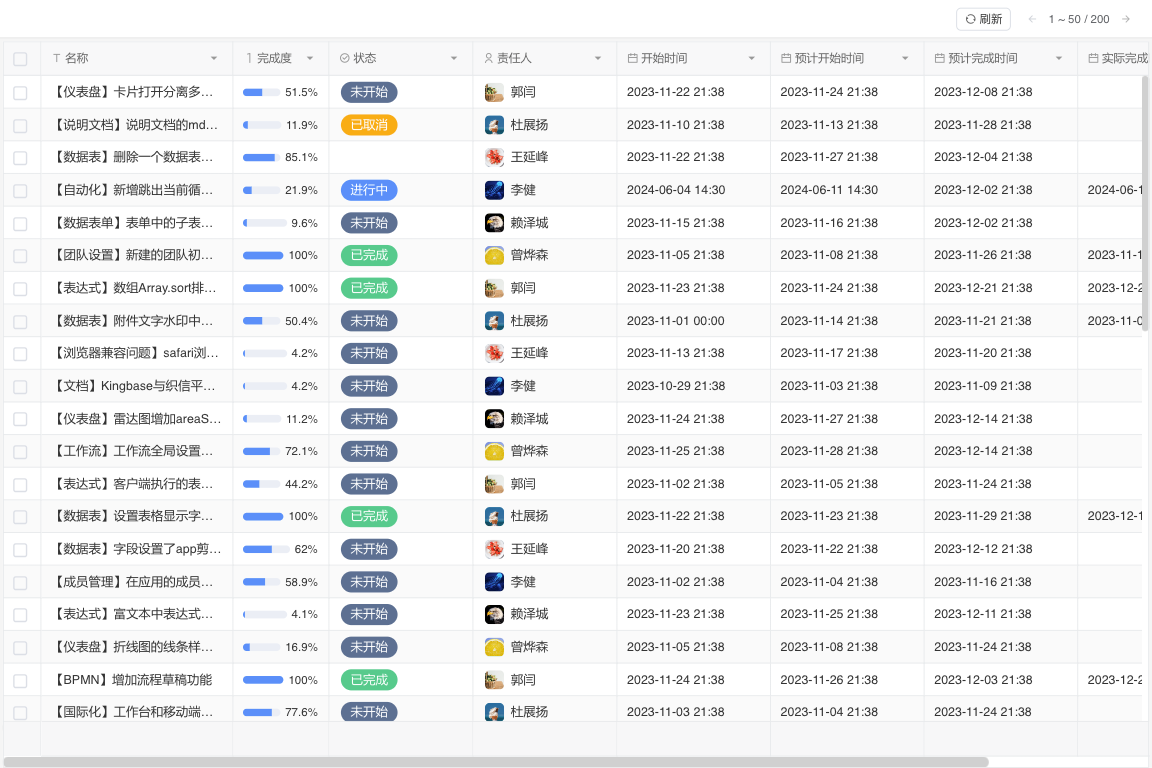

Below, we use task management as an example: users with the roles Admin / Supervisor / General Manager can query all tasks, while any other role can only query their own tasks.

The data table Task Table used to create the view.

Identifier	Field Name	Field Type	Description
no	Number	Number	Number calculation expression: T${String.lpad(seq,6,'0')}
name	Name	Single Line Text	Task name
progress	Completion	Decimal
state	Status	List Selection	Options: Not Started, In Progress, Cancelled, Completed
who	Responsible Person	User Selection
startDate	Start Time	Date
planStartDate	Planned Start Time	Date
planFinishDate	Planned Finish Time	Date
finishDate	Actual Finish Time	Date
descs	Task Description	Rich Text	Business field
docs	Task Documents	Attachment	Business field
taskChildren	Sub-tasks	Sub-object	Used to build tree structure

Status Enumeration Values

Option	Identifier
Not Started	unstart
In Progress	progress
Cancelled	cancel
Completed	complete

Add an automation with only a single step, which is a code snippet, to pre-process the query data. The following is the specific code:

const userId = informat.app.userId();
const user = informat.user.getUser(userId);

if (["admin", "ceo", "manager"].some((role) => user.roleList.includes(role))) {
} else {
  automatic.setReturnValue({
    mode: "append",
    filter: {
      conditionList: [{ fieldId: "who", opt: "eq", value: userId }],
    },
  });
}

Query Data Post-Processing

Sometimes we need to process the returned list data—for example, data masking. This feature lets you return the processed data instead of the raw records.

After the data query succeeds, the configured automation or script will be invoked.，A parameter of type TableQueryEvent is passed to the automation. The automation may return an object of type TableQueryAfterResult to modify the query results. If the return value is null or not of type TableQueryAfterResult, the system will display the original query results.

TableQueryAfterResult:

Name	Description
list	New list of records to be displayed in the view.
count	New total record count for pagination purposes.

Example:

automatic.setReturnValue({
  list: [{ id: "1", name: "zhang", mobile: "*******1234" }],
  count: 10,
});

Returned list data

The properties of the items in the returned list data must match the field identifiers in the current view's data table, and the items must include the id property.

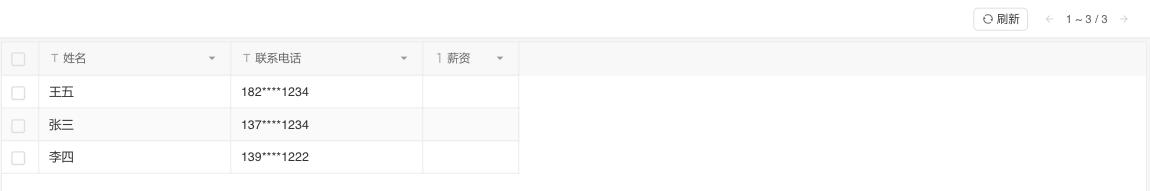

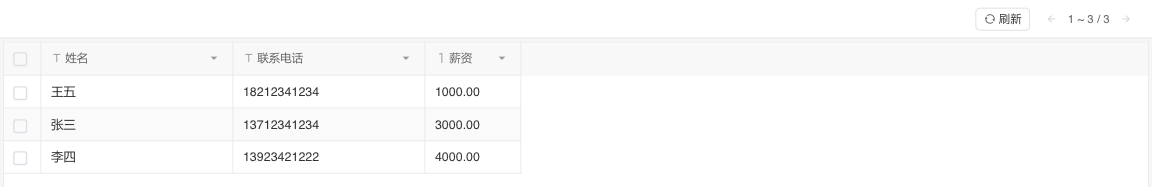

Below, we use salary management as an example: the admin role has no restrictions, while other roles see the salary column as empty and the mobile number is masked.

The data table Salary Table used to create the view.

Identifier	Type	Description	Field ID
name	Single Line Text	Name	tzyjhya8xv32j
mobileNo	Single Line Text	Contact Phone	m0e2wkyo2cklu
salary	Decimal	Salary	qo43drhw00fmr

Add an automation:

Input Parameters:

Parameter Name	Type
event	Object

Add a “Code Snippet” step with the following code:

const event = automatic.getVar("event");
const { count, list } = event;

const userId = informat.app.userId();
const user = informat.user.getUser(userId);

if (user.roleList.includes("admin")) {
} else {
  list.forEach((item) => {
    item.salary = null;
    item.mobileNo = item.mobileNo.replace(/^(.{3}).*(.{4})$/, "$1****$2");
  });
}

automatic.setReturnValue({
  count,
  list,
});

Form Settings

Configure the behavior of the form in the current view. You can override the form settings defined in the data table. Includes how the form opens records, the form data save mode, and the form field settings. If not configured, the default settings from the data table are used.

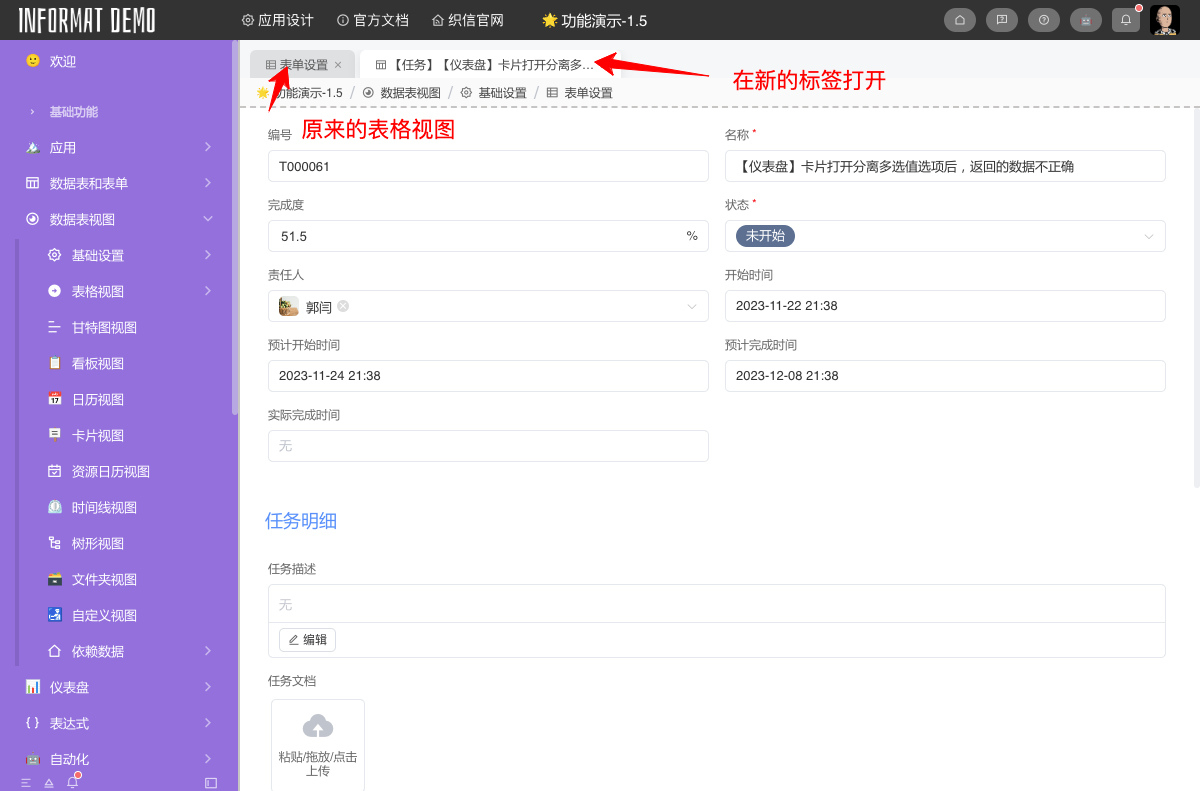

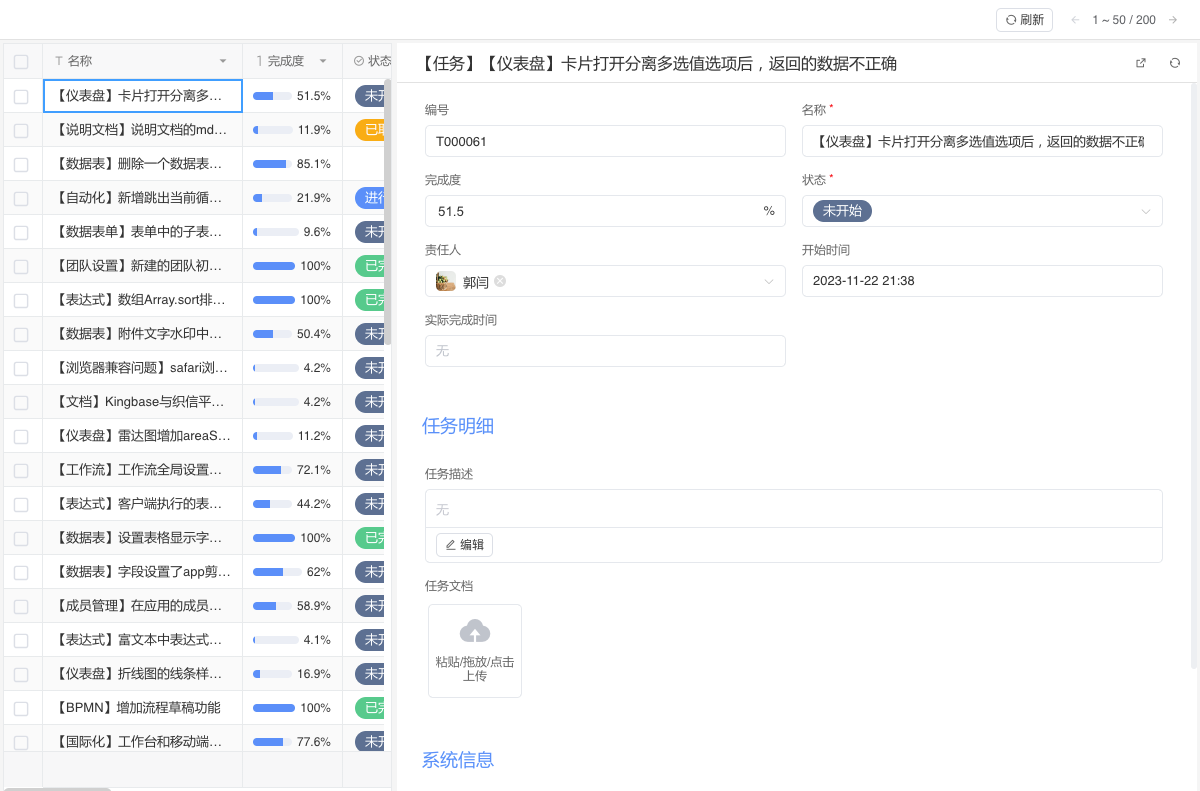

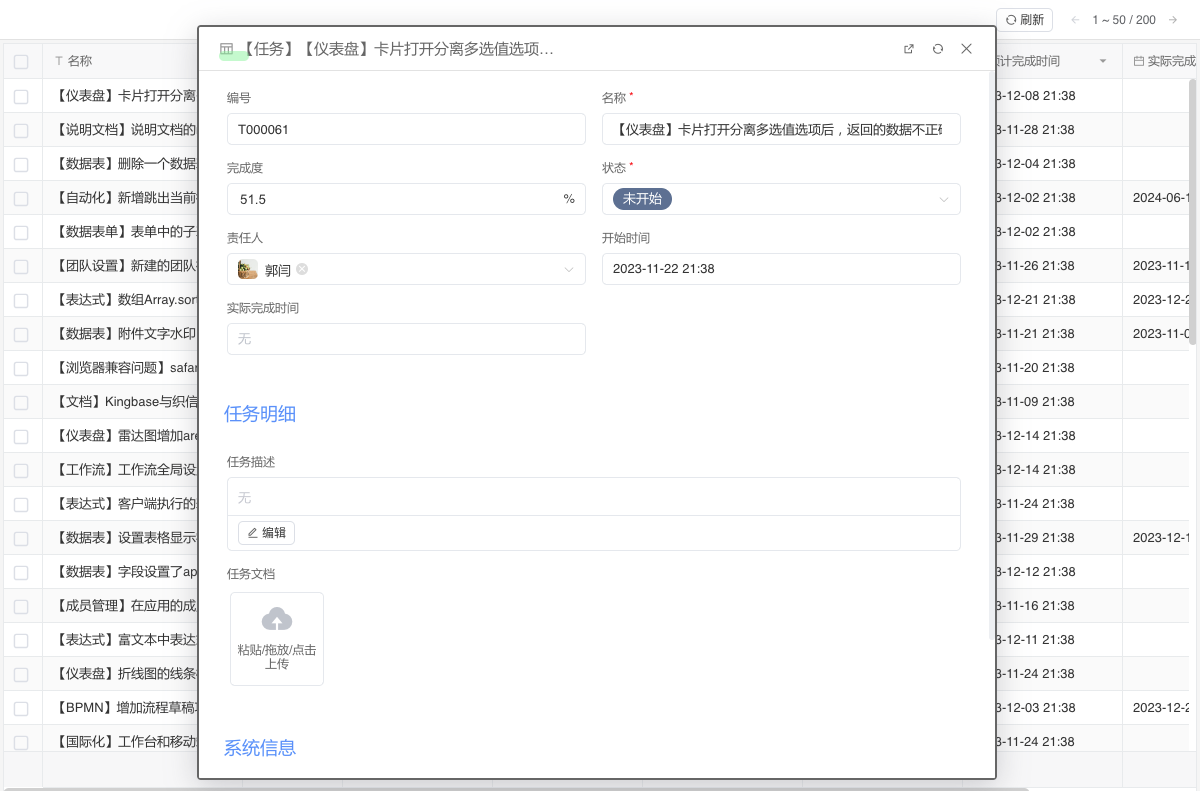

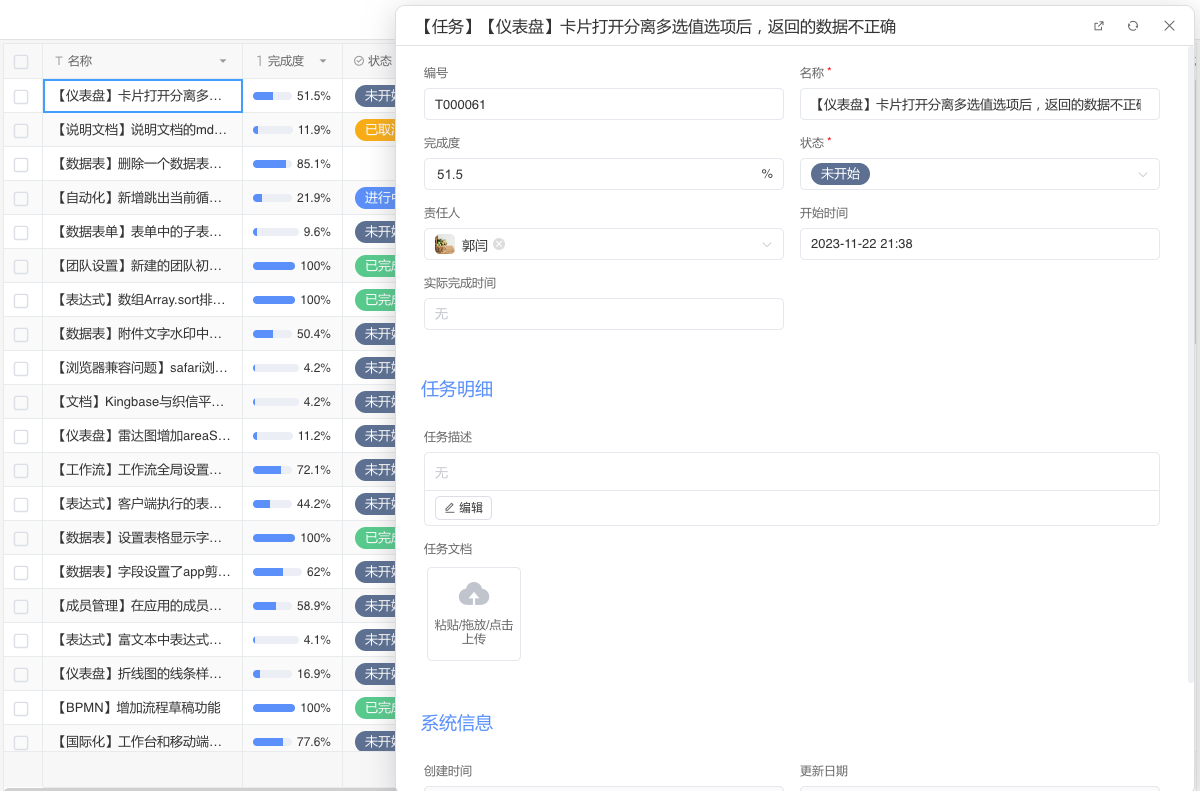

How to Display a Record in the Form

TODO 由于有 BUG 无法截图，后续补充

Event Listening

The events that can be listened to on the view are：

• Double-click record – fired when the user double-clicks a record
• Single-click record – fired when the user single-clicks a record
• After record selection changes – fired when the set of selected records changes
• Double-click empty date in calendar view – fired when the user double-clicks an empty date cell in calendar view
• After view data finishes loading – fired once the view data has loaded

By creating an event listener you can execute an automation after the event fires, enabling complex interactions. When the event triggers, an argument of type ViewEvent is passed to the automation. From the content property of ViewEvent you can obtain the row and column the user clicked in the table view, or the empty date clicked in the calendar view.

Example

Below we’ll demonstrate how the event is triggered and a dialog pops up showing the correspondingViewEvent。
