Relation List

Relation List field represents references to data in another table. Relation list represents one-to-many relationships between models.

Description

Item	Content
Category	Association Relationships
Sortable	No
Filterable	Yes
Supported Filter Types	Contains, Does Not Contain, Empty, Not Empty, In List, Not In List

Settings

Setting	Description
Allow Empty	Set whether the field is required
Placeholder When Empty	Text displayed in the input box when the field has no input
Associated Table	Select the data table module that this field needs to be associated with

Sub-table Settings

Field Settings	Description
Returned Field List	Set the list of fields returned when querying data
Use the Following Fields as Filter Conditions	Can use fields in the associated table as filter conditions for the table, supporting adding fuzzy filters
Combined Filter Conditions	Set combined filter conditions for the sub-table, which will be displayed in tabs after adding
Sorting Method	Can use fields in the associated table as sorting methods for table data
Default Records per Page	Set the number of records loaded per page in the data list
Allow Clicking to Open Form Pages	Set whether to allow viewing the details of records in the relation list
Maximum List Height	Set the maximum height displayed by the relation list field in the form
Data Selection Mode	Set the data selection method for the relation list field in the form Options: `None`, `Checkbox`, `Radio`
Set Records Meeting the Following Conditions as Unselectable	Use expressions to control whether records can be selected

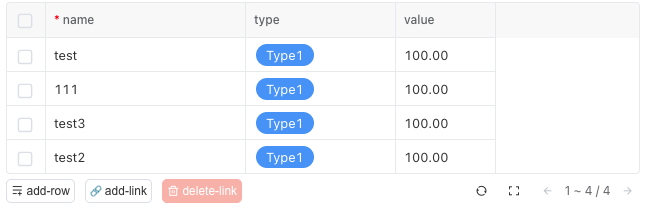

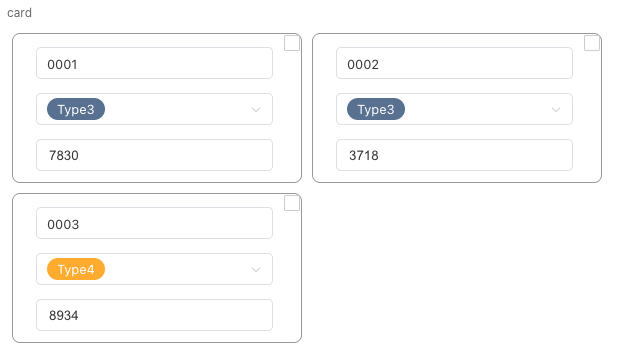

Display Mode	Set the data display method for the relation list field in the form Options: `Table`, `Card`, `Form`
Grouping Field	Set the default grouping field for list data in the relation list field
Display the Following Fields in Table	Set the list of header fields displayed in the relation list
Table Style	Can set the style of the displayed table, supporting multiple selections Options: `Display Serial Number`, `Display Border`, `Display Stripes`
Table Inline Edit Trigger Method	Set the inline edit trigger method
Sub-object Field	Can select a sub-object field in the associated table, after setting the sub-object field, the table will be displayed as a tree table
Table Row Height	Can set the table row height of the field on the form page Options: `Small`, `Medium`, `Large`
Table Maximum Height	Can set the maximum height of the field's table
Cell Formatting	Can set the cell format of the table in the field through rules, supports setting multiple rules
Allow Clicking to Open Form Pages	Set whether to allow viewing the details of records in the table by clicking on them
Display Buttons in Table Toolbar	Can add custom buttons to the toolbar of the table form page, supporting grouping of buttons

Operations After Creating Sub-table Records

Set Field Values of Sub-table Records After Main Table Records Are Successfully Created	Description
Field	Sub-table record field to be set after creation
Default Value	Field value of sub-table record to be set after creation

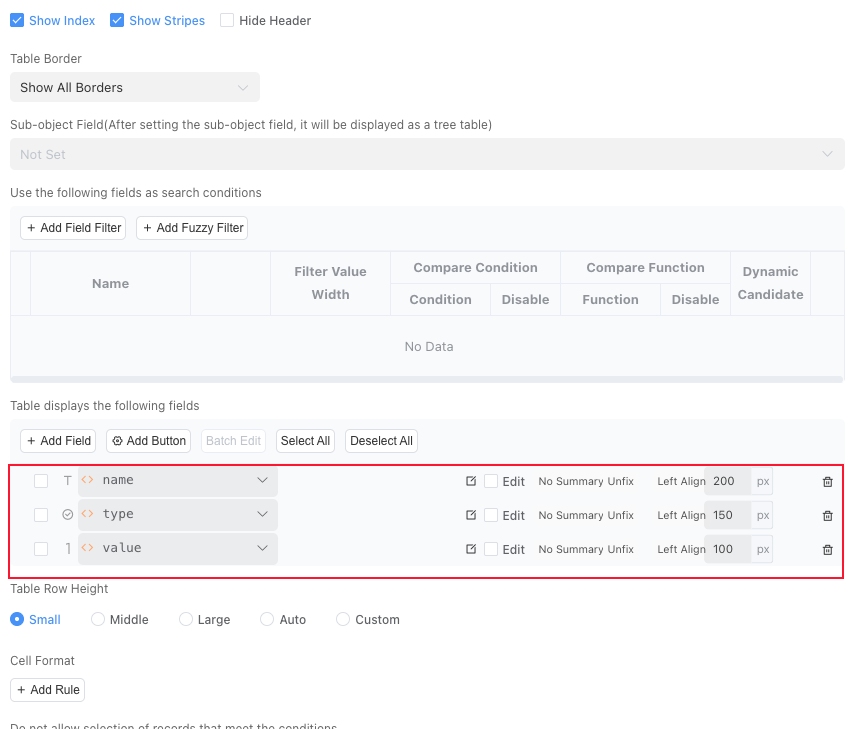

Filter Condition Search Settings

Search Settings	Description
Display Style	Opening method of the search page
Record Display Name Field	Name of the item displayed in the condition box after the record is selected
Width of Search Page	Set the display width of the search page
Table Style	Set the style of the displayed table, supporting Options: `Display Serial Number`, `Display Border`, `Display Stripes`
Table Border	Set the table border type, supporting Options: `Display All Borders`, `Display Only Outer Borders`, `Display Only Horizontal Table Lines`, `Do Not Display Borders`, `Outer Borders and Horizontal Table Lines`
Sub-object Field	Can select a sub-object field in the associated table, after setting the sub-object field, the table will be displayed as a tree table
Do Not Allow Selecting Records That Meet Conditions	Use expressions to control whether records can be selected
Use the Following Fields as Search Conditions	Can use fields in the search list table as filter conditions for the table
Display the Following Fields in Table	Set the list of header fields displayed in the search list
Filter Condition Optional Data Filter	Set the data returned by the search list
Sorting Method	Can use fields in the associated table as sorting methods for table data
Cell Formatting	Can set the cell format of the table in the field through rules, supports setting multiple rules

Database Storage Format

Not stored in the database

Relation list represents one-to-many relationships between models. For each relation record field, the system creates a separate adjacency table for storage. The name of the adjacency table is z_appId_tableId_fieldId, where appId is the application id, tableId is the internal id of the main table, and fieldId is the internal id of the field.

The structure of the adjacency table is as follows:

Field	Type	Description
id	int	Main table record ID
relation_id	varchar	Sub-table record ID
index	int	Sorting
create_time	date	Creation time

After deleting the relation list field, the system will delete the adjacency table.

Actions When Referenced Table Records Are Deleted

When records in the referenced data table are deleted, different behaviors will be triggered according to the deletion settings of the referenced table:

Not Allowed to Delete When Referenced: If the referenced table has this option set, when deleting data from the referenced table, if there are relation lists referencing the records, deletion of records from the referenced table is not allowed
Set Related Records in Reference Data to Empty or Delete Referenced Data in Related Lists After Deletion: If the referenced table has this option set, the data dependent in the relation list will be deleted

Usage in Automation and Scripts

Relation list fields are stored separately using adjacency tables. When querying record information in automation and scripts, the values of relation lists will not be returned. You need to call automation steps or script functions to query them separately. When creating, relation lists can be saved by setting field values. When modifying and deleting, you need to call automation steps or script functions.
