ID Field

ID is a unique serial number generated by the system to identify a record

Description

Item	Content
Category	Static Field
Storage Type	String
Sortable	Yes
Filterable	Yes
Supported Filter Types	Contains, Does Not Contain, Equal, Not Equal, Null, Not Null, Starts With, Ends With, In List, Not In List

Settings

Setting	Description
ID Calculation Expression	Use expressions to design the ID generation logic
Auto-Increment Sequence Reset Method	Set the reset cycle for the ID auto-increment sequence Options: Never Reset, Reset Daily, Reset Monthly, Reset Annually

Database Storage Format

Field Type	Description
varchar(128)	Variable-length string, max 128 characters

ID Generation Rules

Each ID system automatically generates an auto-increment sequence seq, which increases by 1 for each record created. The ID is calculated by an expression, and the return value of the expression is a string. In the expression, you can use the current record record and seq to generate the ID. If no expression is set, the ID is just seq.

Here is an example of generating an ID

ORDER_${String.lpad(seq,5,'0')}

ORDER_00001

Notes

ID must be unique, and the system will check for uniqueness when creating records. ID is only calculated when adding new records and cannot be modified.

If you need to modify the ID field, you need to call the script function

informat.table.update();
//or
informat.table.updateList();

Auto-Increment Sequence Reset

In some business scenarios, it is necessary to reset the seq sequence of the ID field. The ID field provides Automatic Reset and Manual Reset

Automatic Reset

In some systems that generate record IDs based on dates, the ID generation rule is yyyy-mm-dd-seq, where seq needs to be reset daily.

• Daily Reset Reset seq to 1 at 00:00 every day
• Monthly Reset Reset seq to 1 at 00:00 on the first day of each month
• Annual Reset Reset seq to 1 at 00:00 on the first day of each year

The expression to generate yyyy-mm-dd-seq is

${Misc.formatDate(Date.sysdate(),'yyyy-MM-dd')}-${seq}

Other Reset Cases

If the scenario requires resetting according to specific rules, such as quarterly, weekly, hourly reset or resetting seq not starting from 1, you need to use script with scheduled task for manual reset.

Manual Reset

In some scenarios, if you want to reset the seq of the ID field to start from a specified position, you can set the ID field of the data table through script.

For example, reset the order ID field with identifier orderNO in the order table with module identifier order.

// Reset ID seq to start from 1
informat.table.setIdFieldSeq("order", "orderNO", 1);

Usage scenarios

• Reset the ID seq to 1 after clearing data in the data table
• Data in the data table comes from other systems, reset the ID seq to a specified size
• For IDs generated based on dates, resetting is not based on year, month, day or needs to be a specified size when resetting.

Sorting

ID is stored as a string in the database, so the sorting rules follow the string sorting method, for example, the data in the system is as follows

ID	Name
1	Data 1
2	Data 2
3	Data 3
4	Data 4
5	Data 5
6	Data 6
7	Data 7
8	Data 8
9	Data 9
10	Data 10

Because the ID is a string type, when sorting this field, the database will sort according to the string sorting rules. For example, when sorting in ascending order, the final order is

ID	Name
1	Data 1
10	Data 10
2	Data 2
3	Data 3
4	Data 4
5	Data 5
6	Data 6
7	Data 7
8	Data 8
9	Data 9

If you want the ID to be sorted in numerical order, you need to add a function field to convert the string to a number, and then sort the function field

CAST_NUMERIC (idnumber)

Examples

ID is an incremental 6-digit number, e.g., T000001

T${String.lpad(seq,6,'0')}

ID is an incremental 6-digit number with date, e.g., 2024-07-19-000001

${Misc.formatDate(Date.sysdate(),'yyyy-MM-dd')}-${String.lpad(seq,6,'0')}

Use type field as prefix, 6-digit number ID

${record.type}-${String.lpad(seq,6,'0')}

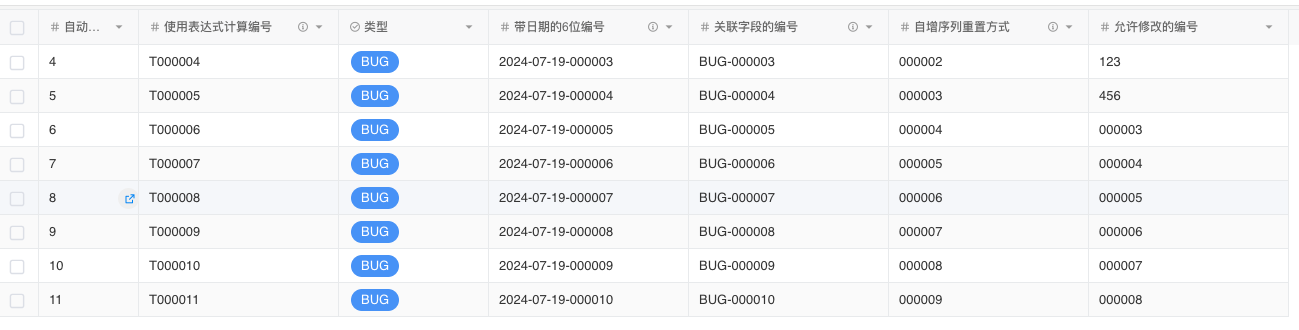

Display Effect
