Data Source - Default Data Source

Overview

Data will be stored in the database. Informat will create a database table to store data. If the data table contains fields of type Related List, the system will additionally create an adjacency list for each field to store the association relationship.

Data Table Storage

When the Data Source type of a data table is Default, the system will create a real physical table for the data table and automatically create the following two fields:

Field	Type	Description
id	varchar(32)	System-generated unique ID, primary key
seq	int(8)	Order of data addition

Notes

• The physical table name is automatically generated based on the rule z_{Application ID}_{Data Table ID}, where appId and tableId are 12-digit unique IDs generated by the system
• The column IDs in the physical table are also automatically generated by the system, and the column data types are dynamically set according to the data table field types

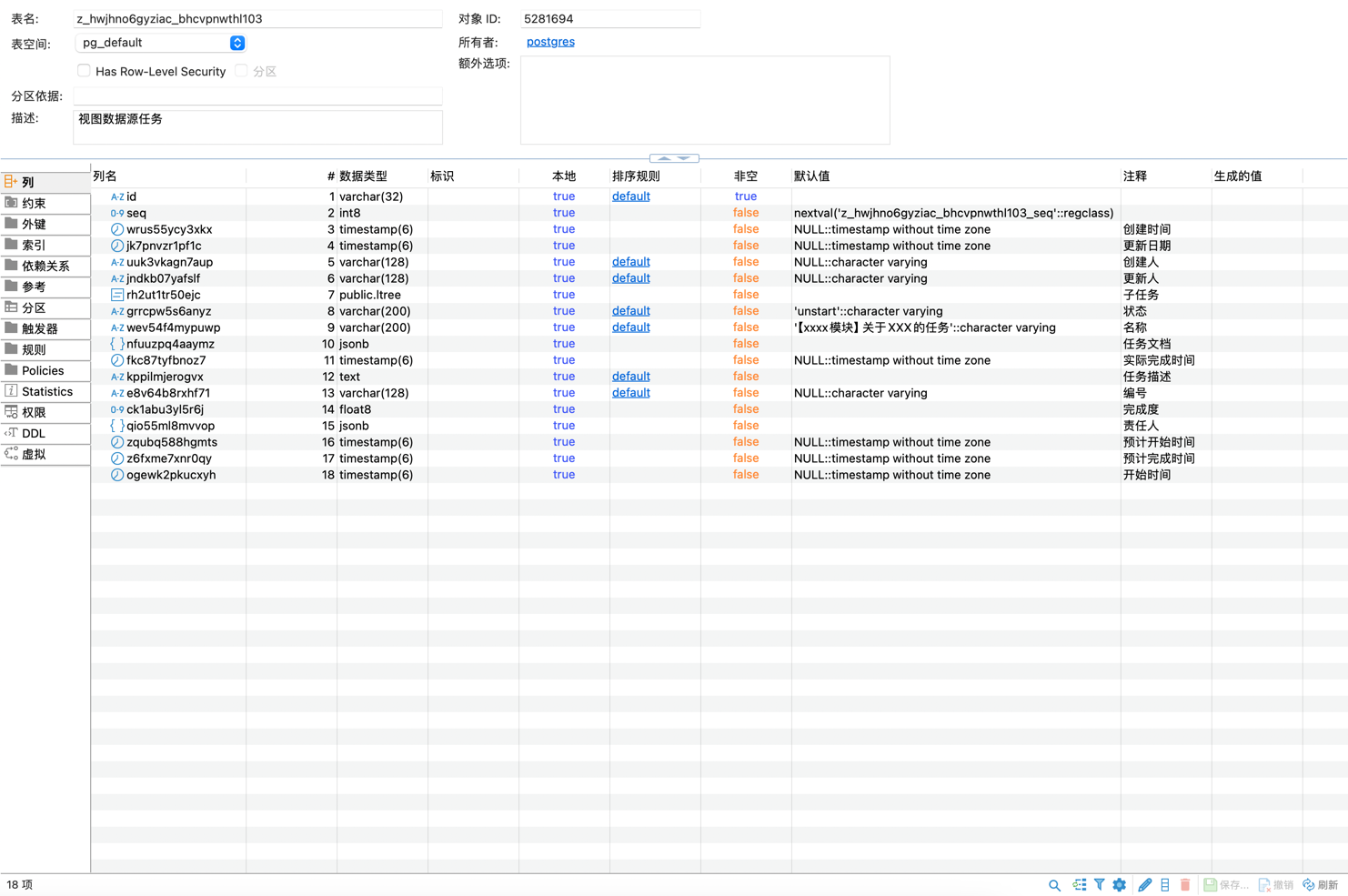

Data Table Structure Example

-- public.z_hwjhno6gyziac_bhcvpnwthl103 definition

CREATE TABLE public.z_hwjhno6gyziac_bhcvpnwthl103 (
	id varchar(32) NOT NULL,
	seq int8 DEFAULT nextval('z_hwjhno6gyziac_bhcvpnwthl103_seq'::regclass) NULL,
	wrus55ycy3xkx timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	jk7pnvzr1pf1c timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	uuk3vkagn7aup varchar(128) DEFAULT NULL::character varying NULL,
	jndkb07yafslf varchar(128) DEFAULT NULL::character varying NULL,
	rh2ut1tr50ejc public.ltree NULL,
	grrcpw5s6anyz varchar(200) DEFAULT 'unstart'::character varying NULL,
	wev54f4mypuwp varchar(200) DEFAULT '【xxxxmodule】XXX task'::character varying NULL,
	nfuuzpq4aaymz jsonb NULL,
	fkc87tyfbnoz7 timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	kppilmjerogvx text NULL,
	e8v64b8rxhf71 varchar(128) DEFAULT NULL::character varying NULL,
	ck1abu3yl5r6j float8 NULL,
	qio55ml8mvvop jsonb NULL,
	zqubq588hgmts timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	z6fxme7xnr0qy timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	ogewk2pkucxyh timestamp(6) DEFAULT NULL::timestamp without time zone NULL,
	CONSTRAINT z_hwjhno6gyziac_bhcvpnwthl103_pkey PRIMARY KEY (id)
);

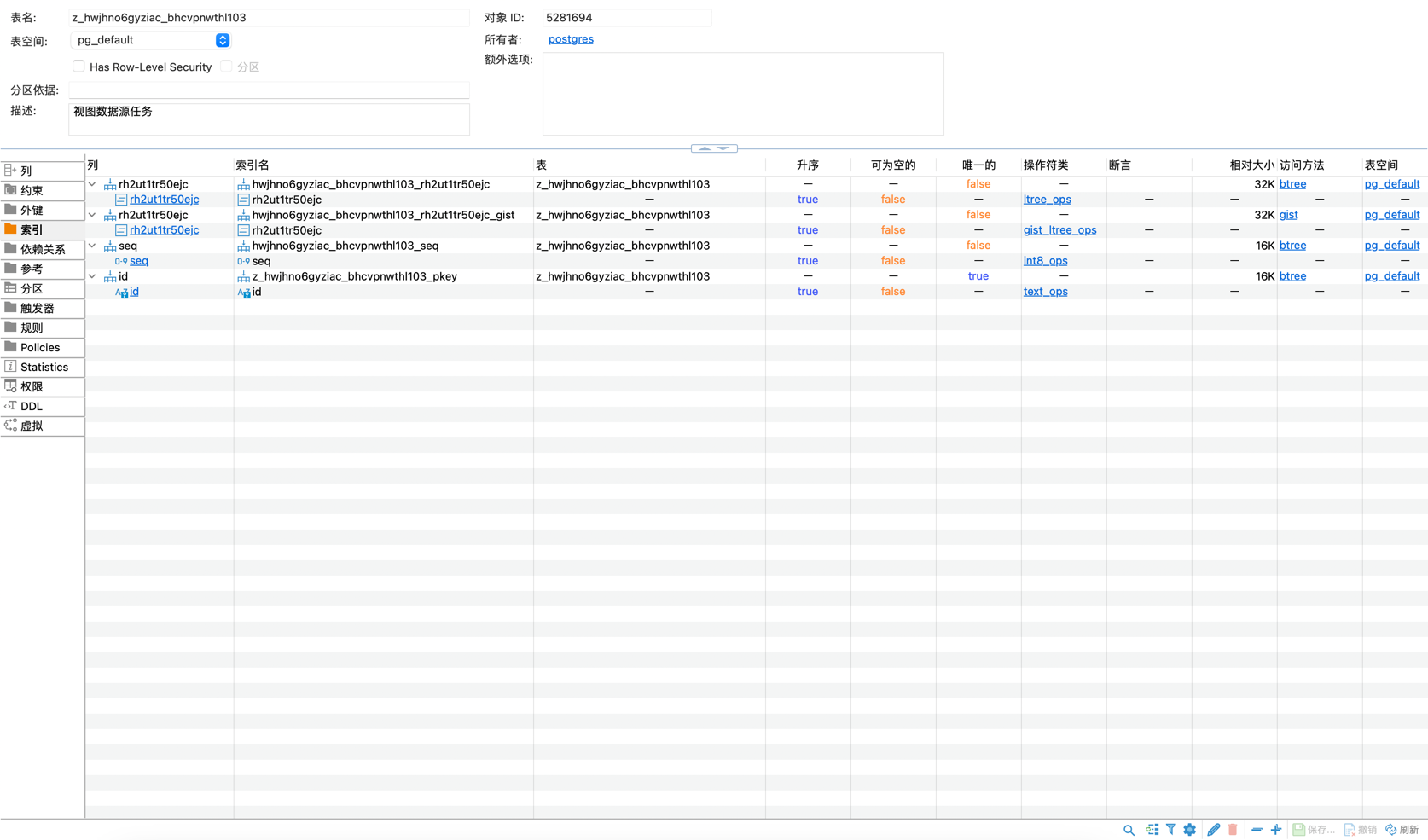

CREATE INDEX hwjhno6gyziac_bhcvpnwthl103_rh2ut1tr50ejc ON public.z_hwjhno6gyziac_bhcvpnwthl103 USING btree (rh2ut1tr50ejc);
CREATE INDEX hwjhno6gyziac_bhcvpnwthl103_rh2ut1tr50ejc_gist ON public.z_hwjhno6gyziac_bhcvpnwthl103 USING gist (rh2ut1tr50ejc);
CREATE INDEX hwjhno6gyziac_bhcvpnwthl103_seq ON public.z_hwjhno6gyziac_bhcvpnwthl103 USING btree (seq);

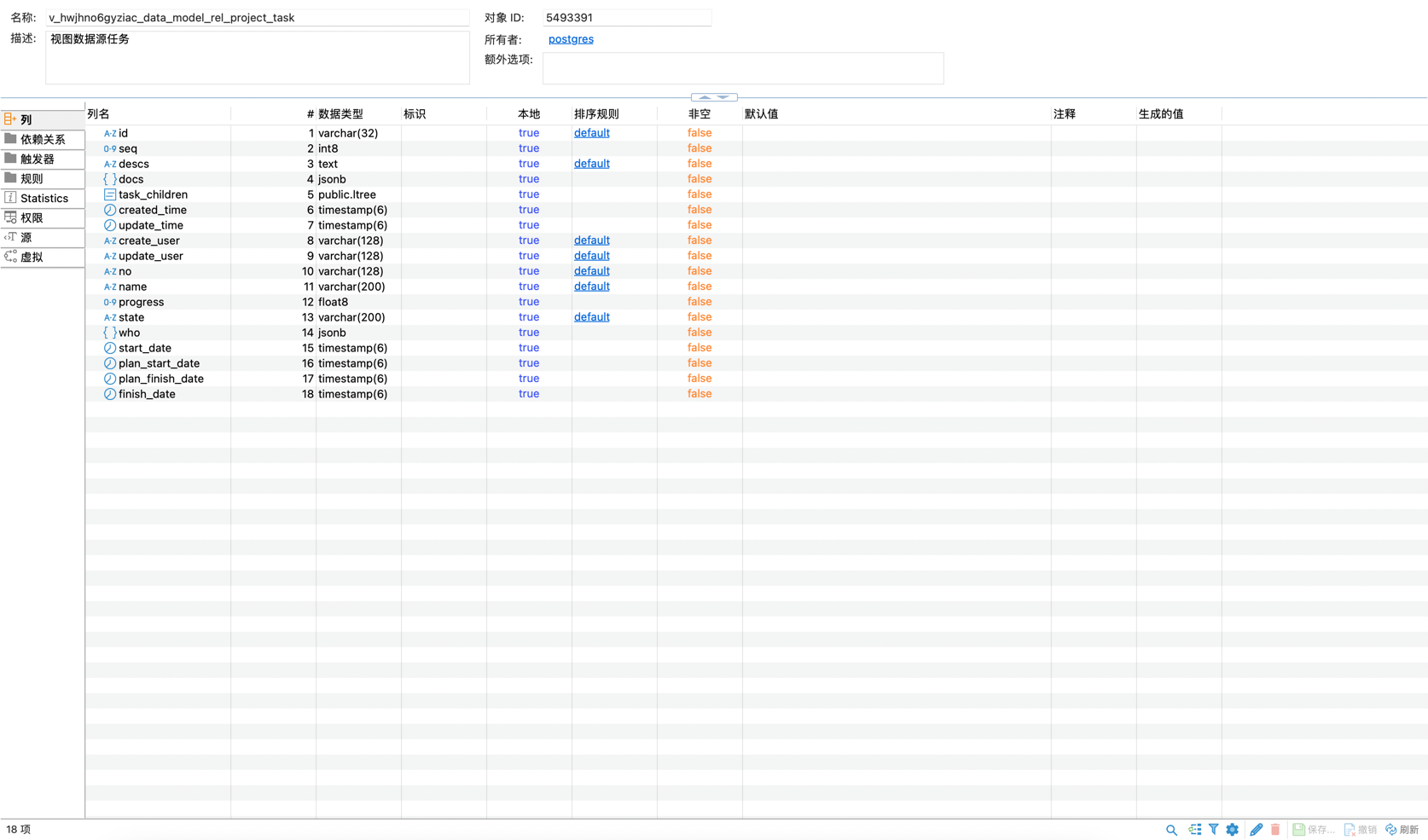

Data Table View

Through understanding the physical table creation process, we can find that the content generated by the physical table is unreadable. To improve readability, after the physical table is created, the platform will create a readable view based on the physical table.

Notes

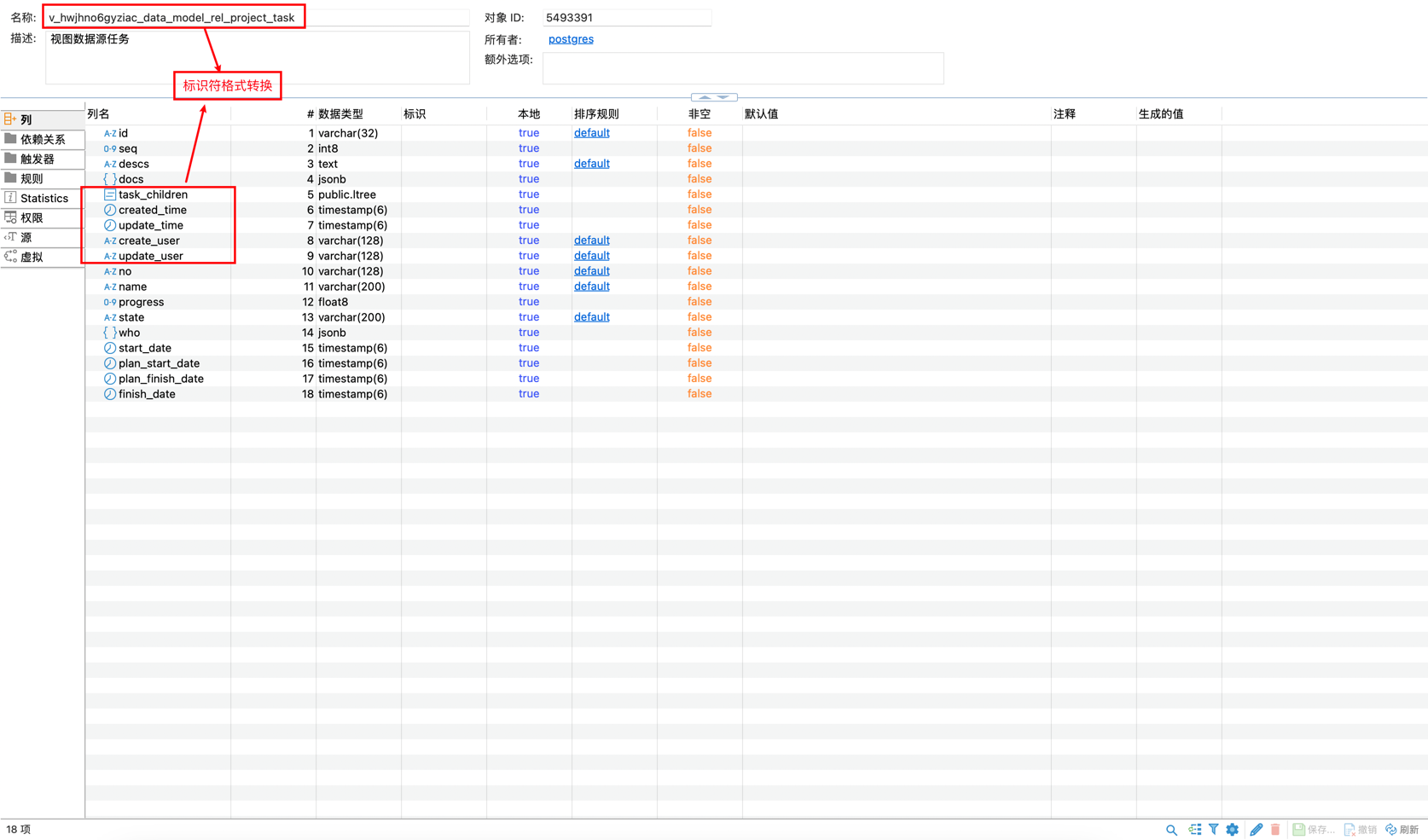

• The view name is automatically generated based on the rule v_{Application ID}_{Module Identifier} The module identifier is converted according to Snake case naming convention. For example, if the module identifier is demoTable, the resulting view name is v_{Application ID}_demo_table
• The column IDs of the view are also converted according to Snake case naming convention

View Structure Example

-- public.v_hwjhno6gyziac_data_model_rel_project_task source

CREATE OR REPLACE VIEW public.v_hwjhno6gyziac_data_model_rel_project_task
AS SELECT z_hwjhno6gyziac_bhcvpnwthl103.id,
    z_hwjhno6gyziac_bhcvpnwthl103.seq,
    z_hwjhno6gyziac_bhcvpnwthl103.kppilmjerogvx AS descs,
    z_hwjhno6gyziac_bhcvpnwthl103.nfuuzpq4aaymz AS docs,
    z_hwjhno6gyziac_bhcvpnwthl103.rh2ut1tr50ejc AS task_children,
    z_hwjhno6gyziac_bhcvpnwthl103.wrus55ycy3xkx AS created_time,
    z_hwjhno6gyziac_bhcvpnwthl103.jk7pnvzr1pf1c AS update_time,
    z_hwjhno6gyziac_bhcvpnwthl103.uuk3vkagn7aup AS create_user,
    z_hwjhno6gyziac_bhcvpnwthl103.jndkb07yafslf AS update_user,
    z_hwjhno6gyziac_bhcvpnwthl103.e8v64b8rxhf71 AS no,
    z_hwjhno6gyziac_bhcvpnwthl103.wev54f4mypuwp AS name,
    z_hwjhno6gyziac_bhcvpnwthl103.ck1abu3yl5r6j AS progress,
    z_hwjhno6gyziac_bhcvpnwthl103.grrcpw5s6anyz AS state,
    z_hwjhno6gyziac_bhcvpnwthl103.qio55ml8mvvop AS who,
    z_hwjhno6gyziac_bhcvpnwthl103.ogewk2pkucxyh AS start_date,
    z_hwjhno6gyziac_bhcvpnwthl103.zqubq588hgmts AS plan_start_date,
    z_hwjhno6gyziac_bhcvpnwthl103.z6fxme7xnr0qy AS plan_finish_date,
    z_hwjhno6gyziac_bhcvpnwthl103.fkc87tyfbnoz7 AS finish_date
   FROM z_hwjhno6gyziac_bhcvpnwthl103;

Field Storage

For each field type, Informat establishes columns in the data table in different formats. The column IDs are 12-digit unique IDs automatically generated by the system.

Type	Database Type	Description
Single Text	varchar(200)	Default maximum of 200 characters, can be adjusted
Multi-line Text	varchar(1000)	Default maximum of 1000 characters, can be adjusted
Rich Text	text
Integer	int8
Decimal	float8	Stores decimal numbers
Date	timestamp(6)	Stores dates
Time	varchar(32)	Stores time
Rating	int4	Rating component
List Selection	varchar(200)	List selection component allows users to select one or more values from a list
Tree Selection	Tree Selection	Tree structure selection allows users to select one or more values from a tree structure
Cascading Selection	jsonb	Cascading selection control allows users to select one or more values from a cascading structure
Attachment	jsonb	Attachments allow uploading files in formats such as images and documents. These files can be previewed online or downloaded
Checkbox/Switch	bool	Checkbox
User Selection	jsonb	Application member field allows adding one or more application members
Department Selection	jsonb	Department field allows selecting one or more departments
Color	varchar(32)	Color picker
Handwritten Signature	jsonb	Allows users to handwrite signatures, preserving handwriting
Geographical Coordinates	jsonb	Geographical coordinates
Function		Uses functions and values from other fields to calculate a result
Custom Component		Uses website module pages to customize display controls
Related List		Associates multiple records from another table
Related Record	varchar(64)	Associates one record from another table, stores the record ID of the dependent table
Related Record Field		Associates specific fields from another table
Lookup List		Looks up records associated with this table based on filter conditions
Sub-object	ltree	Using sub-objects can make the data table have a tree structure
Related List Rollup	float8	Calculates summary data of specific fields in the [Related List]
Lookup Rollup	float8	Looks up records associated with the related list based on filter conditions and summarizes data according to specific fields of the related list
Serial Number	varchar(128)	System-generated serial number
Sub-object Number	text	Complete path of the tree structure
Creation Time	timestamp(6)	Automatically records the creation time of data
Last Modification Time	timestamp(6)	Automatically records the last modification time of data
Creator	varchar(128)	Automatically records the creator of data
Last Modifier	varchar(128)	Automatically records the last modifier of data
Static Text		Uses rich text to edit static display text, the text content can be dynamically set using expressions

Notes

Fields with no marked Database Type indicate that the field does not have a corresponding mapping column in the current data table model

Single Selection and Multiple Selection

When field options allow multiple selections, data is stored as an array type. For example, when the User Selection field is single-select, it stores a TableUser type, and when it's multi-select, it stores an Array<TableUser> array. This should be noted when querying and updating data through automation or scripts.

Sub-object

The database storage format of sub-objects is a string, which stores the parent object ID list separated by . For example, the structure of the department data table is as follows:

Field	Type	Description
id	String	Record ID
name	Single Text	Name
parent	Sub-object	Parent-child relationship between departments

The data in the table is as follows:

id	name	parent
0000	Head Office
0001	Technical Department	0000
0002	Product Department	0000
0003	Operations Department	0000
0004	Technical Team 1	0000.0001
0005	Technical Team 2	0000.0001

Related Record Field

Related Record Field is not stored in the data table and is dynamically obtained from the target table at runtime based on the association relationship. Related Record Field is always read-only and cannot be edited.

Related List

Related List represents a one-to-many relationship between models. For each related record field, the system creates an adjacency list to store it. The name of the adjacency list is z_appId_tableId_fieldId. Where appId is the application id, tableId is the internal id of the main table, and fieldId is the internal id of the field.

The structure of the adjacency list is as follows:

Field	Type	Description
id	int	Main table record ID
relation_id	varchar	Sub-table record ID
index	int	Sorting
create_time	date	Creation Time

After the related list field is deleted, the system will delete the adjacency list.

Lookup List

Lookup List is not stored and is dynamically queried at runtime based on the configured filter conditions.
