Rich Text

Overview

In Informat's rich text (HTML), you can use JUEL-like expressions to render variables, and you can set loops (for) and conditional display (if). Tags in rich text can also be styled individually. With these features, you can configure complex content with various styles. Rich text is used in the following scenarios:

• Static text fields in data tables
• Card view rendering
• Print templates
• Automated steps to open rich text dialogs

Inserting Expressions in Rich Text

Use the ${} syntax to insert expressions in rich text. Here's an example:

Template

Today is ${date}, the weather is ${weather}

Data

{
    date:'2022-12-22',
    weather:'sunny'
}

Rendered Result

Today is 2022-12-22, the weather is sunny

Loops

For each tag, you can use the data binding function to bind loop variables. Loop variables must be of array type. When binding variables, you can also set the variable name for each element in the loop body. Here's an example of a loop:

Template, assuming data is bound to the entire tag, with the bound variable as list and loop variable name as weekday

Today is weekday ${weekday}

Data

{
  list: [1, 2, 3, 4, 5];
}

Rendered Result

Today is weekday 1
Today is weekday 2
Today is weekday 3
Today is weekday 4
Today is weekday 5

Conditional Display

For each tag, you can use the data binding function to bind conditional display variables. The element will only be displayed when the value of the conditional display variable equals true.

Styles

For each tag, you can use the data binding function to bind display styles. The style content follows css specifications. Here's an example of a style:

background: #ff0000;
color: #fff;
font-size: 14px;

Images

On the img tag, you can set the src attribute through the data binding function. By dynamically setting the src attribute using expressions, you can achieve dynamic rendering of images, such as displaying images from attachment fields in data tables.

Barcodes and QR Codes

By calling the Misc.barcodeURL and Misc.qrcodeURL methods, you can get the BASE64 encoded values of barcode and QR code images. Setting this encoding to the src attribute of the img tag enables the display of barcodes and QR codes.

Usage Examples

The following examples show how to use rich text in dashboard cards (Rich Text Card) to achieve dynamic data binding

Inserting Expressions for Dynamic Value Setting

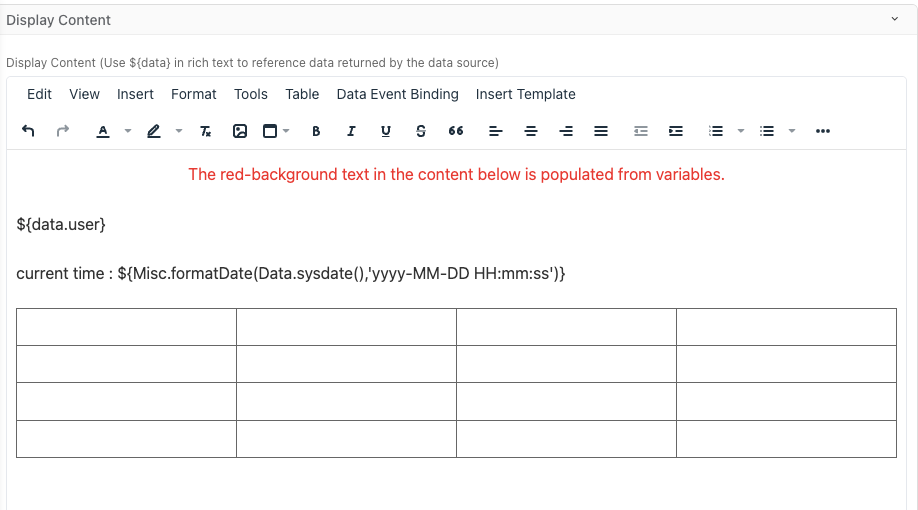

Click the main menu Data Binding

Write the required expression in the pop-up window

For example: ${Misc.formatDate(Data.sysdate(),'yyyy-MM-DD HH:mm:ss')}

---

Data Binding

Card data sources can come from Automation or Expression Calculation. This example demonstrates using Expression Calculation.

Define expression calculation data:

${
  {
    "user": "Li Ming",
    "age": 20,
    "image": "https://next.informat.cn/img/avatar/pic18.png",
    "list": [
      { "id": "1", "school": "xxxx Primary School", "date": "2002-06-28" },
      { "id": "2", "school": "xxxx Middle School", "date": "2008-06-28" },
      { "id": "3", "school": "xxxx University", "date": "2011-06-28" },
      { "id": "4", "school": "xxxx Doctorate", "date": "2015-06-28" }
    ]
  }
}

Adding a Table in Rich Text

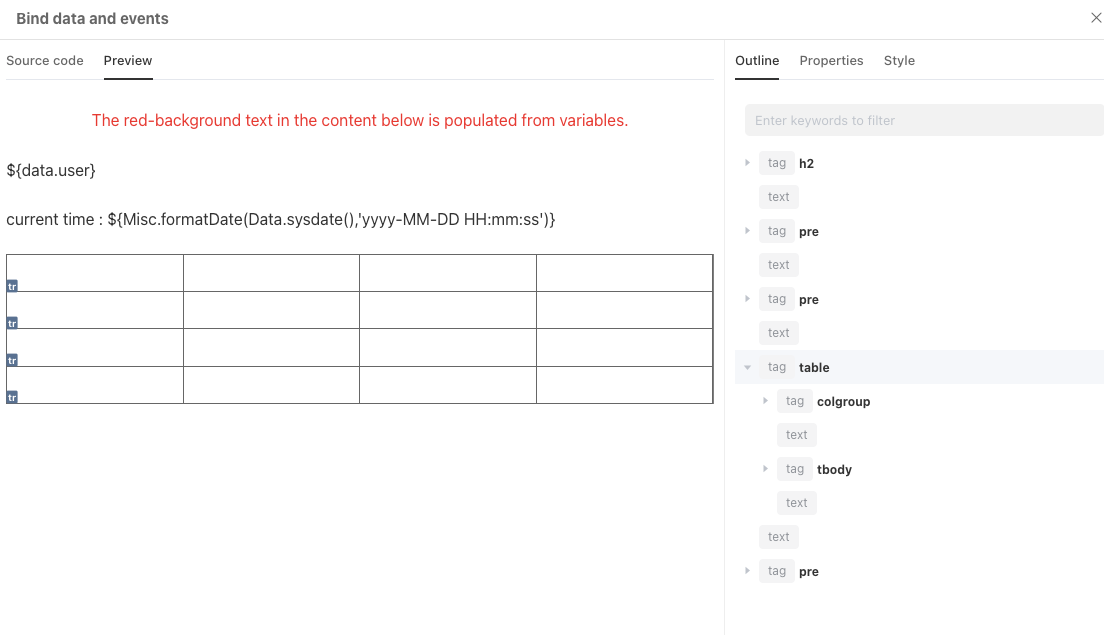

Click Bind Data under Main Menu > Data Binding

Loop List

In the pop-up window, find the table's tr tag in the Outline Directory. After selection, the left side will automatically highlight the current line based on the selection. Click the Properties tab on the right

Complete the value of the table row's Loop Property as shown below

Set table column data as shown below

By using the Loop Property, rich text can dynamically display data-based rows during rendering.

Dynamic Styles

Open Data Binding, find the table's tr tag, and set Style. The style here refers to the content under the HTML style attribute, refer to style

For example, setting stripe styles:

${
  item.id % 2 == 1 ? 'background-color:#efefef;' : 'font-weight:bolder;color:#3064f5;'
}
