Single Sign-On

Overview

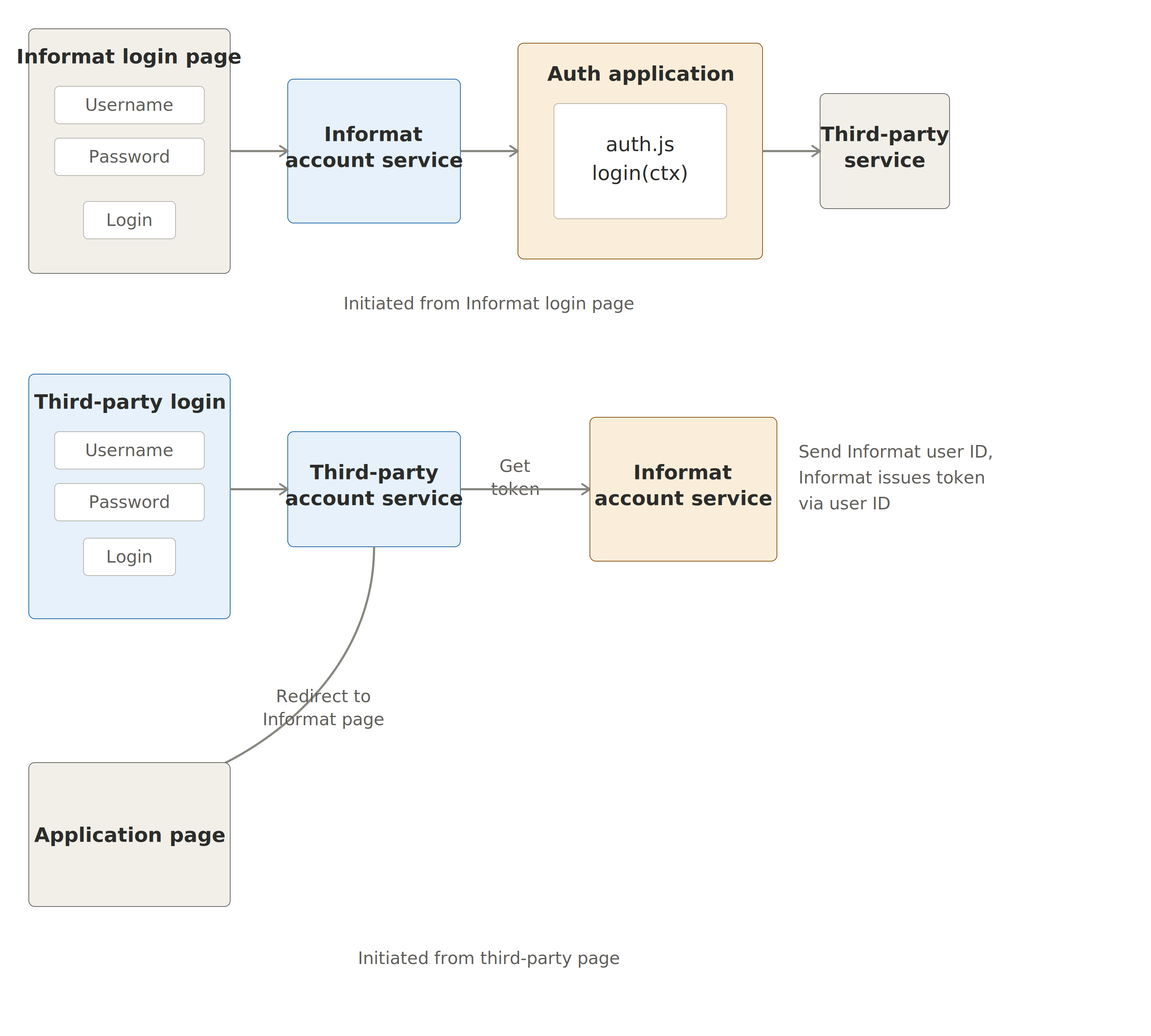

Single Sign-On (SSO) allows Informat to use third-party authentication services to authenticate users. There are two authentication processes:

• Initiated from the Informat login page: After the user enters their account and password, a third-party system is called for authentication.
• Initiated from a third-party system page: Informat API is called for authentication.

Initiated from Informat Login Page

Trigger timing: Triggered after the user enters their account and password. Configuration conditions:

• In a newly created or existing application, find Application Design -> Scripts, and create a systemhook.js file (the script name can be customized). Implement the sso method in the systemhook.js file to handle authentication business logic.

export function login(ctx) {
  console.log("ctx parameters:", ctx.userName, ctx.password, ctx.ip, ctx.type);
  //todo authentication
  return {
    success: true,
  };
}

• Login function input parameter ctx

  id	Description
  userName	User name (may be phone number or email)
  password	Password
  ip	IP address
  type	Login type index,mobile

• Login function return value

  id	Description
  success	Whether authentication was successful
  message	Error message, can be omitted if successful

• Find and set the following parameters in the Informat management backend (/guide/admin) -> System Information -> Parameter Settings:

  • System Hook Application ID
  • Data storage database index of the team to which the system hook application belongs
  • System Hook Script Path
  • SSO login function initiated from the Informat login page
  • SSO login function initiated from a third-party page

TIP

system.systemHookDbIndex Set to 0 if there is only one business database

How to find the application ID from the first step? Find the Application Management button on the workbench

Click the Application Management button, find the application from the first step in the application list, then click Settings

Find the appid in the application information

1. system.systemHookScriptPath Enter the script path created in the first step (systemhook.js)

Example: Single Sign-On with LDAP Authentication

export function login(ctx) {
  console.log("ctx", ctx.userName, ctx.password, ctx.ip, ctx.type);
  // const success=informat.user.passwordAuth(ctx.userName,crx.password);
  const userName = ctx.userName;
  const password = ctx.password;
  let connection = null;
  try {
    connection = informat.ldap.connect({
      providerURL: "LDAP://1.13.173.190:389",
      securityPrincipal: userName,
      securityCredentials: password,
    });
  } catch (e) {
    //Connection to LDAP server or authentication failed
    console.error("ldap login failure:", userName);
    return {
      success: false,
      message: "Login failed", //Login failure message
    };
  } finally {
    if (connection != null) {
      connection.close();
    }
  }
  return {
    success: true,
  };
}

SSO Initiated from Third-Party Page

SSO login process:

• Third-party service makes an HTTP request to the Informat SSO service address: https://next.informat.cn/account/main/sso
• Informat SSO service calls the sso function for authorization

In a newly created or existing application, find Application Design -> Scripts, and create a systemhook.js file (the script name can be customized). Implement the sso method in the systemhook.js file to handle business logic before authorization.

export function sso(ctx) {
  console.log("ctx parameters:", ctx);
  //TODO authenticate to get accountId
  return {
    accountId: "x38s0fa436v69",
    success: true,
    redirectUrl: "/workbench/app",
  };
}

• SSO function input parameter ctx

Property	Type	Description
headers	Object	HTTP request headers
cookies	Object	HTTP cookies
query	Object	Query parameters
body	String	HTTP request body
url	String	HTTP request URL
path	String	Path
method	String	Request method
ip	String	IP address

• SSO function return value

Property	Type	Description
accountId	String	Authorized account ID
success	Boolean	Whether authorization was successful
message	String	Error message
redirectUrl	String	Redirect URL after authorization

Example:

export function sso(ctx) {
  console.log("ctx------>", informat.utils.toJSON(ctx));
  const query = ctx.query;
  const userName = query.userName;
  const password = query.password;
  //Find account by user name
  var accountList = informat.system.queryAccountList({
    filter: {
      conditionList: [{ fieldId: "userName", opt: "eq", value: query.userName }],
    },
  });
  console.log("accountList", accountList);
  if (accountList.size() == 0) {
    return {
      success: false,
      message: "Account does not exist",
    };
  }
  //Here we use Informat account password authentication, in practice you can use your own business logic for authentication
  var result = informat.system.validateAccount(userName, password);
  if (!result) {
    return {
      success: false,
      message: "Incorrect account or password",
    };
  }
  return {
    accountId: accountList[0].id,
    success: true,
    redirectUrl: "/workbench/app",
  };
}

TIP

• Third-party page initiates request: https://next.informat.cn/account/main/sso?userName=test&password=12345678
• After success, redirect to https://next.informat.cn/workbench/app

Logout Interception and Redirect to Third-Party Page

• When logging out from Informat, it will request the Informat logout address: https://next.informat.cn/account/main/logout
• The system.systemHookLogoutFunc script intercepts the logout and returns to the third-party page
• Redirect to the third-party page

In a newly created or existing application, find Application Design -> Scripts, and create a systemhook.js file (the script name can be customized). Implement the logout method in the systemhook.js file to handle business logic after logout.

export function logout(ctx) {
  console.log("ctx parameters:", ctx);
  return {
    success: true,
    redirectUrl: "/auth/login",
  };
}

• Logout function input parameter ctx

Property	Type	Description
accountId	String	Account ID
accountName	String	Account name
tokenType	String	Token type, index: PC web page; mobile: mobile terminal
request	Object	WebRequest object

WebRequest

Web request

interface WebRequest {
  cookies: Object; //http cookies
  query: Object; //query parameters
  body: string; //http request body
  url: string; //http request url
  path: string; //path
  method: string; //request method
  ip: string; //ip address
}

• Logout function return value

Property	Type	Description
success	Boolean	Whether logout was successful
message	String	Error message
redirectUrl	String	Redirect URL after logout

Example:

export function logout(ctx) {
  console.log("ctx------>", informat.utils.toJSON(ctx));
  return {
    success: true,
    redirectUrl: "/auth/login",
  };
}
