Receiving Inspection Sheet ​

For pages like contracts and bills, where the length of the detail list on the page is variable, the flow layout implementation is needed.

Define Data Structure ​

Receiving Inspection Sheet ​

Field NameIdentifierType
Order NumbercodeSingle-line Text
ChannelchannelSingle-line Text
Document DatedateDate

Receiving Inspection Sheet Details ​

Field NameIdentifierType
Serial NumberindexInteger
Item NumbernameSingle-line Text
SpecificationspecificationSingle-line Text
CharacterizationcharacterizationSingle-line Text
UnitunitSingle-line Text
QuantitynumInteger
Secondary UnitdeputyUnitSingle-line Text
Secondary QuantitydeputyNumInteger
Qualified QuantityqualifiedInteger
Purchase Order NumberpurchaseCodeSingle-line Text
RemarksremarkMulti-line Text

Sample Data ​

json
{
  "list": [
    [
      {
        "characterization": "Both ends need steel rings",
        "deputyNum": 1,
        "deputyUnit": "box",
        "index": 1,
        "name": "PC-T012-001",
        "num": 6,
        "purchaseCode": "CG20240101001",
        "qualified": 6,
        "remark": "Special packaging required",
        "specification": "300*500",
        "unit": "piece"
      },
      {
        "characterization": "Both ends need steel rings",
        "deputyNum": 1,
        "deputyUnit": "box",
        "index": 2,
        "name": "PC-T012-001",
        "num": 6,
        "purchaseCode": "CG20240101001",
        "qualified": 6,
        "remark": "Special packaging required",
        "specification": "300*500",
        "unit": "piece"
      },
      {
        "index": 3
      },
      {
        "index": 4
      },
      {
        "index": 5
      },
      {
        "index": 6
      },
      {
        "index": 7
      },
      {
        "index": 8
      },
      {
        "index": 9
      },
      {
        "index": 10
      },
      {
        "index": 11
      },
      {
        "index": 12
      },
      {
        "index": 13
      }
    ]
  ],
  "record": {
    "channel": "xxx Supplier",
    "code": "TEST20240106001",
    "date": 1721115249656
  }
}

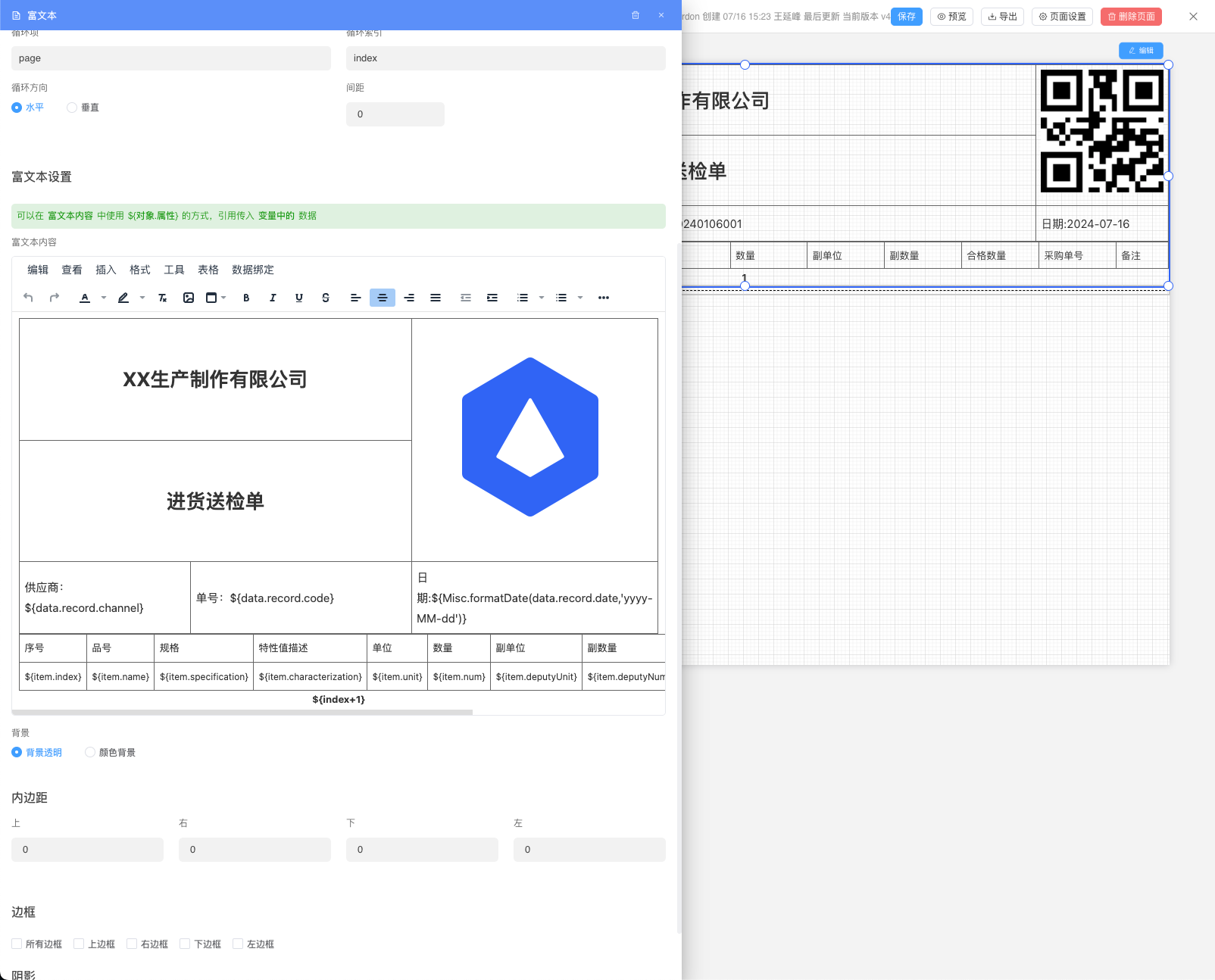

Page Design ​

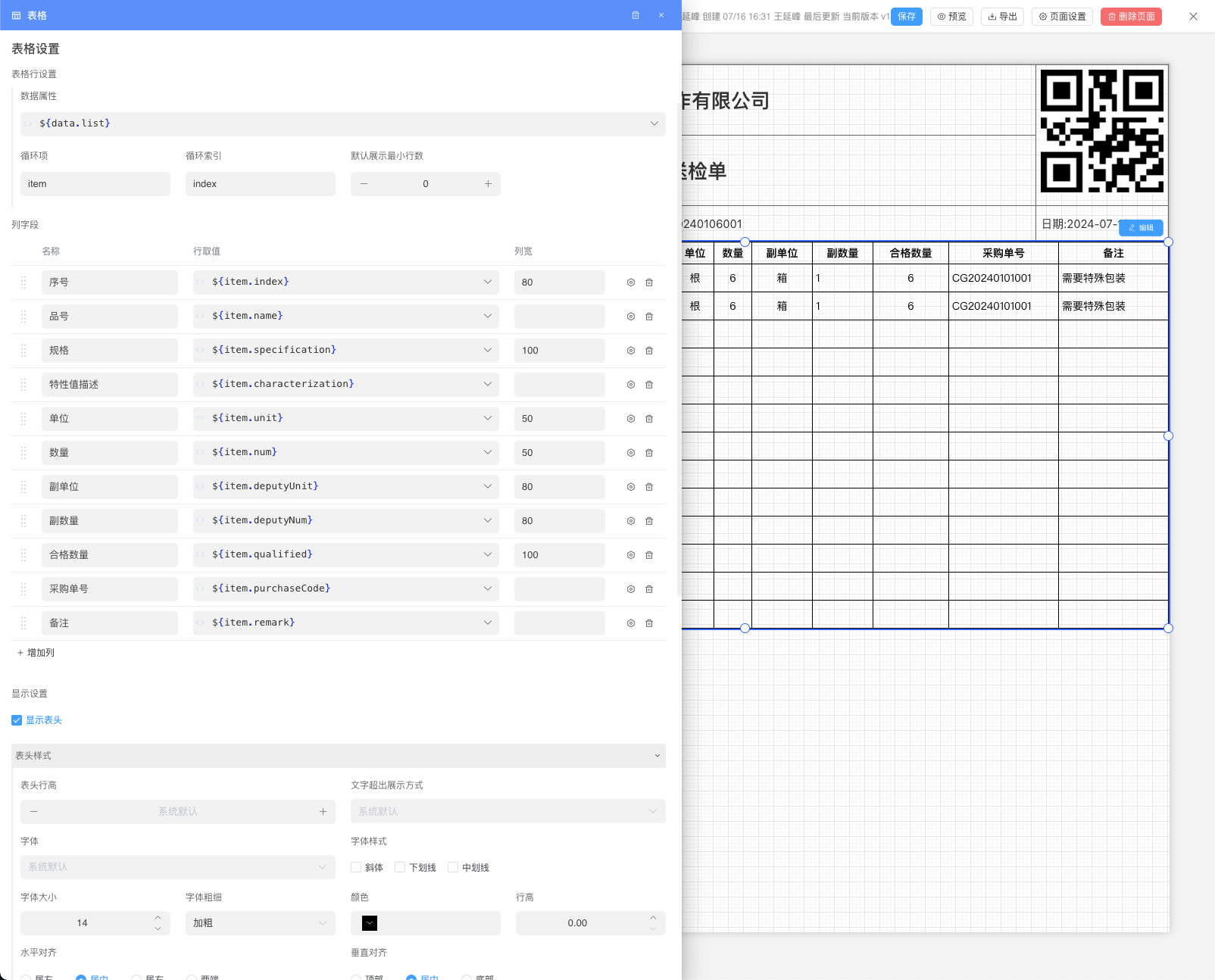

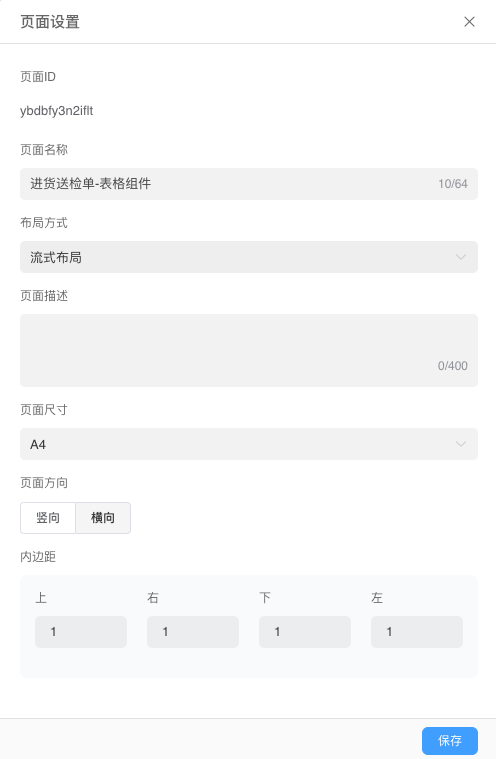

Table Component Implementation ​

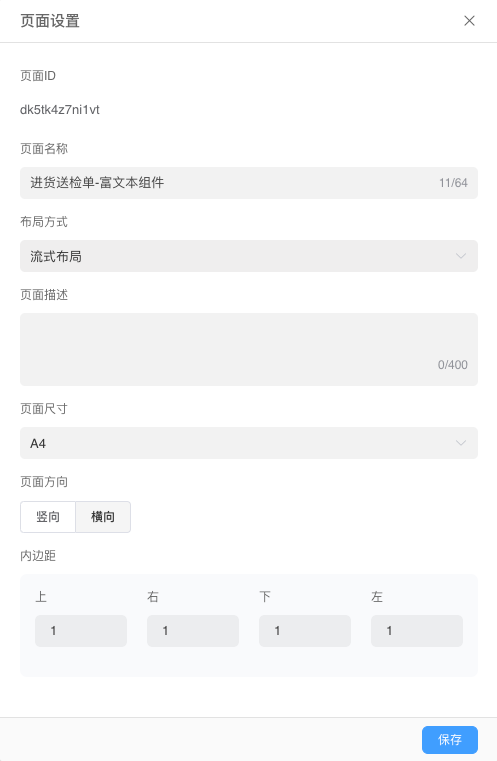

Rich Text Component Implementation ​

Page Design Rich Text Component Code ​

html
<div data-id="">
  <table style="border-collapse: collapse; width: 100%; height: 190.25px; border-width: 1px;" border="1" data-id="">
    <colgroup data-id="">
      <col style="width: 33.2811%;" data-id="" />
      <col style="width: 51.0432%;" data-id="" />
      <col style="width: 15.6374%;" data-id="" />
    </colgroup>
    <thead data-id="">
      <tr style="height: 81.625px;" data-id="">
        <td style="height: 81.625px;" colspan="2" data-id="">
          <h1 style="text-align: center;" data-id="">XX Manufacturing Co., Ltd.</h1>
        </td>
        <td style="height: 163.25px;" rowspan="2" data-id=""><img src="https://ai.ainformat.com//logo.png" alt="" width="300" height="300" data-id="" data-src="${Misc.qrcodeURL(data.record.code,100)}" /></td>
      </tr>
      <tr style="height: 81.625px;" data-id="">
        <td style="height: 81.625px; text-align: center;" colspan="2" data-id="">
          <h1 data-id="">Receiving Inspection Sheet</h1>
        </td>
      </tr>
      <tr style="height: 27px;" data-id="">
        <td style="height: 27px; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">Supplier: ${data.record.channel}</span></td>
        <td style="height: 27px;" data-id=""><span style="font-size: 15px;" data-id="">Order Number: ${data.record.code}</span></td>
        <td style="height: 27px;" data-id=""><span style="font-size: 15px;" data-id="">Date: ${Misc.formatDate(data.record.date,'yyyy-MM-dd')}</span></td>
      </tr>
    </thead>
  </table>
  <div data-id="">
    <table style="border-collapse: collapse; width: 100%; border-width: 1px;" border="1" data-id="" data-style="line-height:1">
      <colgroup data-id="">
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 12%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
        <col style="width: 9.09%;" data-id="" />
      </colgroup>
      <tbody data-id="">
        <tr data-id="">
          <td data-id="">Serial Number</td>
          <td data-id="">Item Number</td>
          <td data-id="">Specification</td>
          <td data-id="">Characterization</td>
          <td data-id="">Unit</td>
          <td data-id="">Quantity</td>
          <td data-id="">Secondary Unit</td>
          <td data-id="">Secondary Quantity</td>
          <td data-id="">Qualified Quantity</td>
          <td data-id="">Purchase Order Number</td>
          <td data-id="">Remarks</td>
        </tr>
        <tr data-id="" data-for="${data.list[index]}" data-foritem="item">
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.index}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.name}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.specification}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.characterization}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.unit}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.num}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.deputyUnit}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.deputyNum}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.qualified}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.purchaseCode}</span></td>
          <td data-id=""><span style="font-size: 12px;" data-id="">${item.remark}</span></td>
        </tr>
      </tbody>
    </table>
    <div style="text-align: center;" data-id="" data-style="high:5px"><strong data-id="">${index+1}</strong></div>
  </div>
</div>
