Auto Complete ​

Overview ​

The auto-complete feature for tasks can significantly improve efficiency, reduce the need for manual intervention, and ensure the continuity and consistency of processes.

Process Diagram ​

The example process diagram is as follows:

Process Diagram

Data Table ​

The data table structure is as follows:

FieldTypeDescription
userUser SelectionLeave Applicant
leaveTypeList SelectionLeave Type, options include: Annual Leave, Sick Leave, Personal Leave, Compensatory Leave
startDateDateLeave Start Time
endDateDateLeave End Time
reasonMulti-line TextReason for Leave
durationsFunctionLeave Days. The specific configuration content is: DATE(endDate) - DATE(startDate) + 1

durations configuration content:

DATE(endDate) - DATE(startDate) + 1

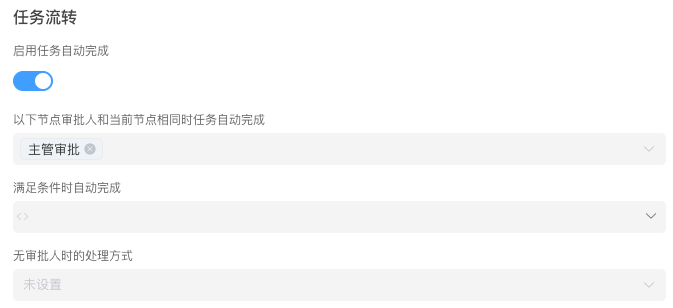

When auto-completing with the same approver, there are two scenarios:

  • Upward Collection: When a node in the configuration item is before the current node and has the same approver, the current node will be automatically completed
  • Downward Collection: When a node in the configuration item is after the current node and has the same approver, the current node will be automatically completed

Auto Complete When Approvers Are the Same (Upward Collection) ​

When a node in the configuration item is before the current node and has the same approver, the current node will be automatically completed. The following is the specific configuration of the workflow:

Global Settings ​

Add a start form for the initiator to fill in leave application information. Global Settings

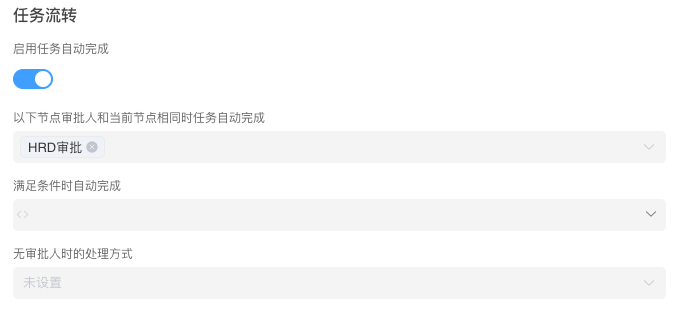

Supervisor Approval Node ​

Configure the handler as the supervisor role

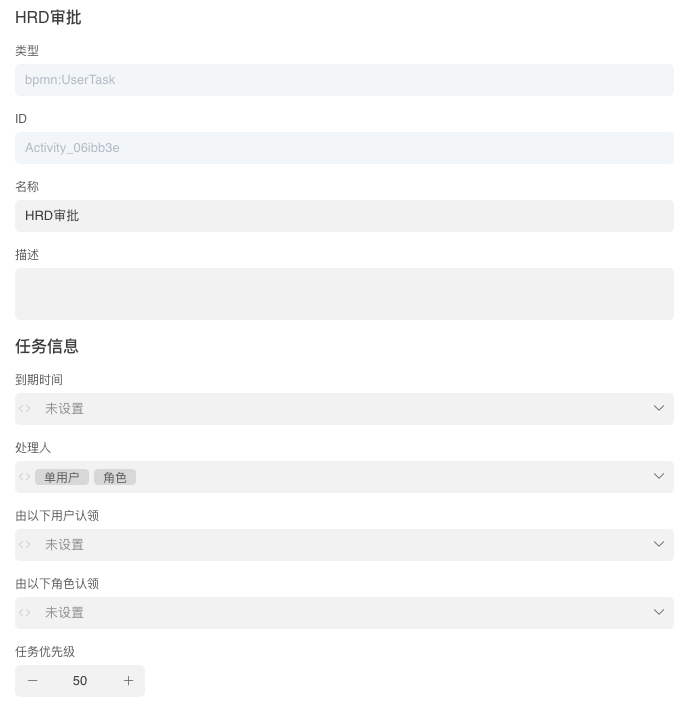

HRD Approval Node ​

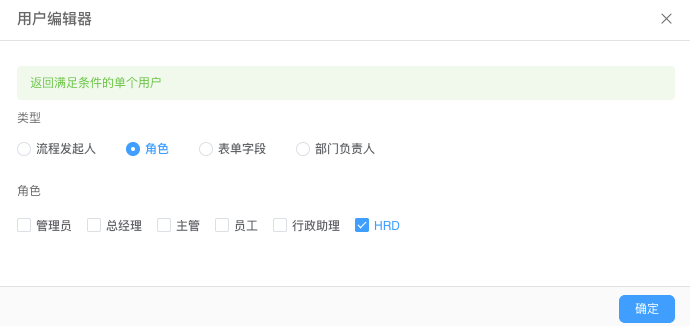

Configure the handler as the HRD role.

Effect Diagrams ​

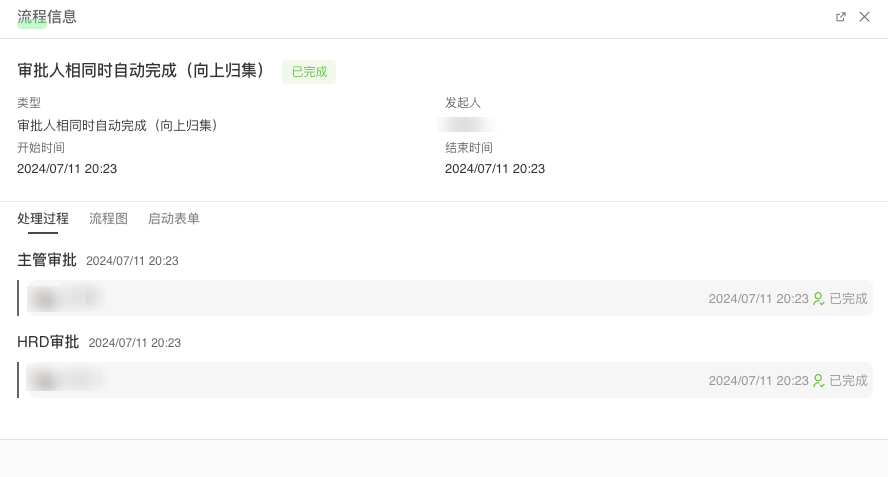

Application Form:FormProcess Information:Process Information

Auto Complete When Approvers Are the Same (Downward Collection) ​

When a node in the configuration item is after the current node and has the same approver, the current node will be automatically completed. The following is the specific configuration of the workflow:

Global Settings ​

Add a start form for the initiator to fill in leave application information. Global Settings

Supervisor Approval Node ​

Configure the handler as the supervisor role

HRD Approval Node ​

Configure the handler as the HRD role.

Effect Diagrams ​

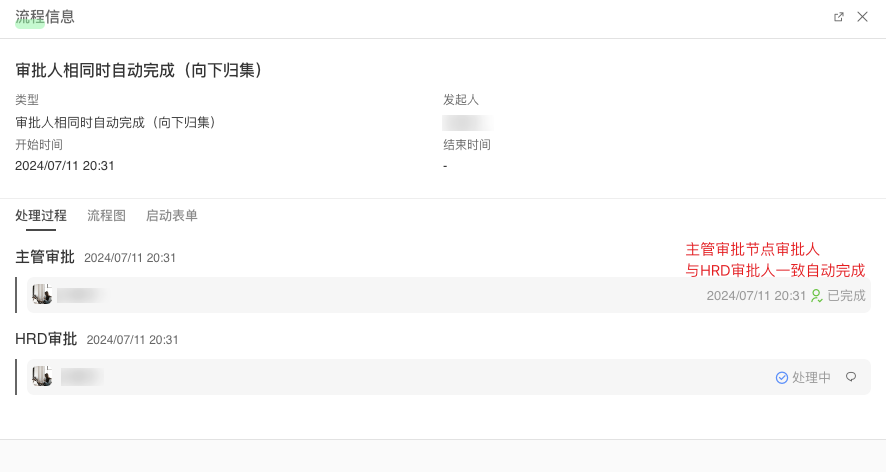

Application Form:FormProcess Information:Process Information

Auto Complete When Conditions Are Met ​

In this process, the initiator needs to fill out the application form and then go through three approval nodes: Approval 1, Approval 2, and Approval 3. If Approval 3 node is rejected, the previously approved Approval 1 and Approval 2 will be automatically completed. The following is the specific configuration of the workflow:

Process Diagram ​


Data Table ​

FieldTypeDescription
nameSingle-line TextName
sp1Checkbox or SwitchWhether Approval 1 is completed
sp2Checkbox or SwitchWhether Approval 2 is completed

Global Settings ​

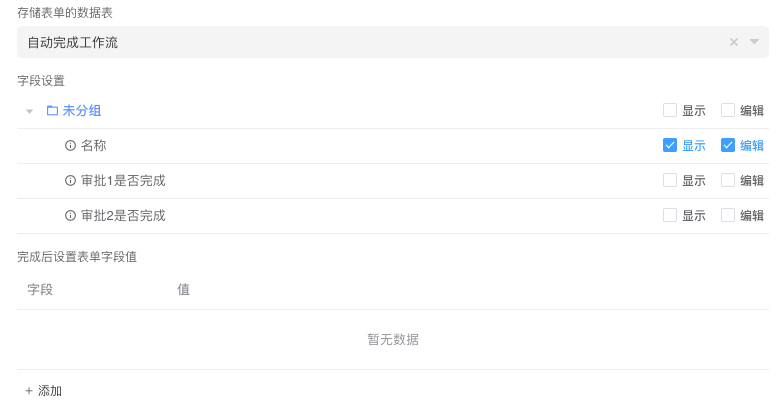

Add a start form for the initiator to fill in application information. Global Settings

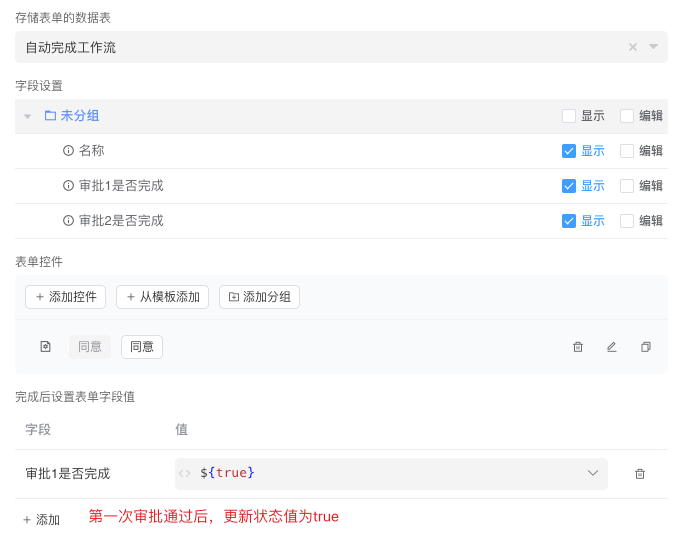

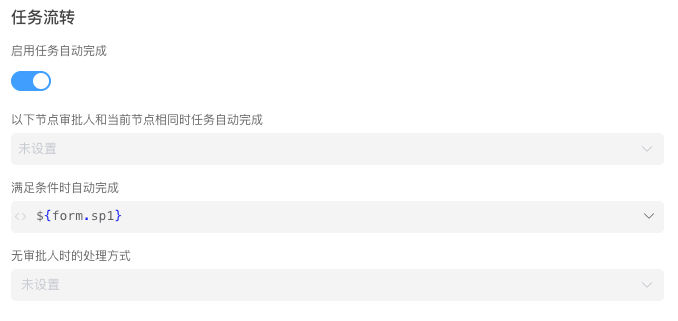

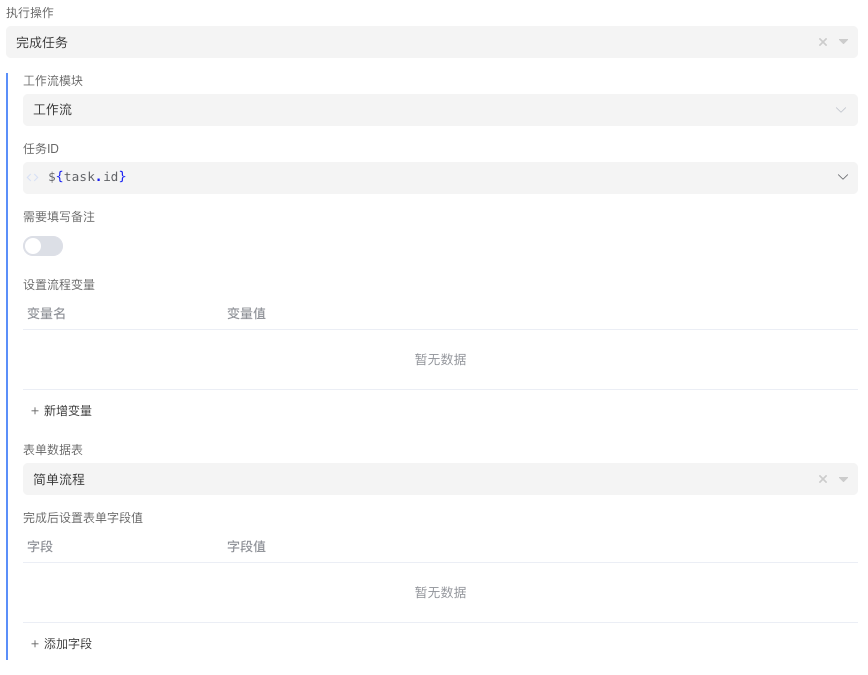

Approval 1 Node ​

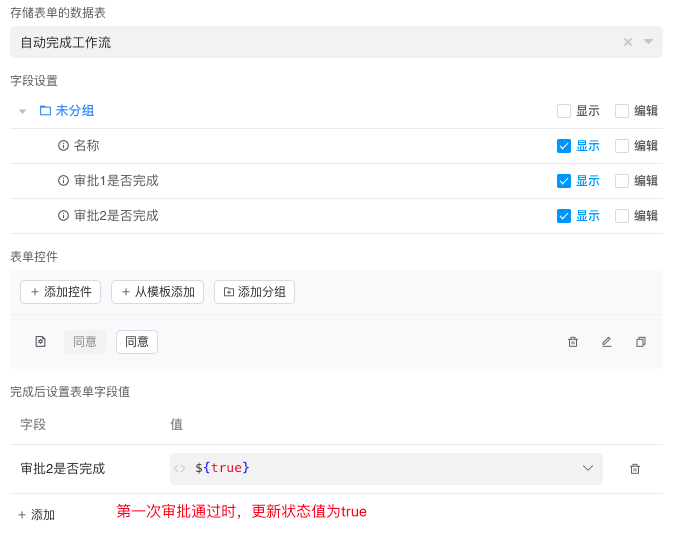

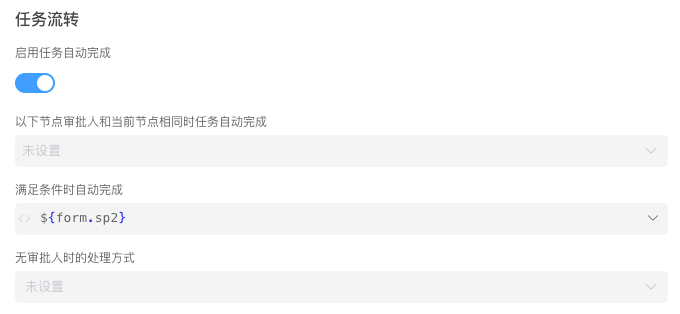

Approval 2 Node ​

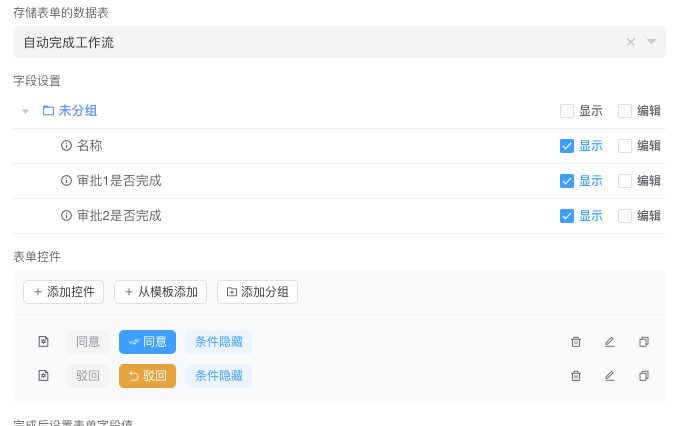

Approval 3 Node ​

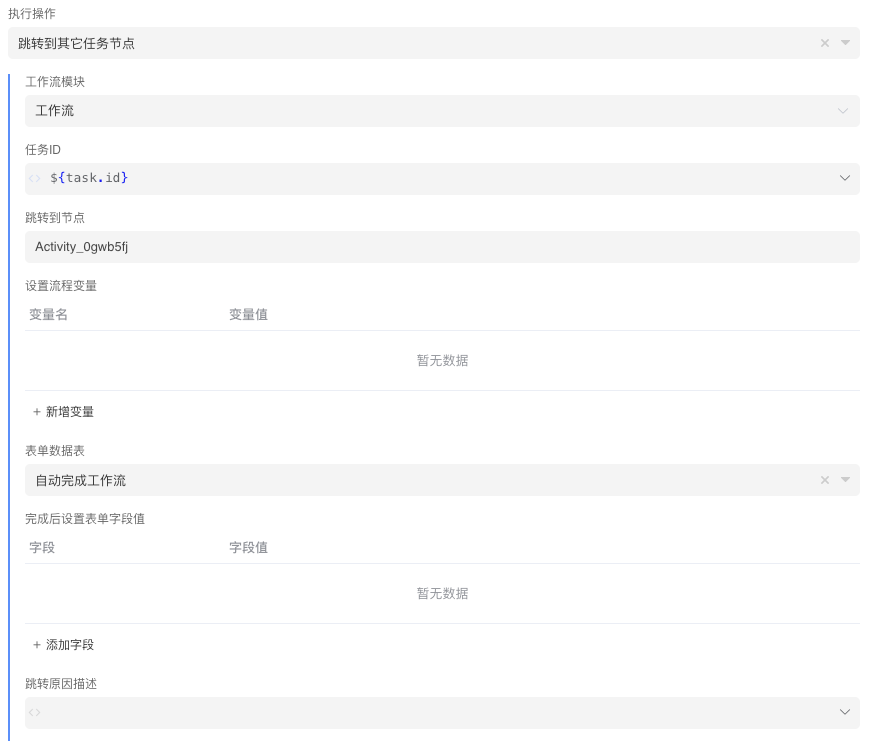

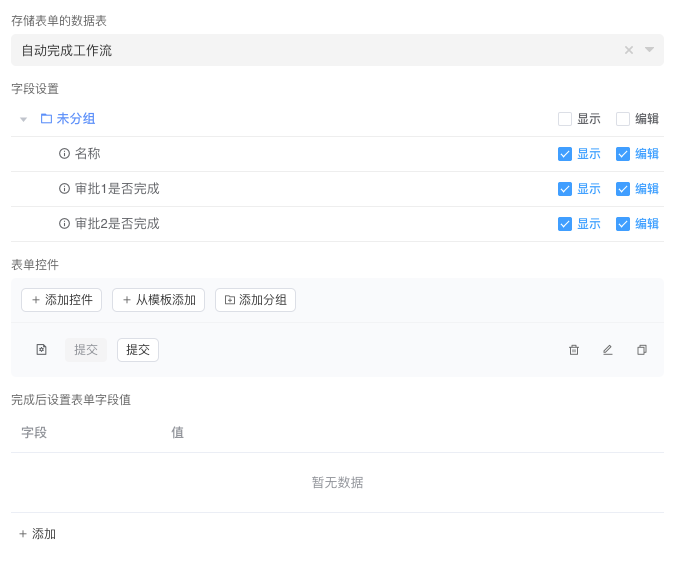

Resubmission Node ​

Effect Diagrams ​

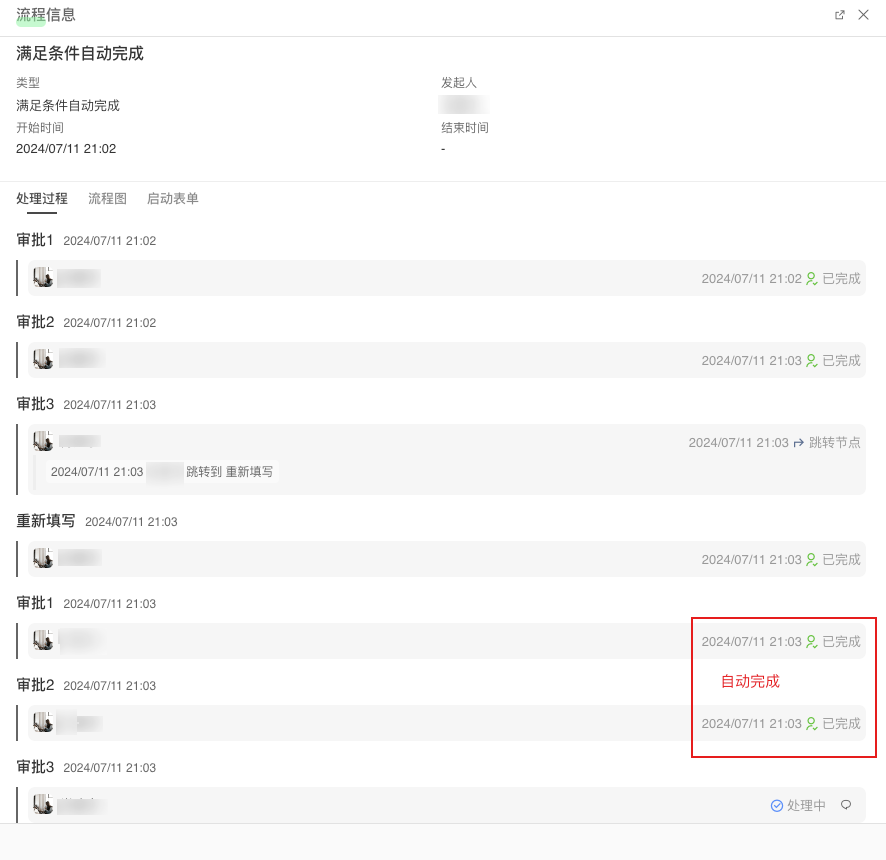

Application Form:FormProcess Information:Process Information
