Print Material Code ​

Suppose you need to create an item label that includes number, customer, specification, inventory, and storage location, all from the data table.

Define Data Structure ​

Field NameIdentifierType
NumbernoSingle-line Text
CustomercustomerRelRelated Record
SpecificationspecSingle-line Text
InventoryquantityNumber
Storage LocationstorageLocationSingle-line Text

Sample Data ​

json
{
  "id": "mih4am4rz1laz",
  "storageLocation": "L2-01-01-01",
  "quantity": 50,
  "customerRel_name": "XXX Automotive Co., Ltd.",
  "customerRel": "34.006",
  "no": "2127380-CD01XXX",
  "spec": "total"
}

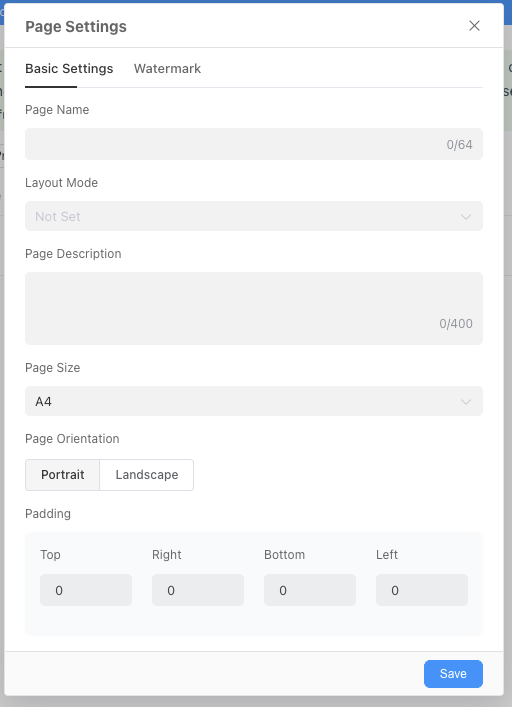

Page Design ​

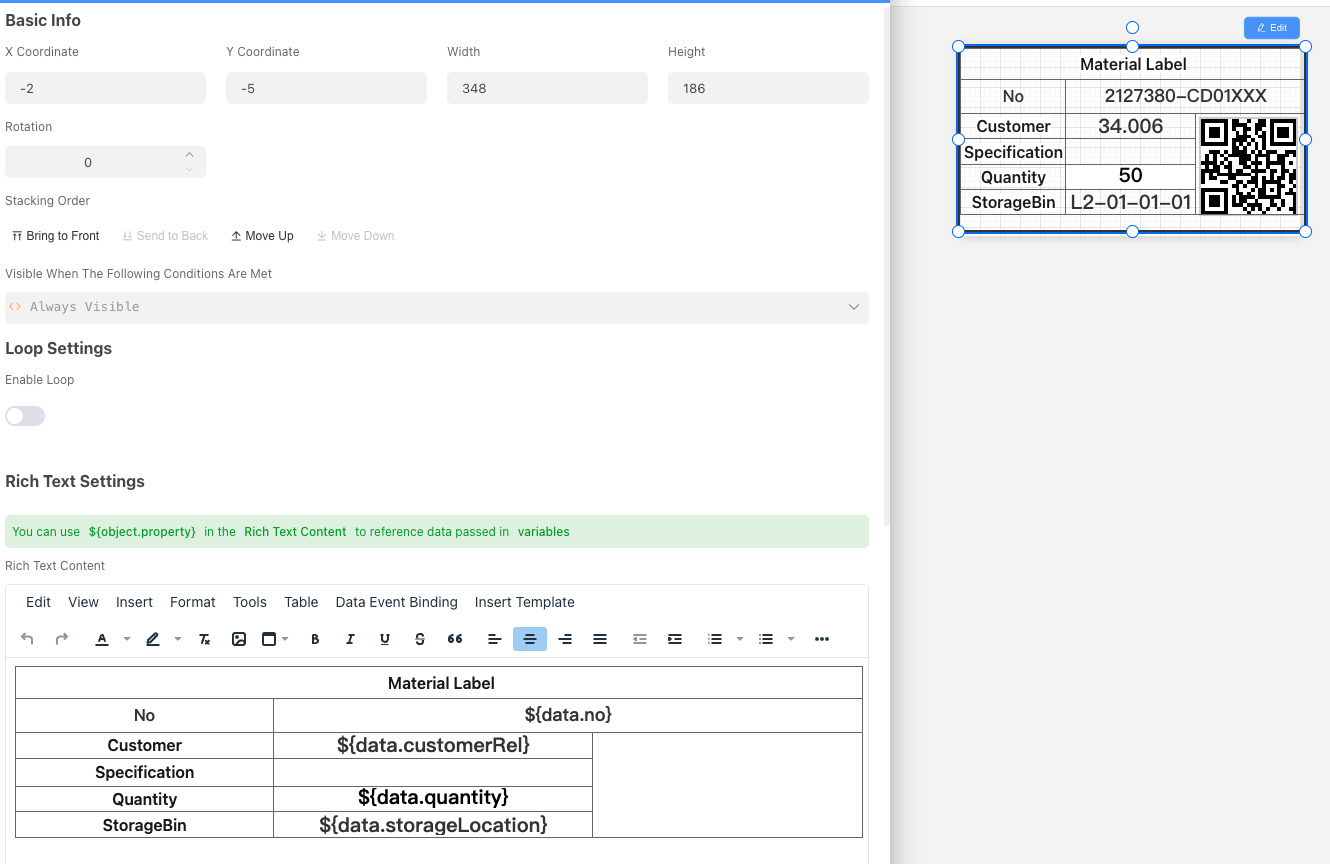

Page Design Rich Text Component Code ​

html
<table style="border-collapse: collapse; width: 100.505%; height: 152.094px; border-width: 1px; border-spacing: 0px; margin-left: auto; margin-right: auto;" border="1" data-id="">
  <colgroup data-id="">
    <col style="width: 19.5732%;" data-id="" />
    <col style="width: 48.46%;" data-id="" />
    <col style="width: 31.9554%;" />
  </colgroup>
  <thead>
    <tr style="height: 31.375px; line-height: 1;" data-id="">
      <td style="text-align: center; height: 31.375px; border-width: 1px; padding: 0px;" colspan="3" scope="colgroup" data-id="">
        <span style="font-family: hei;"
          ><strong><span style="font-size: 15px;">Material label</span></strong></span
        >
      </td>
    </tr>
    <tr style="height: 19px;">
      <td style="text-align: center; border-width: 1px; height: 19px; padding: 0px;">
        <span style="font-size: 16px;"
          ><strong><span style="font-family: hei;" data-id="">No.</span></strong></span
        >
      </td>
      <th style="text-align: left; border-width: 1px; height: 19px; padding: 0px;" colspan="2" scope="colgroup">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id="">
          <span style="font-family: hei;" font-size: 18px;"
            ><strong><span data-id="">${data.no}</span></strong></span
          >
        </div>
      </th>
    </tr>
    <tr style="height: 25.3125px; line-height: 1;" data-id="">
      <td style="text-align: center; height: 25.3125px; border-width: 1px; padding: 0px;" data-id="">
        <span style="font-size: 16px;"
          ><strong><span style="font-family: hei;" data-id="">Customer</span></strong></span
        >
      </td>
      <th style="text-align: left; height: 25.3125px; border-width: 1px; padding: 0px;" scope="col" data-id="">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id="">
          <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id="">
            <span style="font-family: hei;"
              ><strong><span style="font-size: 20px;" data-id="">${data.customerRel}</span></strong></span
            >
          </div>
        </div>
      </th>
      <th style="text-align: left; border-width: 1px; padding: 0px; height: 101.719px;" rowspan="4" scope="colgroup">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
      </th>
    </tr>
    <tr style="height: 26.4844px; line-height: 1;" data-id="">
      <td style="text-align: center; height: 26.4844px; border-width: 1px; padding: 0px;" data-id="">
        <span style="font-size: 16px;"
          ><strong><span style="font-family: hei;" data-id="">Specification</span></strong></span
        >
      </td>
      <th style="text-align: left; height: 26.4844px; border-width: 1px; padding: 0px;" scope="col" data-id="">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id="">
          <span style="font-family: hei;"
            ><strong><span style="font-size: 20px;" data-id="">${data.spec}</span></strong></span
          >
        </div>
      </th>
    </tr>
    <tr style="height: 24.6094px; line-height: 1;" data-id="">
      <td style="text-align: center; height: 24.6094px; border-width: 1px; padding: 0px;" data-id="">
        <span style="font-size: 16px;"
          ><strong><span style="font-family: hei;" data-id="">Quantity</span></strong></span
        >
      </td>
      <th style="text-align: left; height: 24.6094px; border-width: 1px; padding: 0px;" scope="col" data-id="">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id="">
          <div style="color: #000000; background-color: #fffffe; font-family: Consolas, 'Courier New', monospace; font-weight: normal; font-size: 14px; line-height: 19px; white-space: pre;">
            <div style="text-align: center;">
              <span style="font-family: hei;"
                ><strong><span style="color: rgb(0, 0, 0); font-size: 20px; background-color: rgb(255, 255, 255);">${data.quantity}</span></strong></span
              >
            </div>
          </div>
        </div>
      </th>
    </tr>
    <tr style="height: 25.3125px; line-height: 1;" data-id="">
      <td style="text-align: center; height: 25.3125px; border-width: 1px; padding: 0px;" data-id="">
        <span style="font-size: 16px;"
          ><strong><span style="font-family: hei;" data-id="">Storage Location</span></strong></span
        >
      </td>
      <th style="text-align: left; height: 25.3125px; border-width: 1px; padding: 0px;" scope="col" data-id="">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id="">
          <span style="font-family: hei;"
            ><strong><span style="font-size: 20px;" data-id="">${data.storageLocation}</span></strong></span
          >
        </div>
      </th>
    </tr>
  </thead>
</table>
