Admin Management ​

Access Management Interface ​

Access the management interface through http://<private IP or domain>:15672. The username and password can be viewed in system configuration.

Access Address

http://<private IP or domain>:15672

System Configuration Path

{Informat installation directory}/instance/informat-account/application.yml
{Informat installation directory}/instance/informat-biz/application.yml

Main Features ​

The RabbitMQ admin management system provides many functions, including but not limited to:

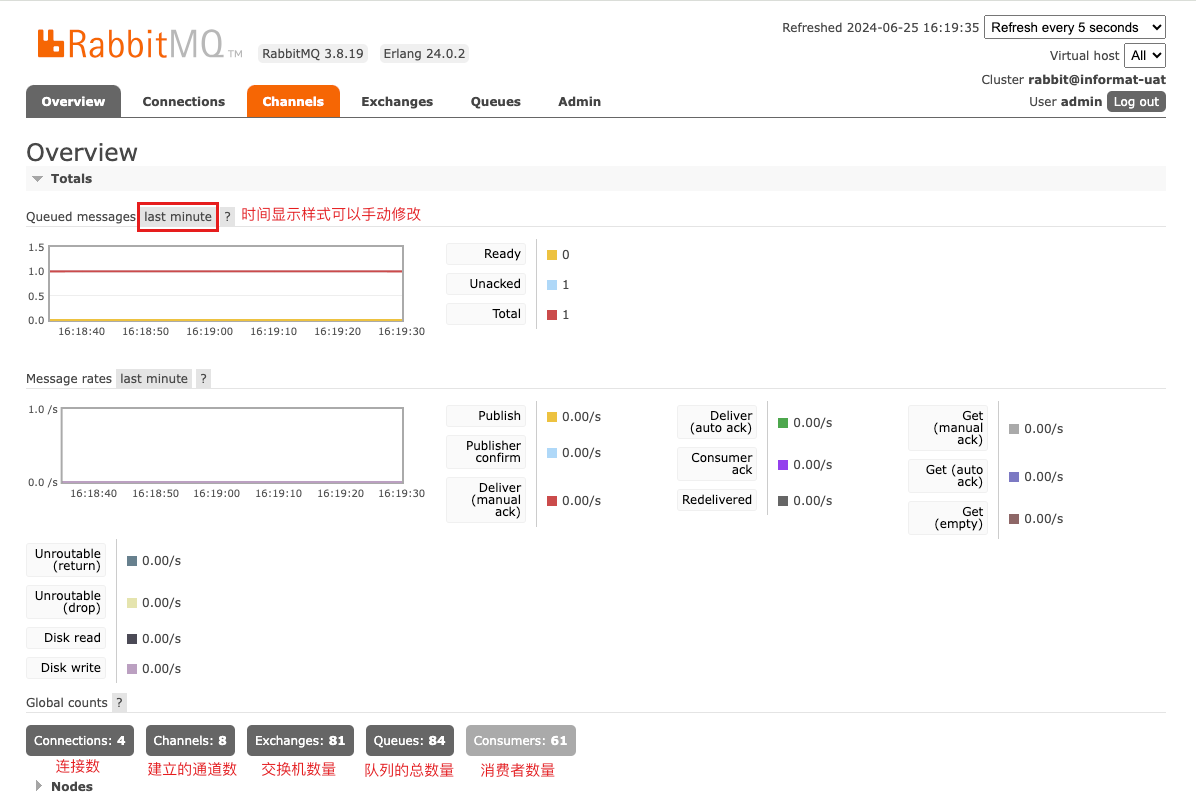

Overview ​

  • Displays the status and statistical information of the current RabbitMQ node.
  • Shows the number of connections, channels, queues, exchanges, etc.


Connections ​

  • Lists all clients currently connected to RabbitMQ.
  • Allows viewing detailed information of each connection, such as IP address, port, status, etc.
  • Allows closing specific connections.

Channels ​

  • Lists all currently open channels.
  • Allows viewing detailed information of each channel, such as parent connection, status, number of unacknowledged messages, etc.

Exchanges ​

  • Manages exchanges, including creating, deleting, and viewing detailed information of exchanges.
  • Can view queues and binding keys bound to exchanges.

Naming Rules

Naming rules: Application ID - Message Queue Module Identifier

Queues ​

  • Manages queues, including creating, deleting, and viewing detailed information of queues.
  • Can view the number of messages in queues, number of consumers, number of unacknowledged messages, etc.
  • Supports manually publishing messages to queues and retrieving messages from queues.

Naming Rules

Naming rules: Application ID - Message Queue Module Identifier - Queue Identifier

Bindings ​

  • Manages bindings, including viewing and deleting bindings.
  • Views binding relationships between exchanges and queues.

Virtual Hosts ​

  • Manages virtual hosts, including creating, deleting, and viewing detailed information of virtual hosts.
  • Virtual hosts are used to logically isolate different applications and users.

Users and Permissions ​

  • Manages users, including creating, deleting, and viewing detailed information of users.
  • Manages user permissions, including assigning users to virtual hosts and setting user operation permissions.

Monitoring and Statistics ​

  • Provides rich monitoring and statistical information, including message transmission rate, message storage status, consumer processing rate, etc.
  • Supports real-time monitoring and historical data viewing.

Plugin Management ​

  • Can view and manage installed plugins.
  • Supports enabling and disabling plugins.

Policies ​

  • Manages policies, including creating, deleting, and viewing policies.
  • Policies are used to configure queue and exchange behaviors, such as message TTL (Time to Live), mirror queues, etc.

Parameters ​

  • Manages parameters, including creating, deleting, and viewing parameters.
  • Parameters are used to configure some advanced features of RabbitMQ.

Logs and Events ​

  • Views RabbitMQ logs and event information for troubleshooting and monitoring system operation status.

Enable Management Plugin ​

To enable the RabbitMQ management plugin, use the following command:

sh
rabbitmq-plugins enable rabbitmq_management

Security ​

  • By default, the management interface only allows local access. Remote access can be modified through the configuration file.
  • It is strongly recommended to change the default username and password, and configure role-based access control (RBAC).
