Add Sign ​

Overview ​

Add Sign refers to adding one or more approvers during the current approval process when certain conditions are met.

Process Admin Add Sign ​

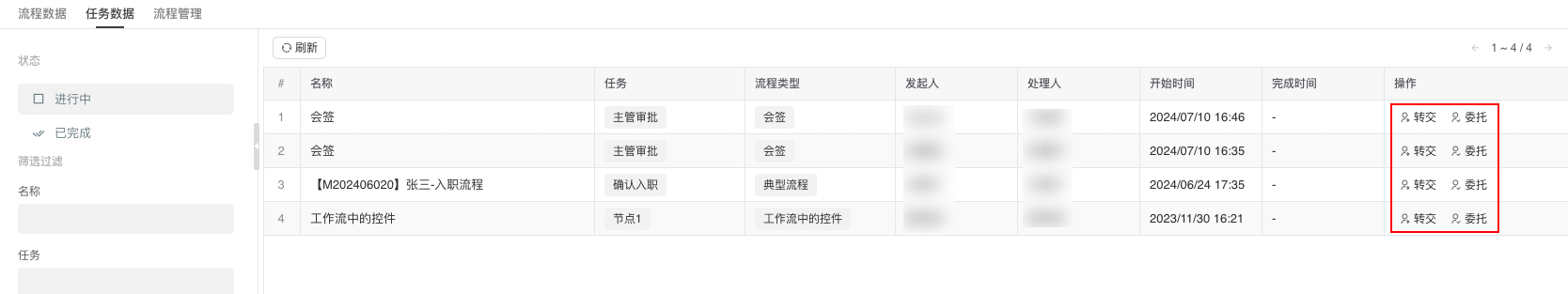

Add sign scenarios can be implemented by process administrators through the delegation function under "Workflow Data Management Module => Task Data". example5-1.png

Current Approver Add Sign ​

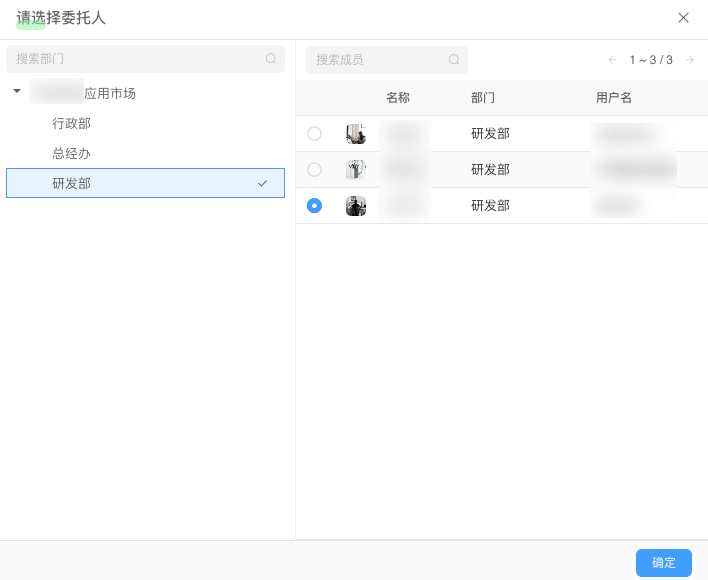

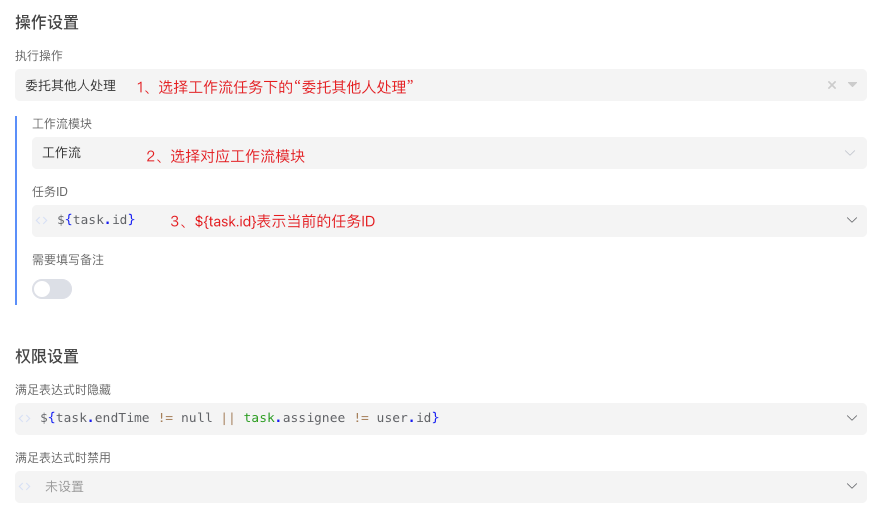

The current approver can delegate the task to others through button interaction.

Flowchart ​

Flowchart is as follows:

Flowchart

Data Table ​

Data table structure is as follows:

FieldTypeDescription
userUser SelectApplicant
leaveTypeList SelectLeave type, options include: annual leave, sick leave, personal leave, time off
startDateDateStart time
endDateDateEnd time
reasonMulti-line TextLeave reason
daysNumberLeave days, calculated by formula: moment(endDate).diff(moment(startDate), 'days') + 1

durations:

DATE(endDate) - DATE(startDate) + 1

Workflow Configuration ​

In the Leave Application process, the initiator needs to fill out the leave application form, and the task can be completed after any supervisor approves it.

Below are the specific configurations of the workflow:

Global Settings ​

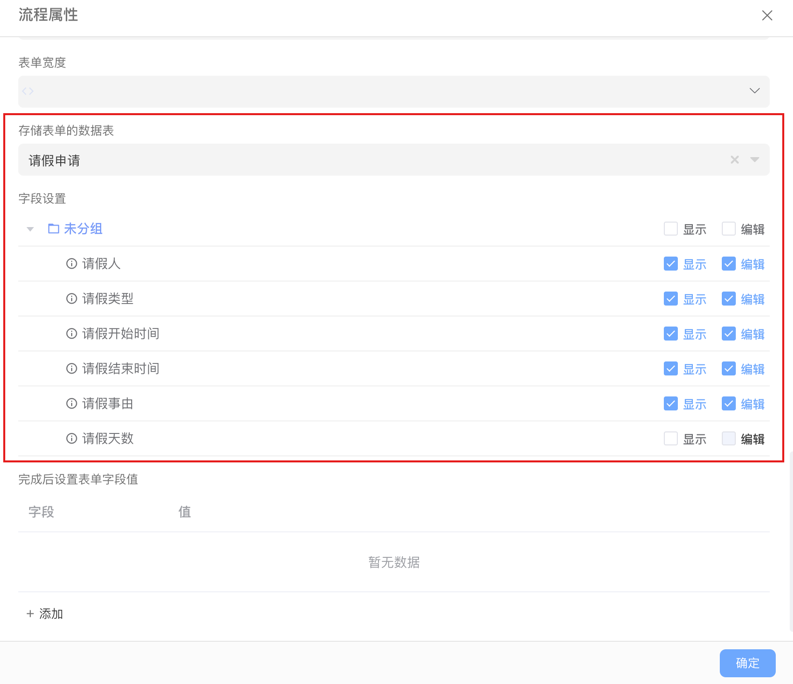

Add a startup form for the initiator to fill in leave application information. Global Settings

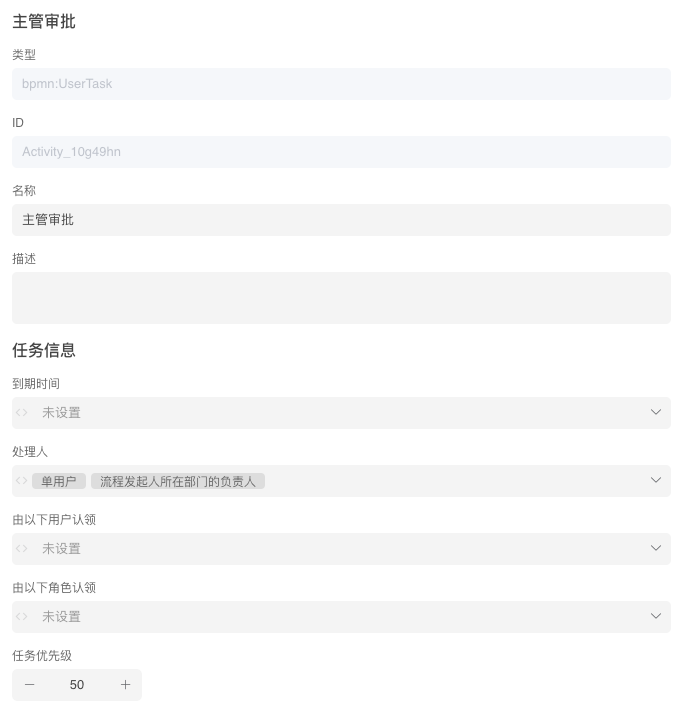

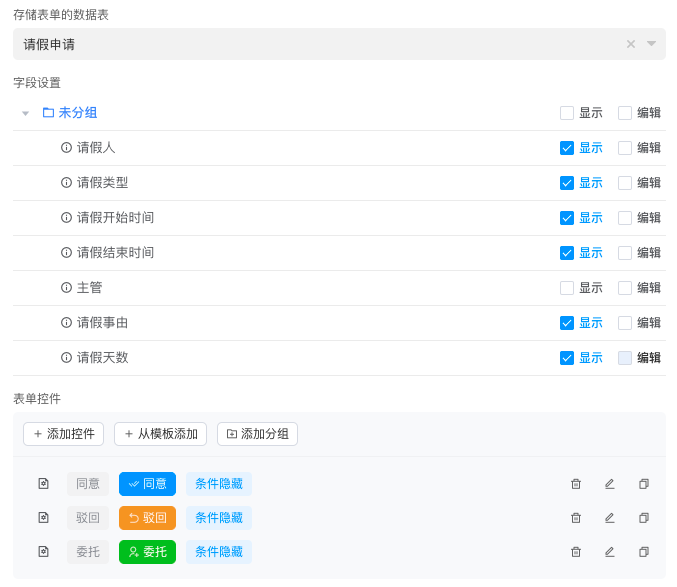

Supervisor Approval Node ​

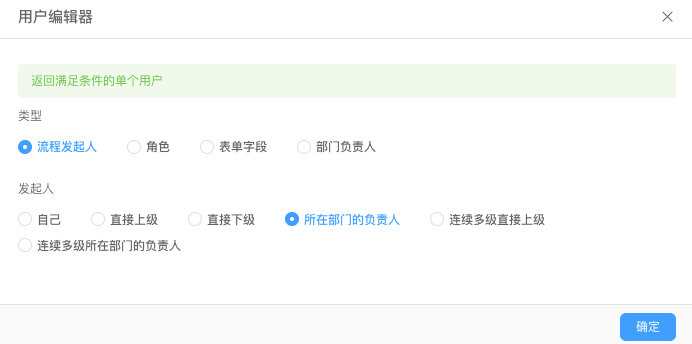

Configure the handler as supervisor role

Effect Diagram ​

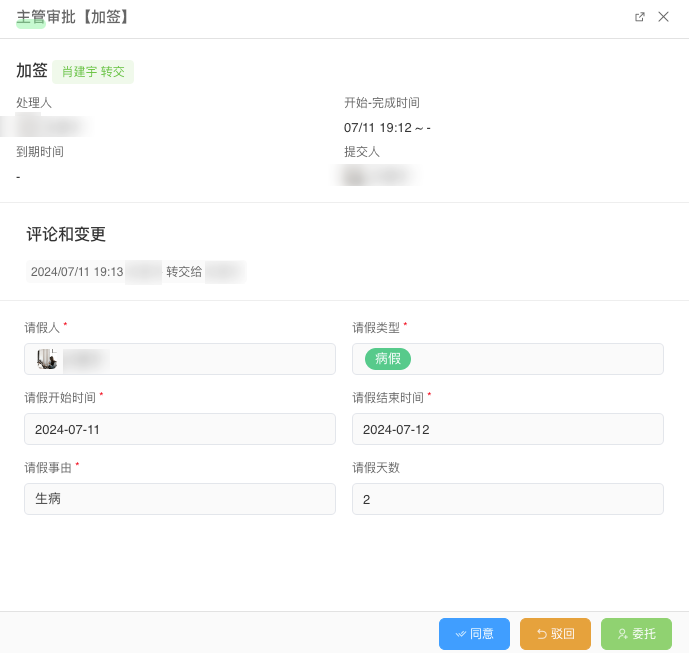

Application Form:FormSupervisor Task:Supervisor Task

Supervisor Task
